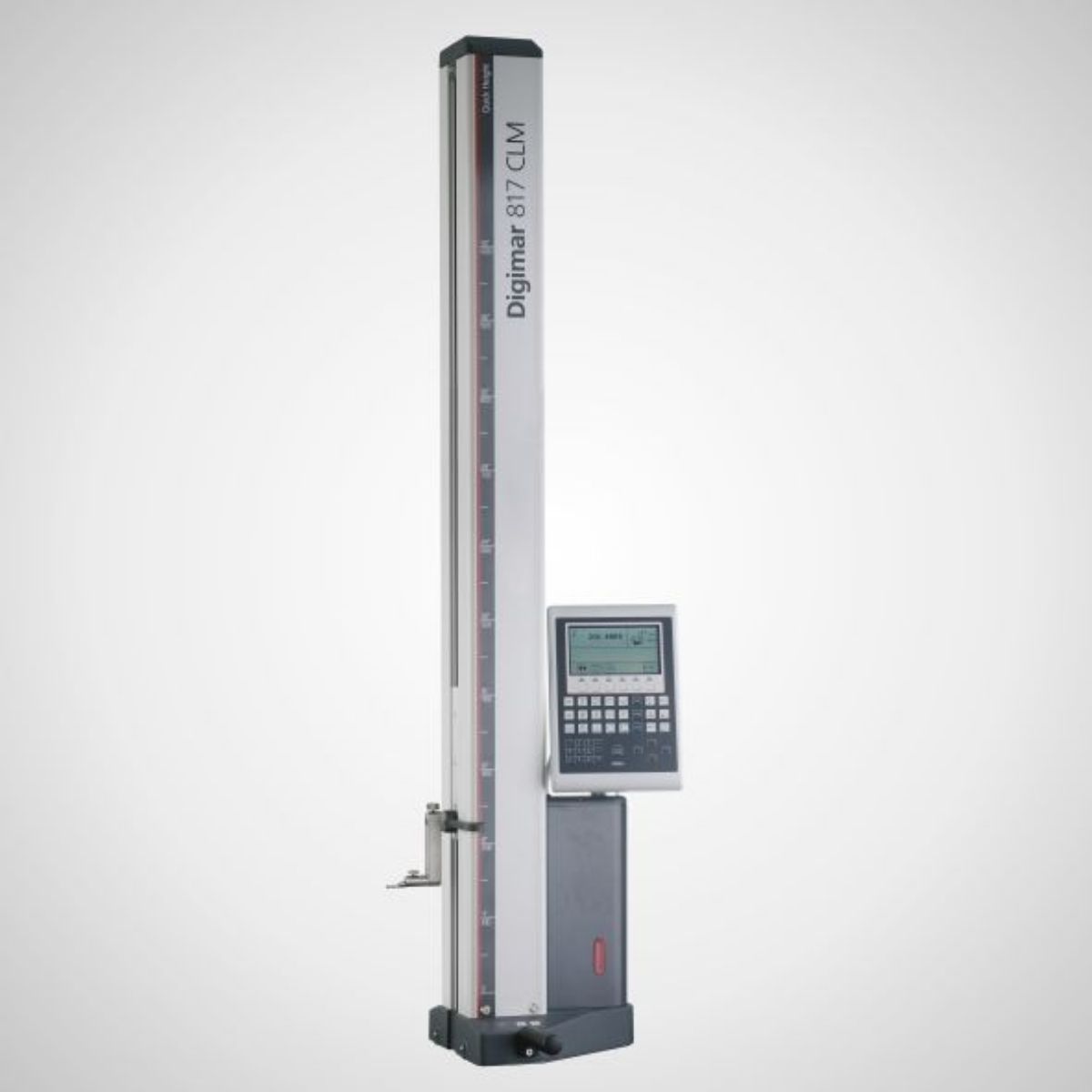

Mahr – Digimar – Height Gages

  • SINGAPORE

    DKSH Singapore Pte Ltd
    625 Lorong 4 Toa Payoh, #03-00
    319519 Singapore
    Singapore

    +65 6471 1466

    Email

  • Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head
  • Dynamic probing system enabling high repeatability
  • Air bearings system for light and smooth movement
  • Precise measuring head on stainless steel guideways
  • Motorized measuring carriage simplifies measurement runs
  • Probe constant remains after the instrument is switched off
  • Integrated rechargeable battery with a long operating time span for power source independent measurement
  • Temperature compensation with an integrated temperature sensor
  • Large and clearly defined function keys
  • Easy to read background lit graphic LCD-Display
  • Operator guidance with self-explanatory icons / pictograms
  • Operator prompts and menus are available in several languages
  • Possible to set additional zero points on a work piece
  • Additional measurement instruments with Opto RS232-interface can be connected
  • Secure the future due to software update potential
  • Automatic Stand-by switch mode
  • Selectable Auto-off function, without loss of measured values

Available Models

Technical Specifications

Measuring range mm0 – 3500 – 6000 – 1000
Measuring range inches0 – 14″0 – 24″0 – 40″
Resolution0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm0.01 mm / 0.005 mm / 0.001 mm / 0.001 mm / 0 mm
Error limit(1,8+L/600) L in mm(1,8+L/600) L in mm(1,8+L/600) L in mm
Repeatability bores1 µm1 µm1 µm
Repeatability plane0.5 µm0.5 µm0.5 µm
Perpendicularity error in µm5 µm6 µm10 µm
Measuring force (N)1.0 +/- 0.2 N1.0 +/- 0.2 N1.0 +/- 0.2 N
Product weight25 kg30 kg35 kg
Data interfaceUSB / RS232C / WirelessUSB / RS232C / WirelessUSBA9:D18 / RS232C / Wireless

Technical Specifications

Measuring range mm0 – 3500 – 600
Measuring range inches0 – 14″0 – 24″
Resolution0.01 mm / 0.001 mm0.01 mm / 0.001 mm
Error limit(2.8+L/300) L in mm(2.8+L/300) L in mm
Repeatability bores3 µm3 µm
Repeatability plane2 µm2 µm
Perpendicularity error in µm15 µm20 µm
Measuring force (N)1.0 +/- 0.2 N1.0 +/- 0.2 N
Product weight25 kg30 kg
Data interfaceOpto RS232C / USB / WirelessOpto RS232C / USB / Wireless

Technical Specifications

Measuring range mm0 – 3200 – 620
Resolution0 inch / 0.001 inch0 inch / 0.001 inch
Error limit inches.0008″.0012″
Error limit µm20 µm30 µm
Perpendicularity error in µm20 µm30 µm
Measuring force3 N3 N
Product weight6.2 kg10.5 kg
Data interfaceOpto RS232C / WirelessOpto RS232C / Wireless

Technical Specifications

Measuring range mm0 – 3200 – 620
Resolution0.001 mm / 0.01 mm0.001 mm / 0.01 mm
Error limit inches.0008″.0012″
Error limit µm20 µm30 µm
Perpendicularity error in µm20 µm30 µm
Measuring force3 N3 N
Product weight14 kg18.3 kg
Data interfaceOpto RS232C / WirelessOpto RS232C / Wireless

Technical Specifications

Measuring range mm0 – 3500 – 600
Resolution0.01 mm0.01 mm
Error limit µm40 µm50 µm
Product weight7 kg8 kg
Data interfaceOpto RS232C / Digimatic / USB / WirelessOpto RS232C / Digimatic / USB / Wireless

Key Industries

  • Aerospace
  • Automotive
  • Die & Mould
  • Energy
  • Machinery & Manufacturing
  • Railway
  • Semiconductor, Solar & Electronics
  • Shipbuilding

Brand

Mahr

Mahr offers a wide range of measuring instruments to solve your specific measuring task. Mahr is an application specialist in the field of production metrology, which solves the metrological tasks and is the contact partner for all questions related to quality. The company offers solutions for high-precision metering to the manufacturers of the synthetic fibres, elastomeres and fiber reinforced composites, their suppliers and generally for the plastics processing industry.
