Maegerle – Flat and Profile Grinding Machine

  • SINGAPORE

    DKSH Singapore Pte Ltd
    625 Lorong 4 Toa Payoh, #03-00
    319519 Singapore
    Singapore

    +65 6471 1466

    Email

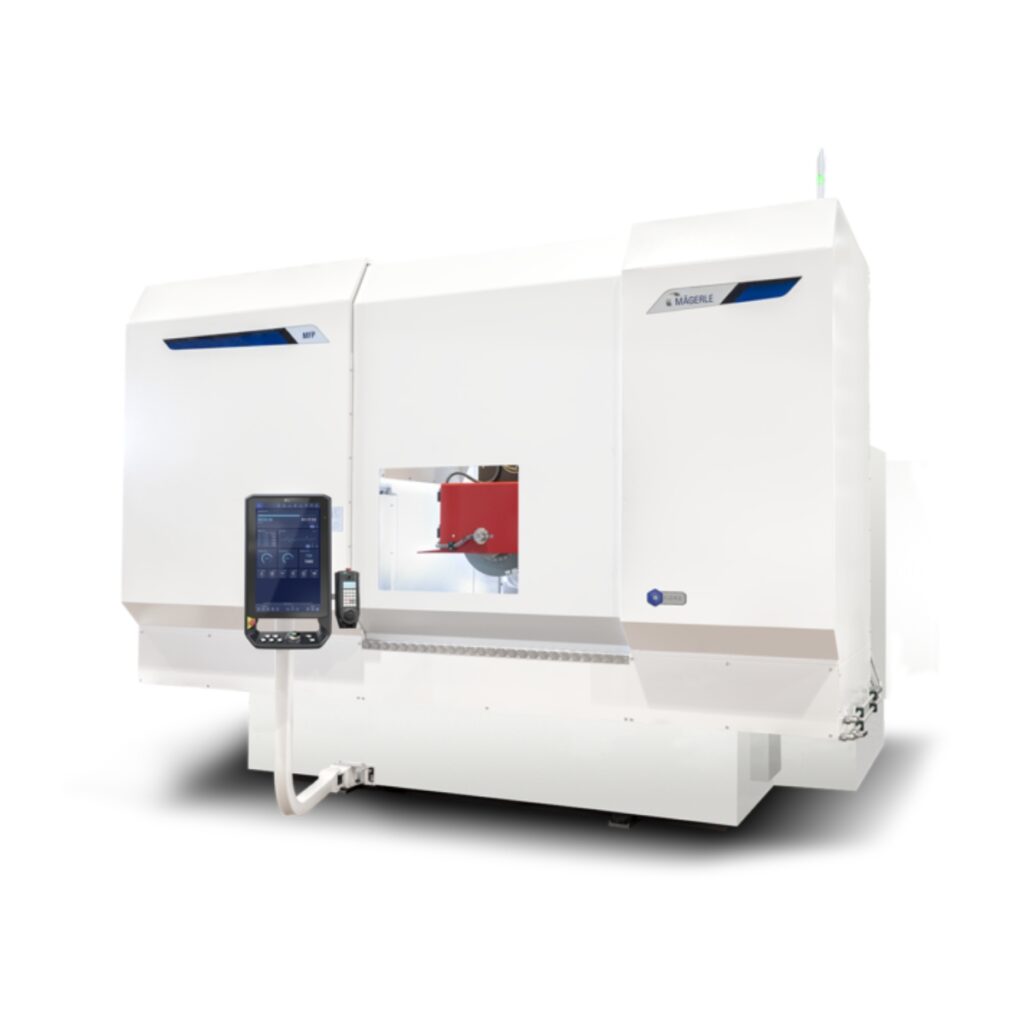

Mägerle MFP series – The long-distance machine With the MFP series, Mägerle comprehensively covers the requirements for flat and profile grinding machines. These machines specialise in creep feed grinding as well as profile and flat grinding operations using the pendulum method. They demonstrate their full performance potential in applications where workpieces must be produced in large batches and with high stock removal volumes in the customary high Mägerle precision. Thanks to their robust construction, the machines in the MFP series also master these requirements in hard 24/7 continuous operation. The Mägerle MFP series has a modular design. Table lengths and vertical strokes across a large range can be freely combined with different additional axes and special components. This flexible modular system enables diverse machine configurations, which are precisely geared to the specific user requirements.

Applications:

  • Spacer rings
  • External gear rings
  • Thread rolling dies
  • Precision steering rack
  • Edging tools
  • Steering piston
  • Cycloid gear wheels
  • Steering rack variations
  • Steering pinion

Technical Specifications

X-axis longitudinal stroke800…2600 mm
X-axis travel speed0…30000 mm/min
Y-axis vertical stroke450…750mm
Y-axis travel speed0…10000* mm/min
Z-axis transverse stroke350…900 mm
Z-axis travel speed0…10000* mm/min
V-axis profile crushing device, roll width, max.167…307 mm
Roll diameter max.160 mm
Roll drive AC drive max.6000 rpm
Grinding spindle drive – power25/50/75/115** kW
Rpm range5000 (8000) rpm
Grinding wheel peripheral speed35 m/s
– with key-operated switch switchable to50 m/s
– with additional flange monitoring switchable up to63 m/s
Grinding wheels – diameter400…600 mm
Grinding wheels – width160…300 mm
*optionally20 m/min
** max. spindle power is dependent on size

Key Industries

  • Aerospace
  • Automotive
  • Defense
  • Die & Mould
  • Education & Academics
  • Machinery & Manufacturing
  • Shipbuilding

Brand

MÄGERLE (Maegerle)

Mägerle consistently keeps the brand promise of customized grinding machines that are characterised by precision, reliability and cost effectiveness. Mägerle set the most important milestone in 1980. Its flat and profile grinding machines – now established worldwide – were built with a fully enclosed hydrostatic guide system for the first time. This ground-breaking design principle still distinguishes Mägerle’s cutting-edge technology today, and forms the unique basis for the unsurpassed results in precision, cost effectiveness, reliability and long working life.
