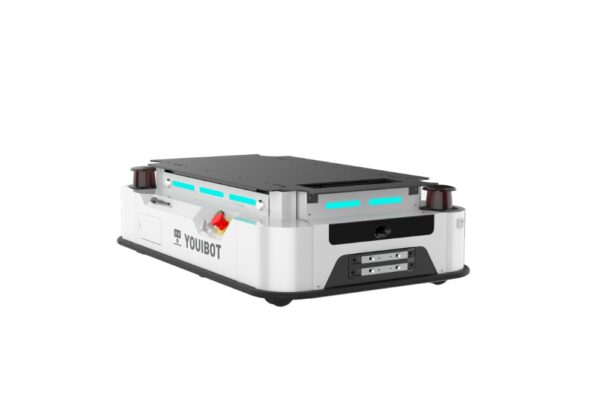

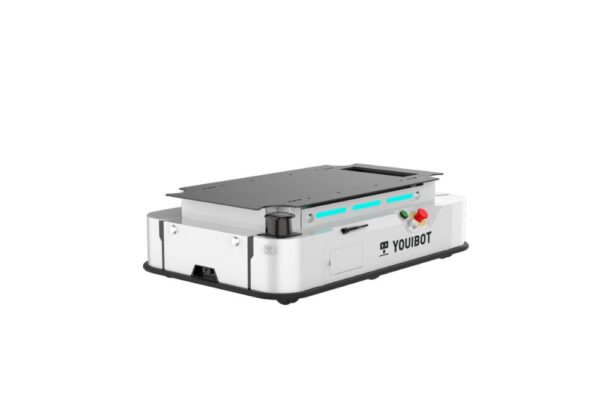

Youibot – Platform Series – P200

Versatile solution with general-purpose interfaces.

Inquire Now

Overview

Features

Specifications

Support over 10 kinds of top modules and cobot to tackle any material transport tasks in warehouses, cleanrooms, and production lines.

Technical Specifications

Design FeatureFor Integration
Run Time8h
Size1016*652*290mm
Weight180 kg
Maximum Payload200 kg
Navigation ModeLaser SLAM
Navigation AccuracyPositioning accuracy: ±10 mm; Angle accuracy: ±1°
Turning Diameter1130 mm

Key Features

  • Highly flexible integrated interface provides the possibility of multiple functions.
  • Stable and supportive integral structural design provides easy debugging and integration.
  • Fully enclosed safety design enables real-time human-robot collaboration in operation.
  • With customizable sound and light systems for customizable notification in different scenarios.
  • Concealed debugging panel improves the ease of quick troubleshooting.

Benefits

  • Multiple types of integrated interfaces: including IO signal interface; Ethernet interface; WLAN; power supply interface
  • Dual radar design meets 360° all-around plane detection
  • Meets multiple certification standards

Description

High Adaptability Interface Design

The P200 features top-panel external integration interfaces for I/O, Ethernet, WLAN, power supply, and signal lines when integrated into a superstructure. These interfaces connect the upper integrated components (IPC, PLC, battery, BMS module), allowing unified management, control, and distribution of signals and energy supply. This design ensures the P200 satisfies various inquiries over a significant area after transformation through integration.

Monolithic Structure Design

The P200 upper panel and component mounting positions are designed as an integrated structure, isolated from the power wheel and housing design. While ensuring that the core drive capability of the P200 will not be affected during maintenance or integration, it can meet the stable installation of the upper integrated structural components and the feasibility of connecting to each control key component during integration.

Multi-system Cooperative Control

P200 facilitates streamlined integration in the realm of basic AMR operating and dispatch systems. It connects with sensors, cobots, upper PLC, and other control systems during the integration process. The integrated control at the operating level alleviates the development workload for chassis interfaces with new components. Leveraging the standard P200 chassis, integration can be directly performed to meet specified functional requirements.

P200 Is a Versatile Solution Designed To Handle Complicated Material Handling Tasks in the Manufacturing Facilities

Key Industries

  • Semiconductor, Solar & Electronics
