Youibot – Lifting Series – L300

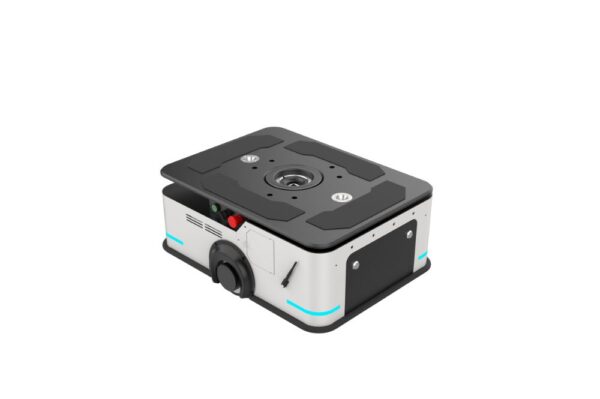

L300 is the agile, perfect option for warehouses or manufacturing facilities with narrow passageways. Carrying a maximum payload of 300 kg, the AMR is equipped with a top module that elevates at a maximum height of 60mm and rotates at 360 degrees. The YOUIFLEET dispatching system allows a fleet collaboration of up to 1,000 AMRs under the same operation area, enabling a real light-out operation.
Benefits- Lifting module raises trolleys, pallets, shelves, and more
- Secure autonomous navigation for safe and effective transport
- Meets industry compliance standards
Technical Specifications
Lifting Payload | 300kg |
Run Time | 8h |
Size | 800*619*330mm |
Navigation Logic | SLAM/QR Code |
Max. speed | 1.5 m/s No-loaded; 1.0 m/s Full-loaded |
Rated speed | 1.2 m/s No-loaded; 0.8 m/s Full-loaded |
Lift parameter | 360° rotation & lifting; Max. Elevation: 60mm |
Drive model | Two-wheel differential drive |
Key Features
Highlight
- Real-time human-robot collaboration is enabled by full enclosure security
- Custom audio and lighting for various scenarios with notifications
- Safety bumpers and humane emergency stop designs ensure safety
- An integrated debugging panel facilitates quick troubleshooting
- Stable center of gravity design guarantees goods’ safety during transportation
Description
![](https://technology-products.dksh.com.sg/wp-content/uploads/2024/03/comp_Image_TeaserListItem_Youibot_L300_010.png)
Compact but Agile AMR
The L300 is an Autonomous Mobile Robot designed to improve internal transportation efficiency in the manufacturing industry. The 30Ah battery provides at least 8 hours of uninterrupted operation, allowing for production schedules to be met between shift changes. With the L300, companies can move towards achieving Industry 4.0 and reap the benefits of advanced automation technology.
![](https://technology-products.dksh.com.sg/wp-content/uploads/2024/03/comp_Image_TeaserListItem_Youibot_L300_020.png)
Flexible Deployment for Quick Start-Up
A top-of-the-line robot, the L300 features a highly integrated control system. It can achieve a high level of accuracy of ±10mm using only SLAM navigation and ±5mm when combining SLAM and QR navigation. With the intelligent control system, small derailments can also be corrected, while the BMS battery control system monitors the battery level in real-time and automatically charges it.
![](https://technology-products.dksh.com.sg/wp-content/uploads/2024/03/comp_Image_TeaserListItem_Youibot_L300_030.png)

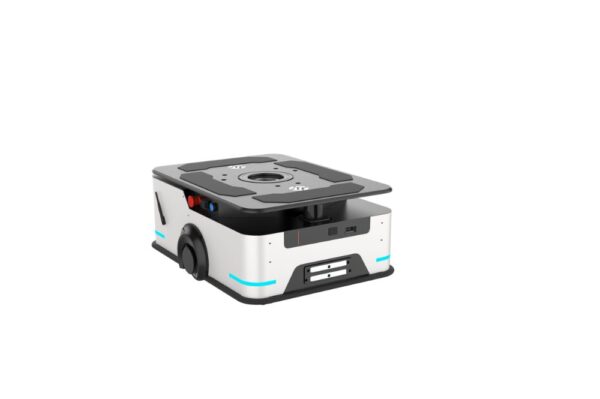

Compact but Powerful Rotating Lifting Module
The L300 drive chassis remains the same size after the rotary lifting module is integrated. The integrated control system maintains carrier orientation and posture while enabling smooth turns and precise placement in tight spaces. The module also includes a simple and reliable pin design that ensures load stability and prevents falls, as well as a rubber pad on the upper layer that reduces vibration and minimizes material damage.
L300, the Agile, Perfect Option for Warehouses or Manufacturing Facilities
Key Industries
- Semiconductor, Solar & Electronics
Brand
YOUIBOT Robotics is a world-leading mobile robot solution provider. We are proud of our Fusion SLAM navigation mobile robots and intuitive software products. Youibot provides integrated turnkey solutions for clients across automotive, FMCG, consumer electronics, semiconductors and warehousing. We build mobile robots specifically for reliable automation solutions that drive business efficiency and growth. We’re trusted by over 250 clients and over 40 local partners across APAC, Europe, America and MENA. We’ve deployed 5000+ AMR for industry leaders such as Michelin, Meta, DHL, TMSC, etc.
