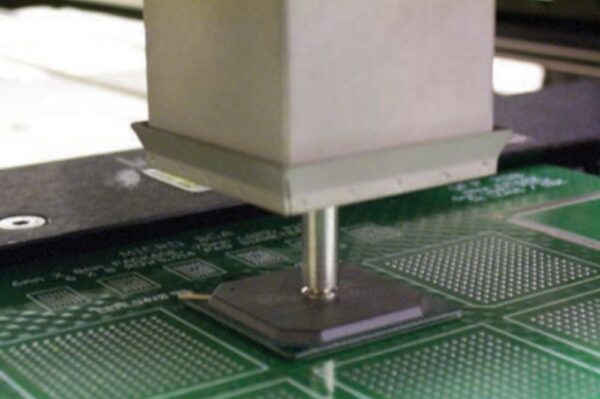

VJ Electronix – Summit 750i

The cost-effective and high performance solution to your rework needs. The Summit 750i is capable of handling boards up to 18″x22” and components as small as 0201.

Inquiry Now

Overview

Features

Specifications

Built with easy-to-use 1-2-3-GO software, operation of this rework system is simple and intuitive. Efficient convection heating provides high thermal throughput, uniformity, and a repeatable rework process. Proprietary software provides product traceability, profile analysis, and sharing of profiles between VJE systems.

Technical Specification

Placement0.002” (50µ) mean + 3o
Top Heater1.6kW Focused Convection
Bottom Heater4.0kW Convection Plenum
Field of View2.0” (50mm) Square
Max. Board Size18”X22” (455mm X 560mm)
Min. Component Size0.100” (2.5mm)
ComplianceCE mark
For further details, please refer to enclosed brochure.

Key Features

  • Easy-To-Use Auto Profiling Software
  • Simple Component-to-Site Alignment
  • Repeatable Thermal Performance
  • MES Interface
  • Available Tooling for Any Surface Mount Component

Key Industries

  • Semiconductor, Solar & Electronics
