Sopat – Microscope Probe – MM-Probe

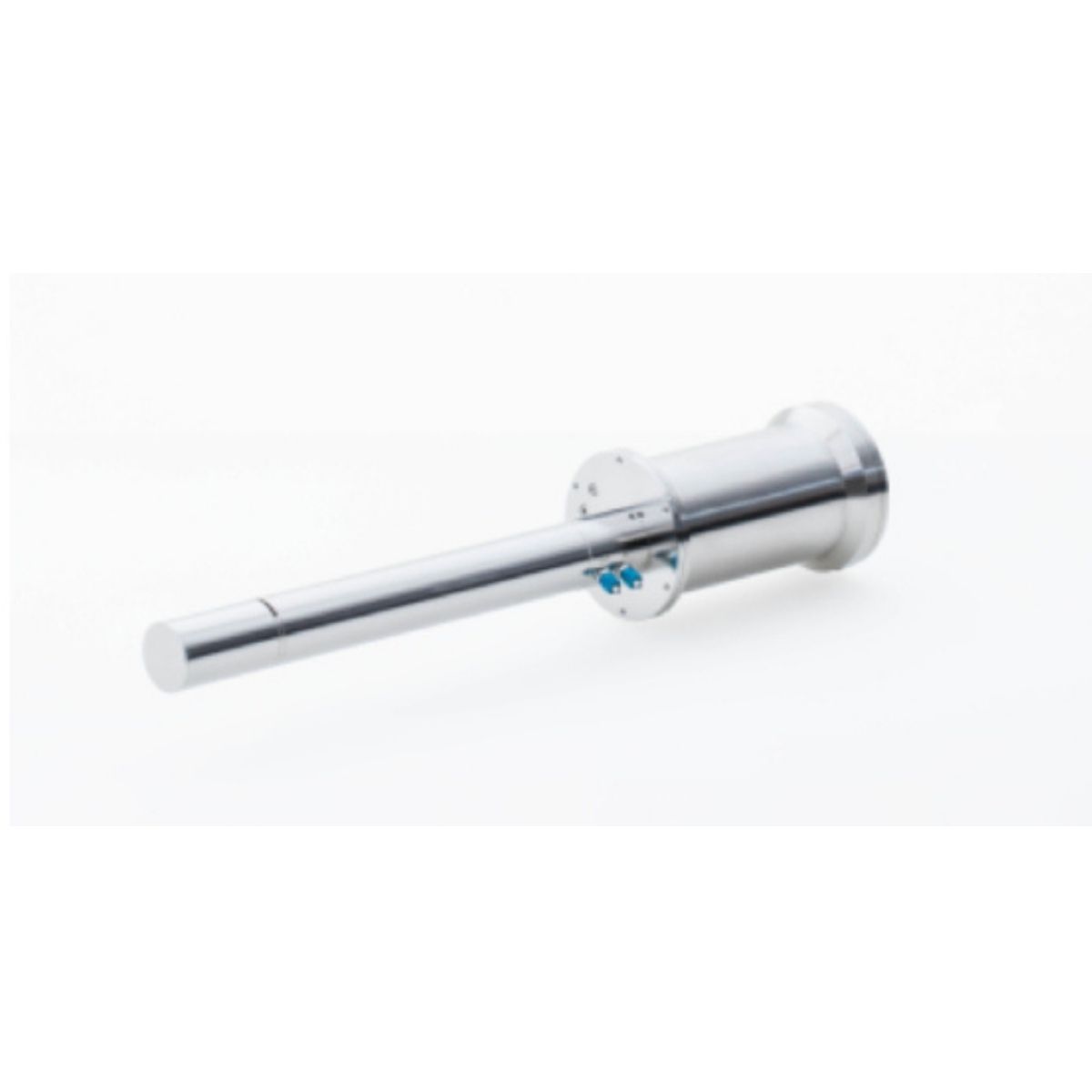

The SOPAT MM-Probe is a microscope probe with high magnification. It is characterized by its high resolution and is especially suited to characterizing biological systems (Yeast cells, bacteria, algae, water purification, etc.) as well as fine emulsions with drop sizes of 1 µm and larger.
Description
The SOPAT MM-Probe is a high-resolution microscope probe ideal for particle analysis in biological systems, emulsions, and food products. It is versatile, offering precise measurements for diverse applications in various industries.
Key Features
- Measures particles from 0.9 µm to 170 µm with high resolution.
- Designed for diverse applications in biopharmaceuticals, food, and cosmetics.
- Offers manual focus with a 5 MP resolution at a 15 Hz picture rate.
Technical Specifications
| Measurement Range [μm] | 0.9 – 170 | |
| Field View [mm] | 0.385 | |
|---|---|---|
| Tube Length [mm] | 270 | |
| Tube Diameter [mm] | 24.5 | |
| Pressure Range [bar] | 0.1 – 10 | |
| Probe Temperature Range [°C] | -10 to 250 | |
| Periphery Temperature Range [°C] | -10 to 40 | |
| pH Level | 0 – 14 | |
| Probe Window Material | Sapphire glass | |
| Probe Tube Material* | 1.4404 | |
| Probe Housing Material | 1.4404 | |
| Weight (without cable) [kg] | 7 | |
| Focus | Manual | |
| Picture Rate [Hz] | 15 | |
| Picture Resolution [MP] | 5 | |
| Power Input [VA] | 140 | |
| Certifications | CE, IP65, CIP/SIP | |
| Special production with the following materials is also available: 1.4401, 2.4602 (Hastelloy C22), Titanium | ||
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Pharmaceutical
Additional information
| Applications | Physical characterization |
|---|---|
| Markets | Singapore |
| Solutions | Particle characterization |
