Top-end solution for customers looking for both high quality cleaning result and high throughput with focus on data management and automation. This machine can provide maximum data output with minimum human interaction.



Key Features

  • Application: High Density & Standard SMD Assemblies​
  • Capacity: High Volume​
  • Contamination Solubility: Easy to Hard

Technical Specification

Machine dimension (WxLxH)1900 x 1600 x 2100 mm
Weight (without liquid)950 kg
Machine noisinessLA < 70 dB
Power supply voltage3x 400/230 V, 50Hz
Power input19,1 kVA
For further details, please refer to enclosed brochure.

Key Features

Handling

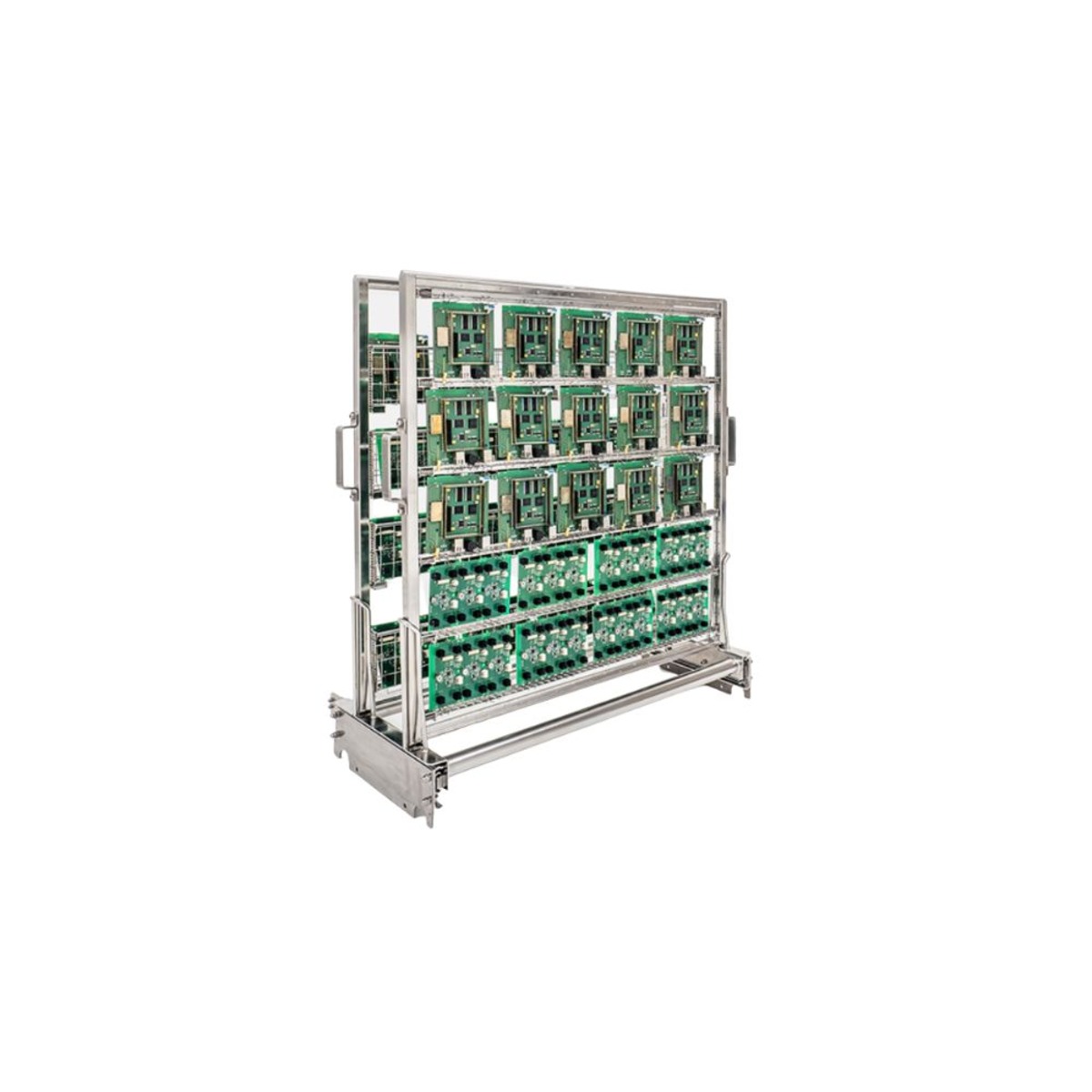

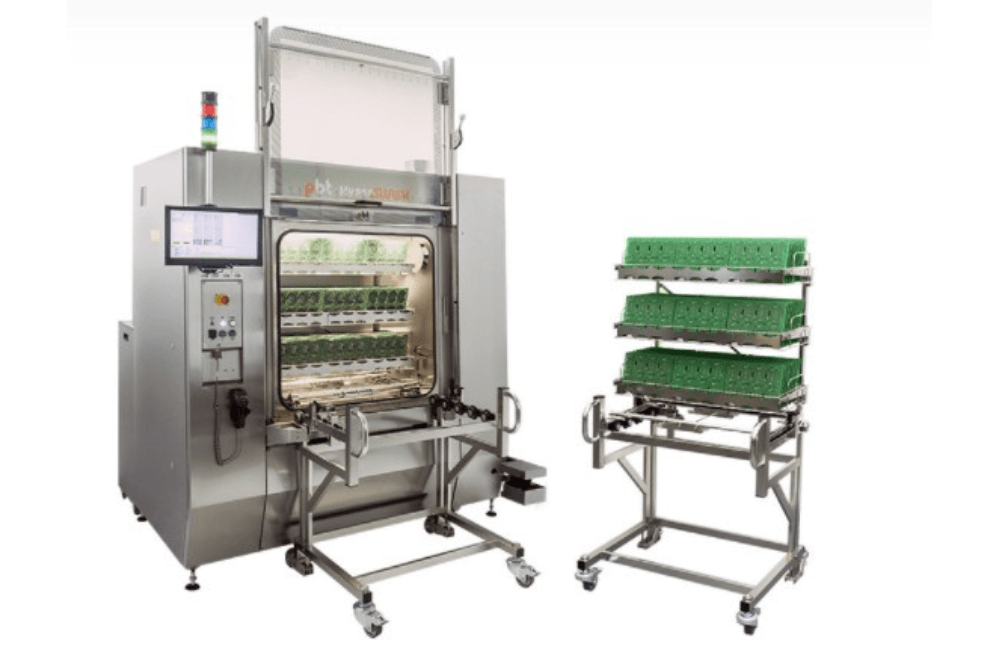

Handling with the parts to clean is simple and safe. PCBAs are reloaded on the puscart while the machine is cleaning another batch.​ This eliminates downtime and provides comfortable time for reload. Operators do not need to lift and carry frames or baskets between reloading place and the machine.

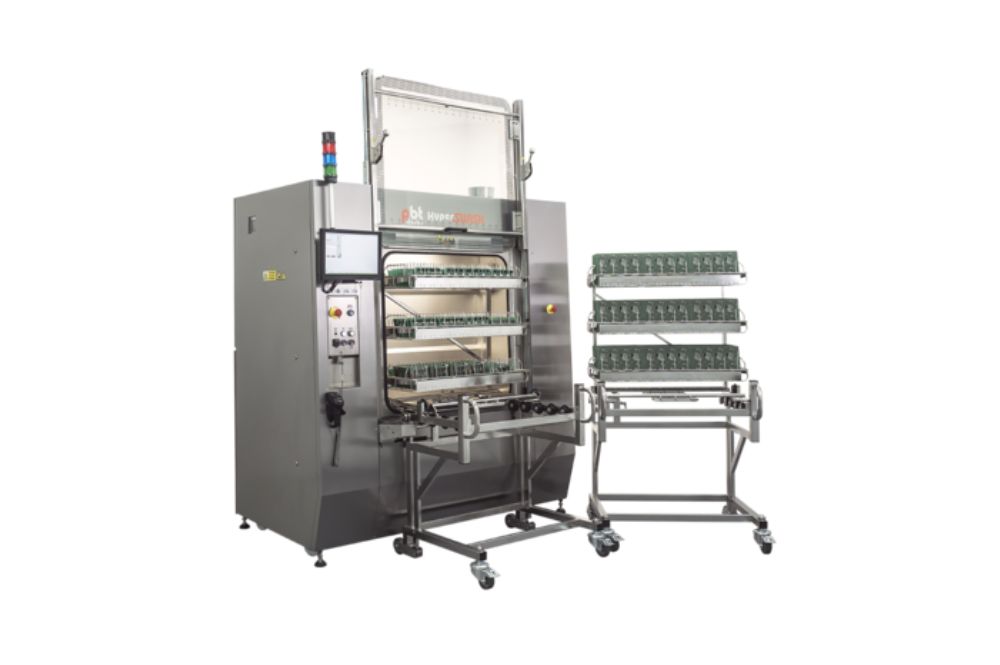

HyperSWASH III Manual

Operator loads pushcart manualy into the chamber. Optimal cost effective solution for the typical SMT productions.

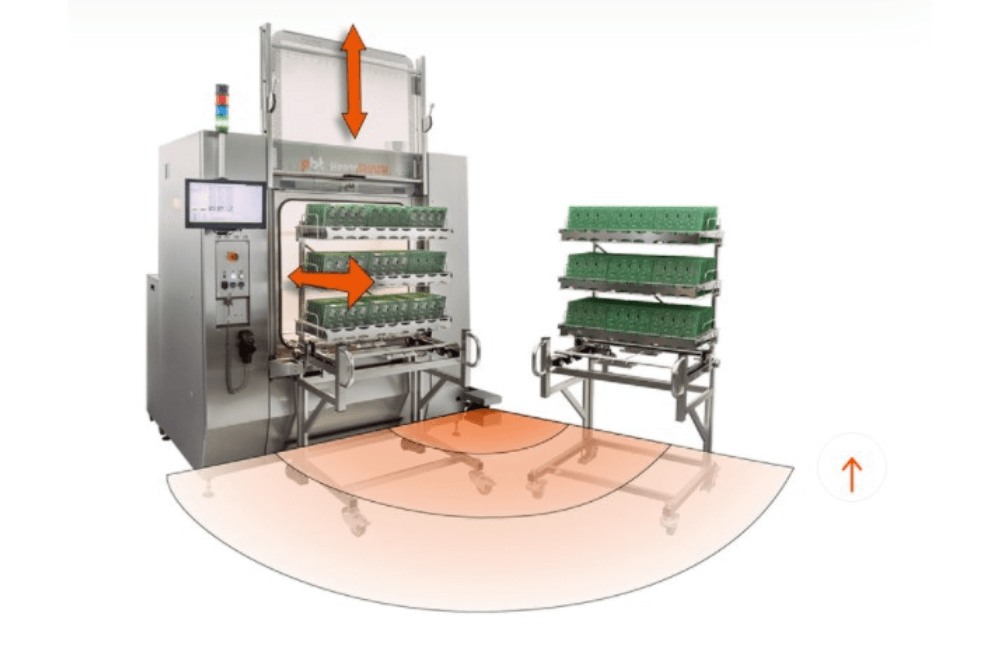

HyperSWASH III Auto

HyperSWASH loads batch from the pushcart automatically into the chamber. Top solution for fully automated high volume cleaning production includes complete human-machine safety system.

Cleaning Technology

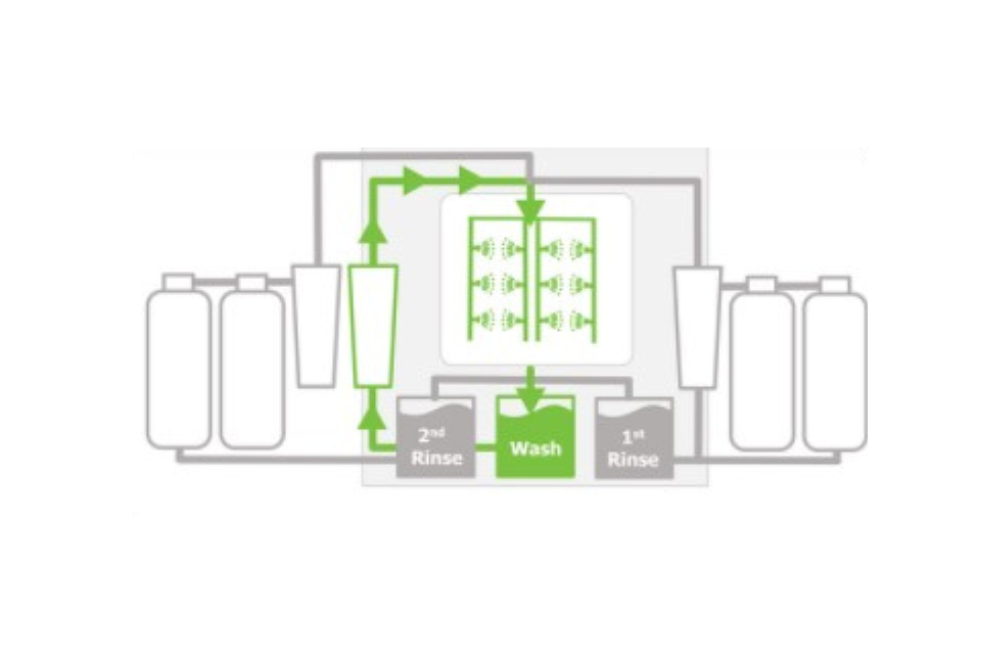

Cleaning quality requires perfect filtration and minimal cross contamination.  Every PBT cleaning machine uses separated closed loop with dedicated pump and filtration system for each individual process step.

Wash

Machine washes parts by linear spray system with the water based cleaning agent in a fully closed loop through complete mechanical filtration.

Chemical Stop

Machine performs short initial pre-rinse with the ready DI-water, pumps it out, and refills the tank with the external DI-Water. Optimal setup for cost/quality balance in high volume cleaning.

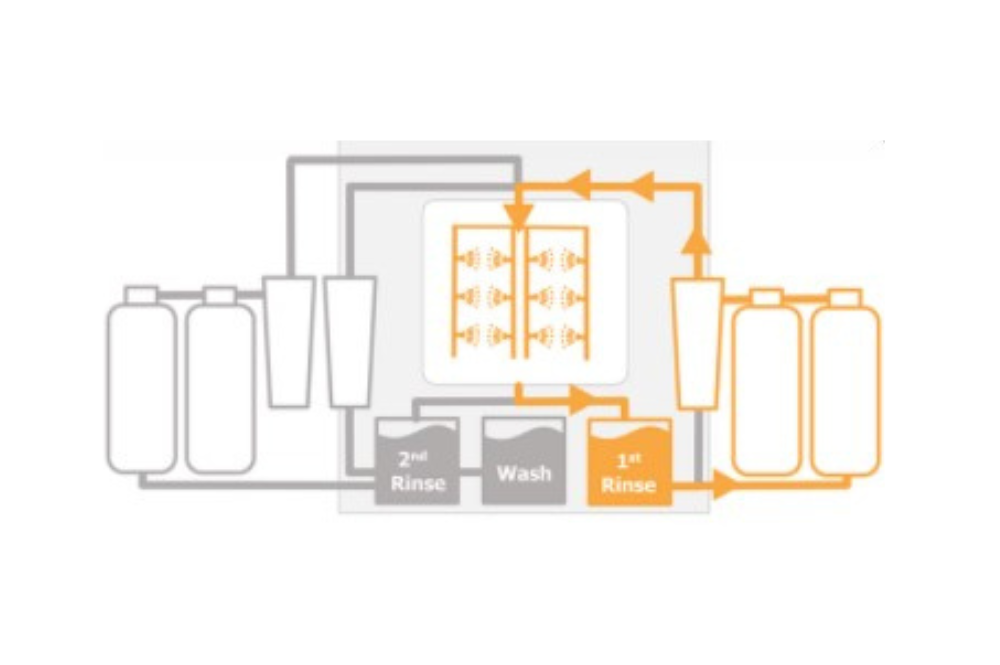

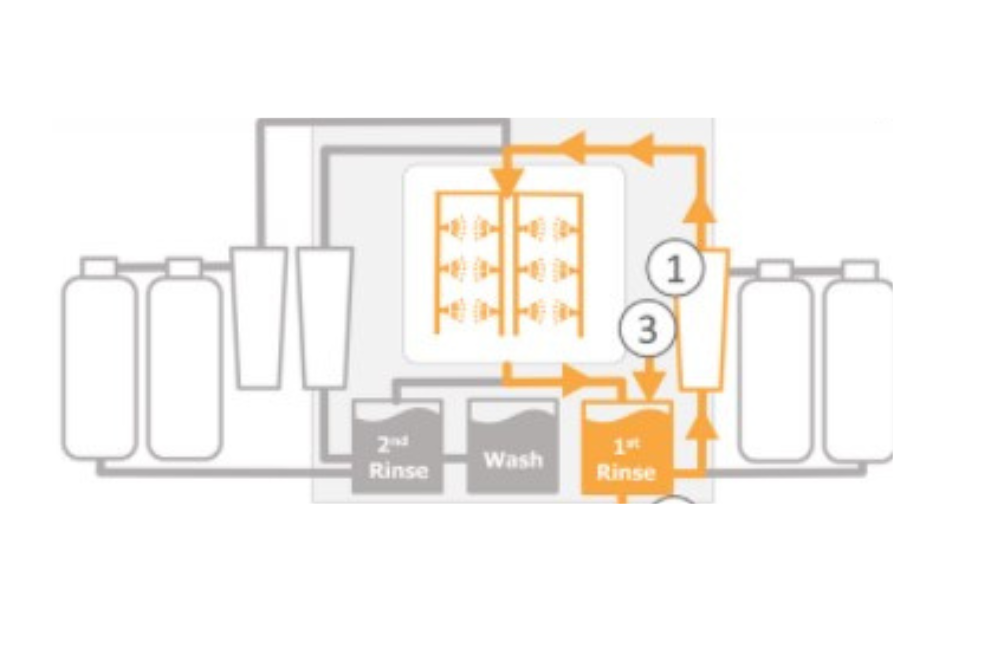

First Rinse

Machine performs first rinse down to required conductivity level using integrated 39L carbon and mixbed filters.

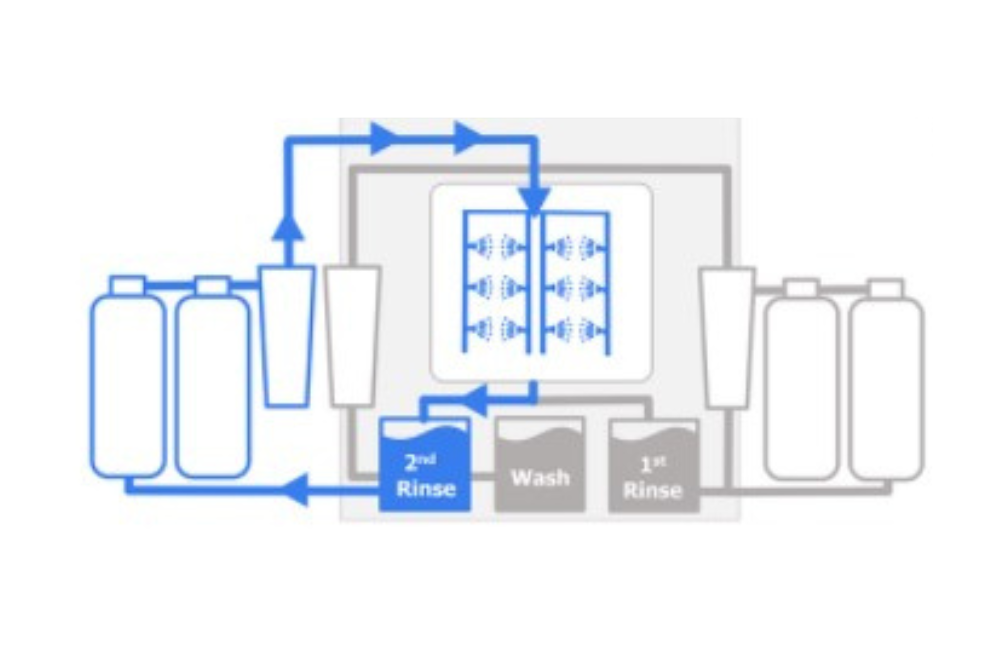

Second Rinse

Machine performs second rinse with high purity deionized water down to the required conductivity. It reclaims water continuously through integrated 39L carbon and mixbed filters.

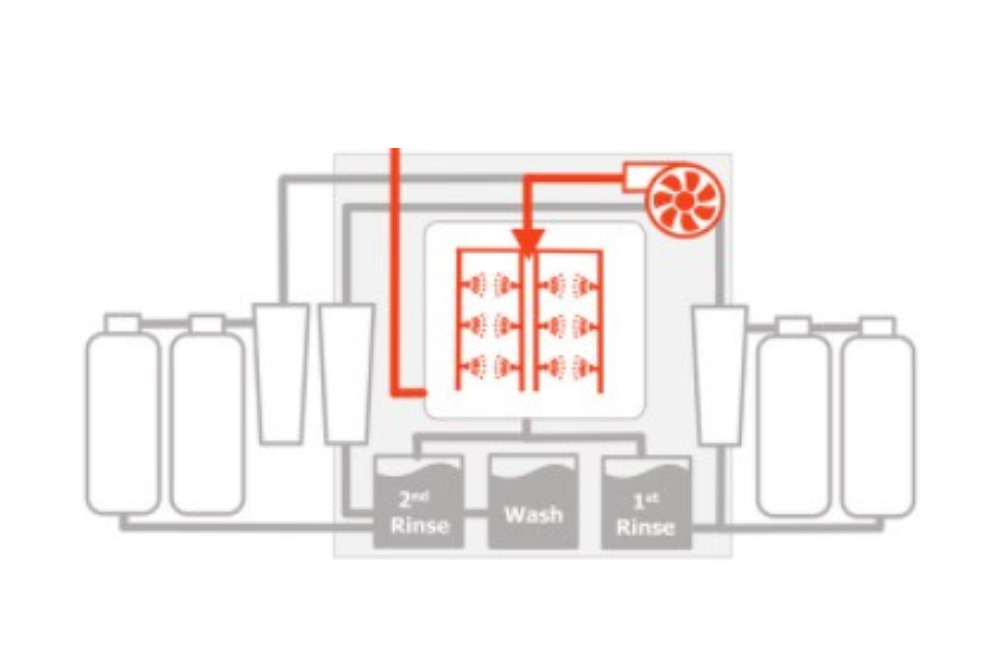

Dry

Machine dries parts by linear hot air knife with partical filtration intake.

Capacity

HyperSWASH can be easily adjusted for cleaning any size and shape of parts thanks to quickly exchangeable clamping and nozzles system.

Combo III Set

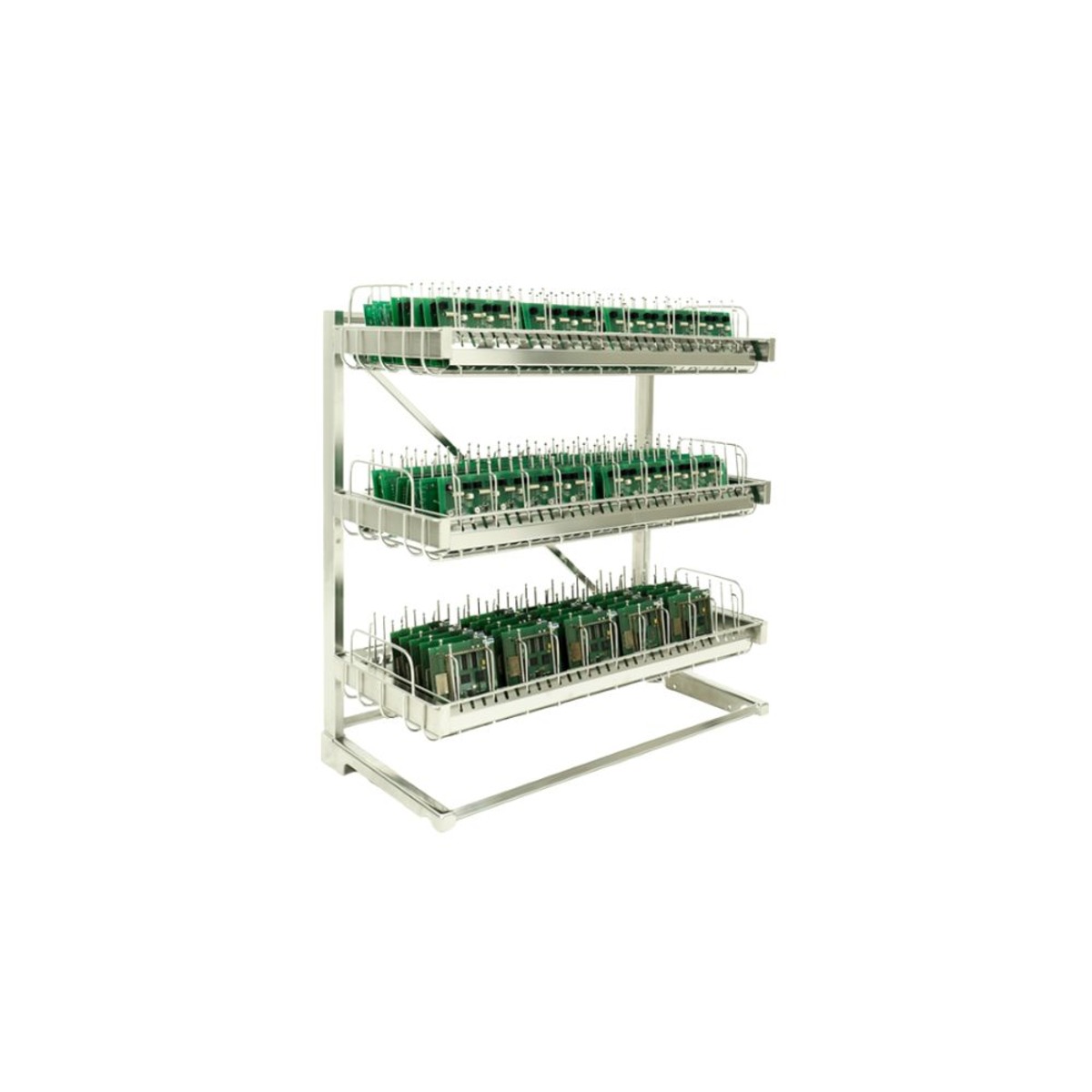

For high volume cleaning of small-size PCBAs or mechanical parts in baskets.

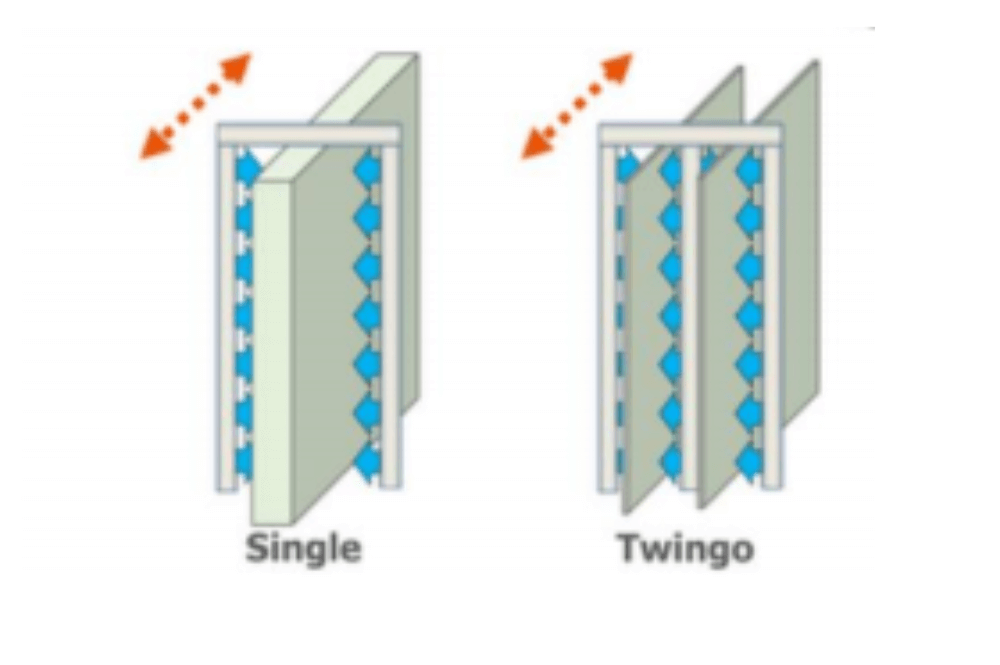

Twingo Set

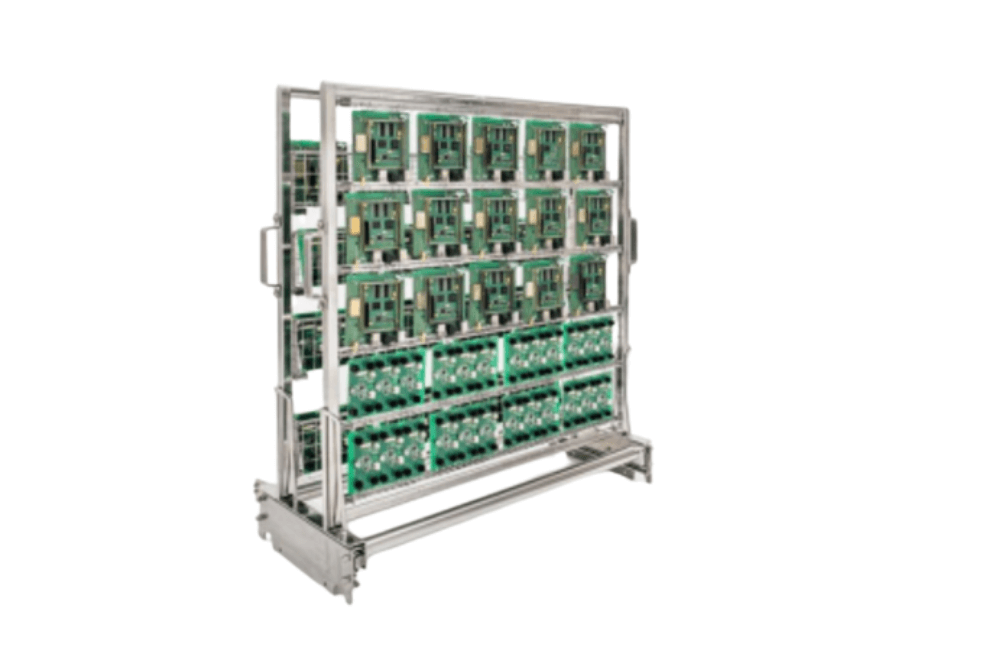

For precise cleaning of large PCBAs. Excells in removing very hard residues from low standoff components.

Process Control

Cleaning process is sensitive to many variables.

High Performance Cleaning

Perfect result of PCBA cleaning requires short but powerful spray technology and rapid but thorough drying.

Linear Spray

Linear motion provides the same reproducable cleaning results for every position of the part to clean in the chamber. Special spray nozzles selected for the best pressure-flow performance ratio.

Linear Air Knife

Air Knife removes droplets and transfers heat directly to the parts, which significantly accelerates drying. In many applications can be used as efiicient chemical isolation between wash and rinse.

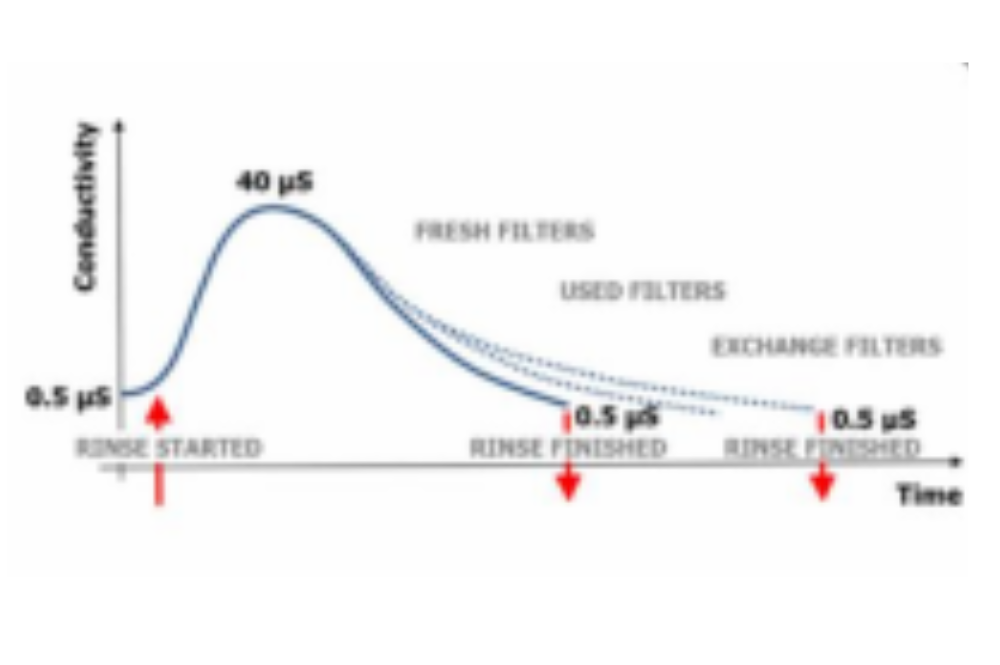

Adaptive Rinse Control

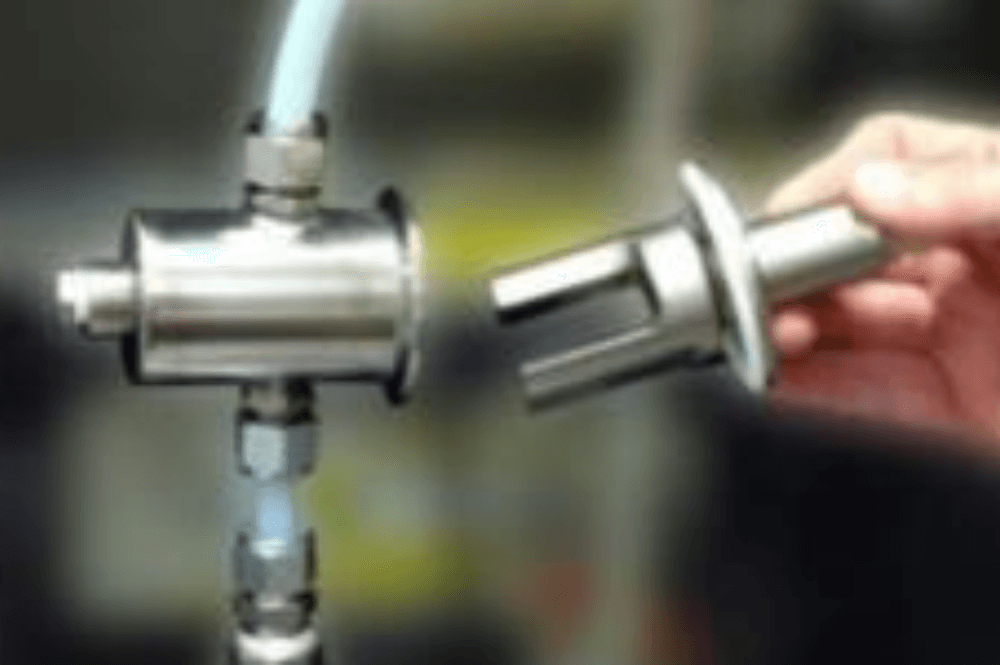

The rinse water conductivity is monitored by PBT Works conductivity sensor. Machine automatically adjust rinse time according to water quality values.

Liquid p-Q Monitoring

The pressure and flow on the spray nozzles are continuously monitored by the control system. Values out of range typically indicates mechanical filter to be exchanged, or nozzles to be reviewed.

Wash Concentration Control

Water based cleaning agents are mixtures of organic concentrate and deionized water. Optimal chemistry and its concentration is selected by PBT Glass test and confirmed by real PCBA sample test. Then, PBT machines have several options to automatically monitor or/and control concentration of the washing liquid concentration in a real time.​

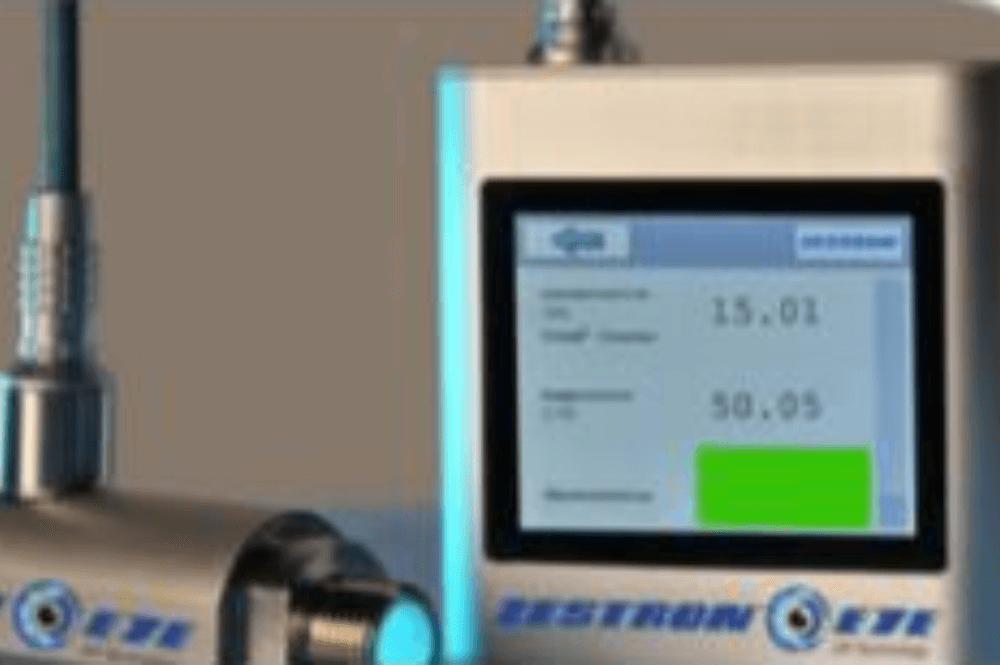

Zestron EYE

Online real-time concentration measurement system enables precise measurement of the concentration of Zestron cleaning agents in washing loop irrespective of flux loading. The measuring system is fully integrated into the control software.

Kyzen ANALYST

Monitors and analyzes washing liguid concentration of most cleaning agent brands in real-time. Calibrated for many Kyzen products as well as others. The measuring system is fully integrated into the control software.

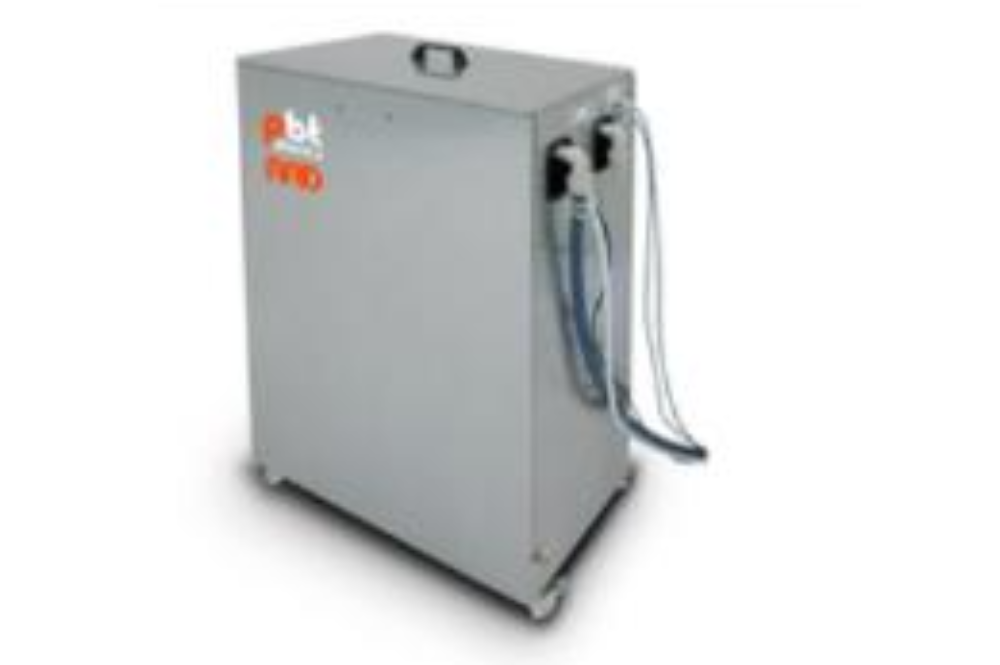

Integrated Adaptive Dosing

Total solution for wash loop. Complete concentration and level control of the wash bath. Utilizes ZESTRON® EYE or KYZEN ANALYST™ measuring system and PBT dosing-mixing unit.

Programming and Data Capture

Pefect cleaning result requires detailed programing, quick visual and parametric evaluation of the entire process.​

Intuitive Programming

HMI is PC controlled for easy programming and display of all process parameters. Each process step may have up to five sub steps for more precise setting on challenging cleaning tasks.

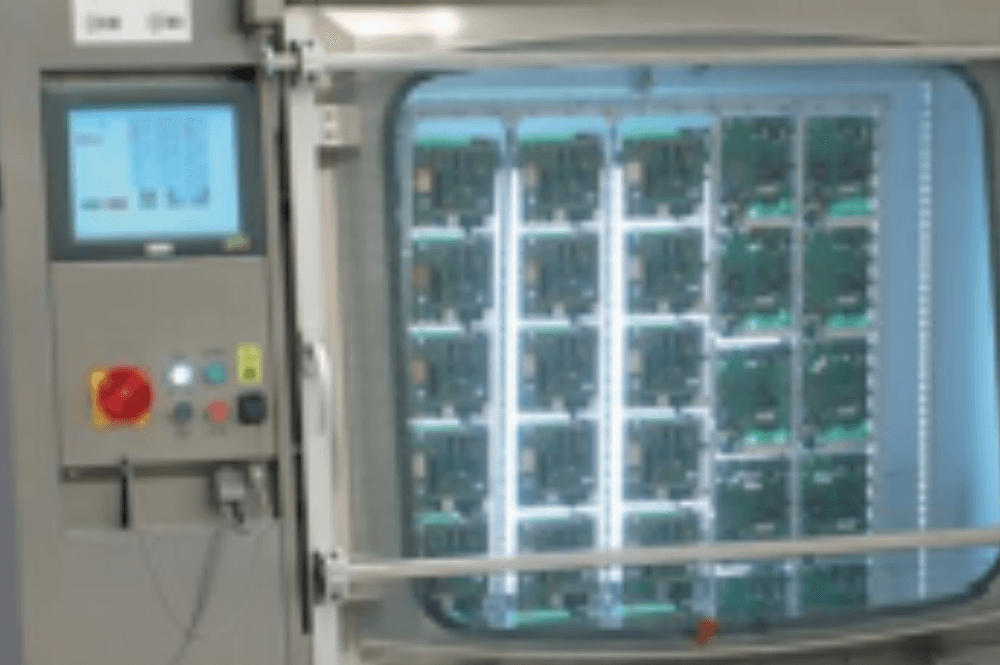

Illuminated Chamber

Programming, monitoring and optimizing the cleaning process are easy due to big glass door and illuminated chamber.

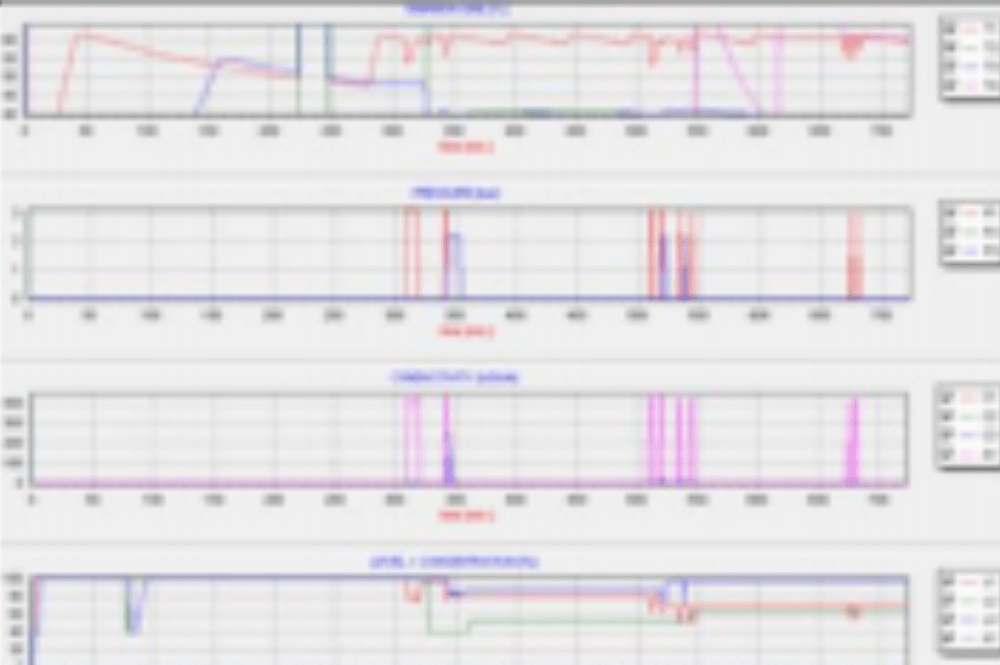

Process Parameters Traceability

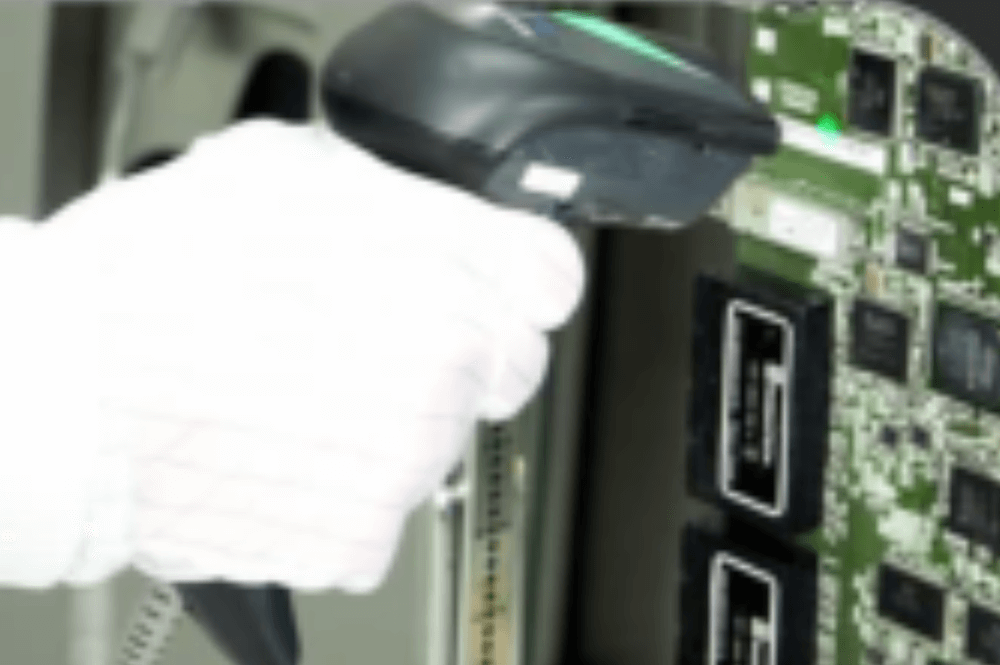

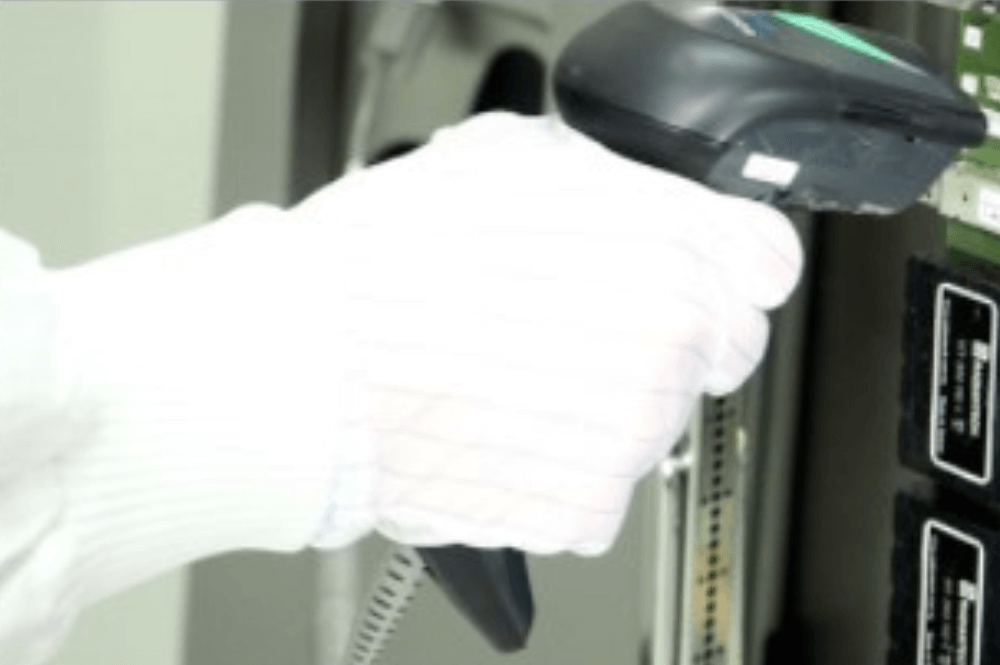

Traceability file contains all set to real process parameters and messages. Handheld 2D/barcode reader can be used for product assignment to the Traceability file and for automatic cleaning program selection.​

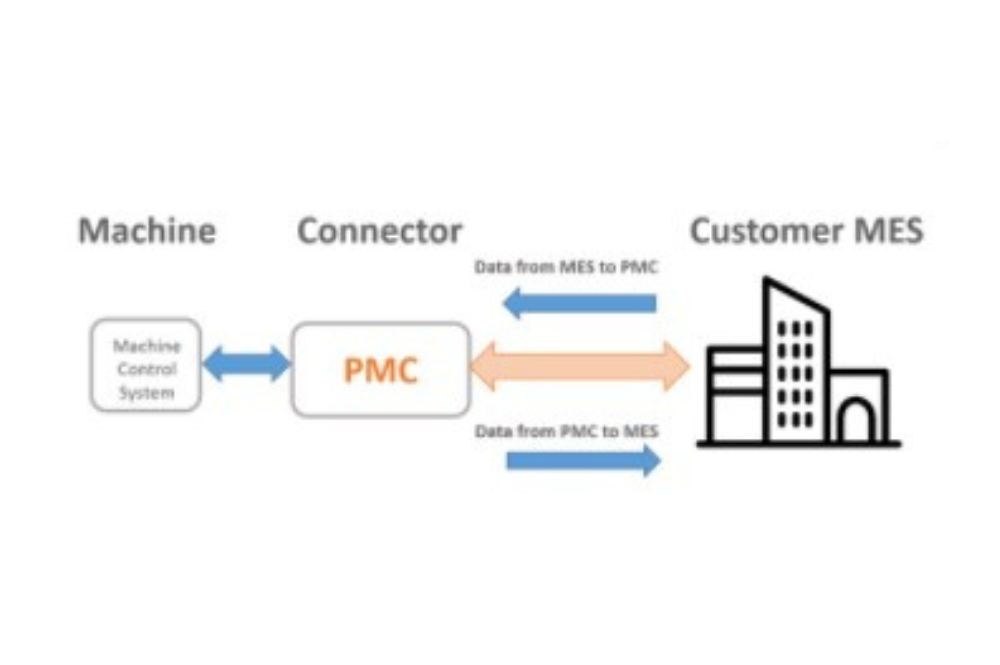

MES Connectivity

PBT works provides integration servicies for connectivty of our cleaning machines to customers MES.​

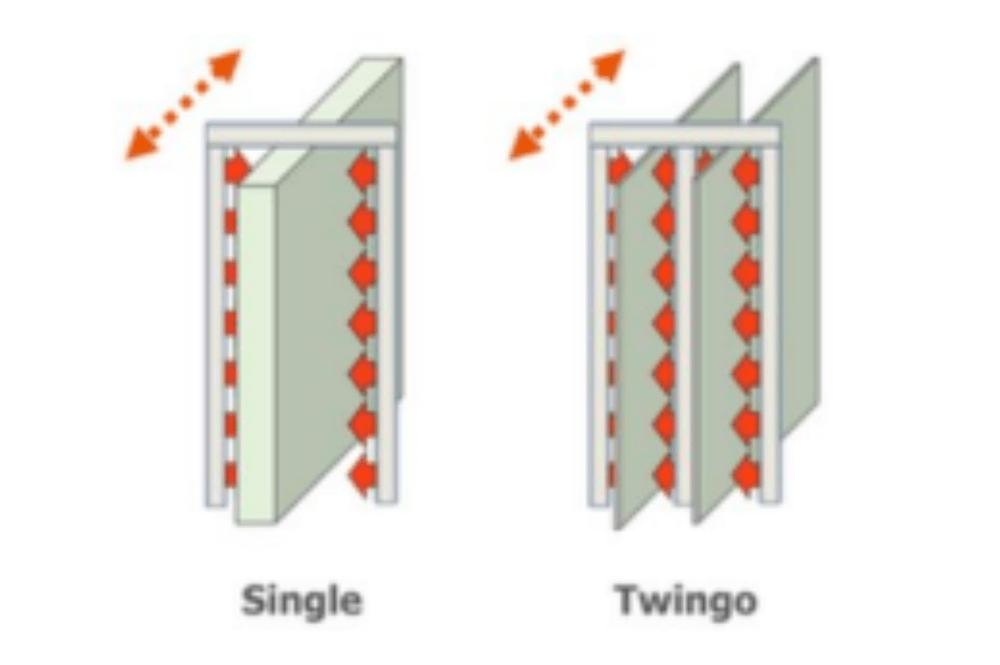

Clamping Twingo Clamping

Requires usage of basic frame. Most efficient positioning for PCBA claeaning.

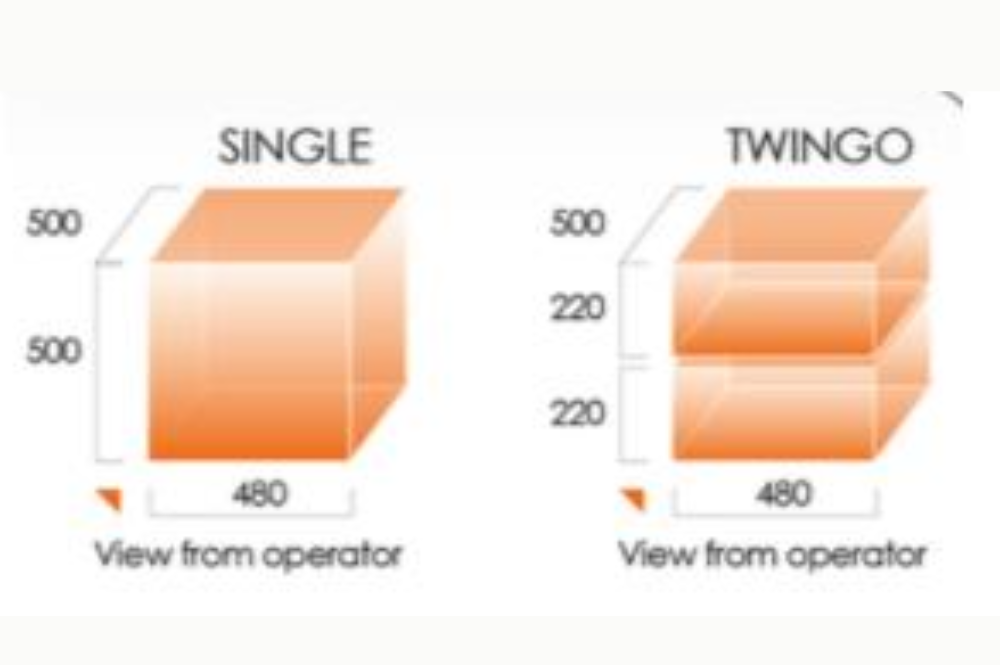

Usable Space

Maximal usable space for cleaned parts including specifically selected clamping.

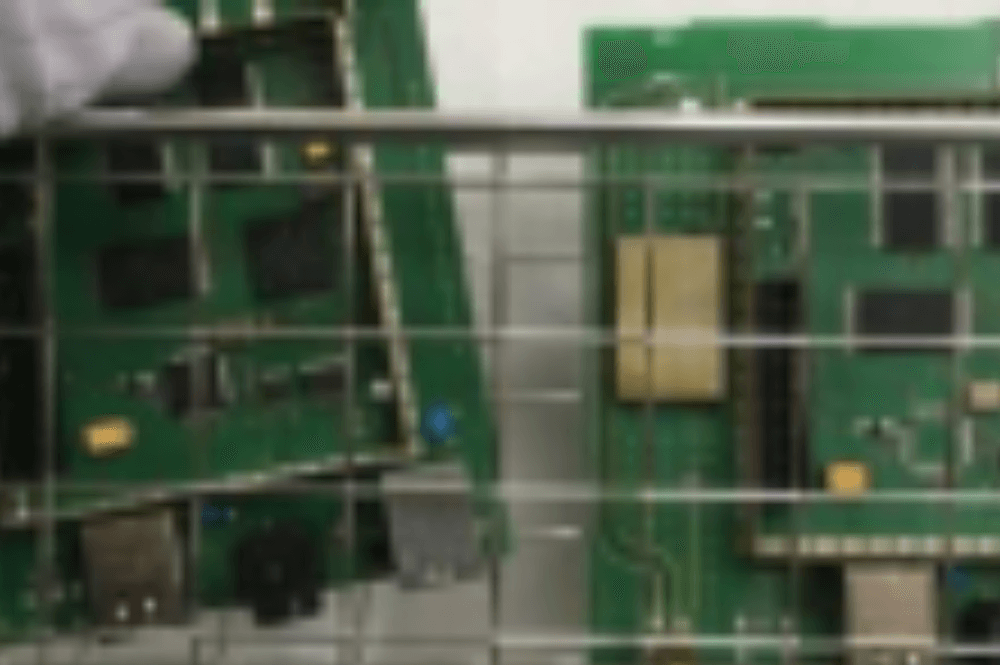

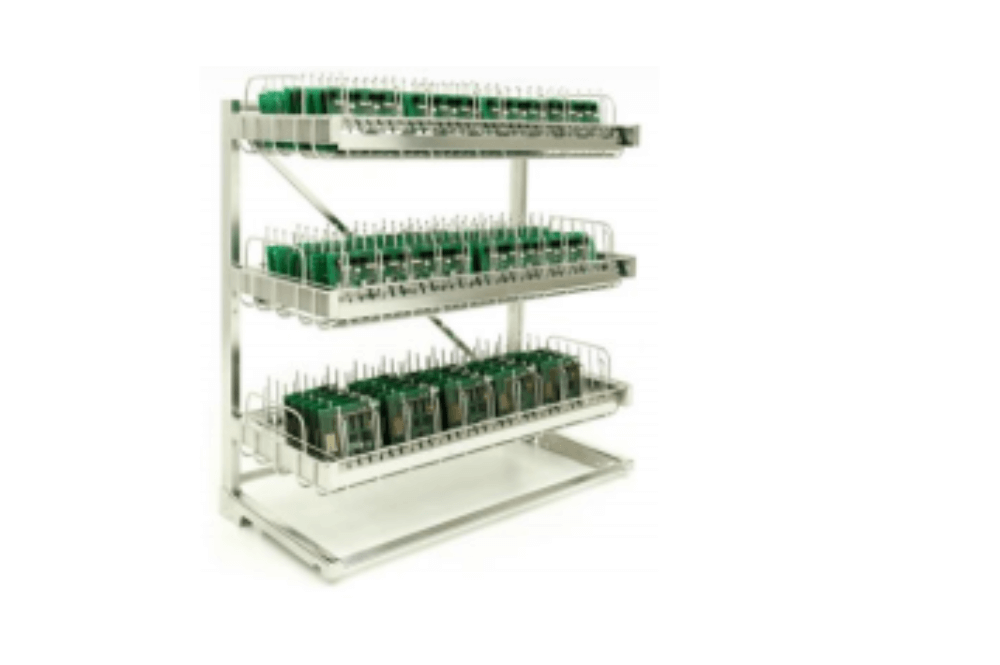

PCBA Basket Twingo

Various sizes of precise welded baskets. Basic positioning solution for any part to clean.

PCBA Slide-In Slots

Special plastice slide-in slots for quick reloding. Perfect for high volume cleaning of the same sized PCBAs.

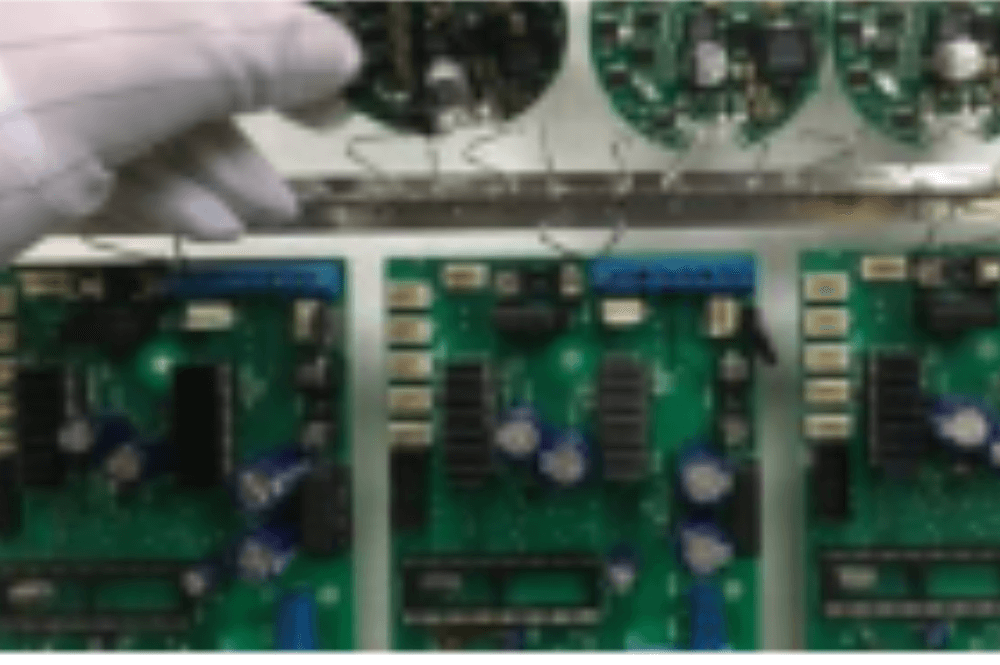

PCBA Horizontal Bars with Springs

Special springs for clamping PCBAs with perfectly balanced grip force.

HyperSWASH III Manual Combo & Twingo

Key Industries

  • Semiconductor, Solar & Electronics

test block for Laos
