  • NTA In-line Workstation Brochure


The NTA In-line Workstation is used to link between SMD machines or board handling units. It also allows manual assembly work to be carried out.

Key Features

  • 4.3” touchscreen panel
  • Modular design
  • Stability enhanced by ‘robust design’
  • Laser carved stainless steel side guides for superior quality and durability
  • PCB inspection mode provided
  • Servo motor controlled width adjustment
  • Different lengths available upon request
  • Multi-zone concept available upon request
  • Equipped with lighting features, single layer part tray and foot rest
  • Equipped with ESD scallop table and ESD bracelet connection
  • Variable speed control
  • Patented (SG Patent No.: 91261)
  • Programmable product setting
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Technical Specifications

Conveyor ConceptBelt
Conveyor Speed0.5 – 14 m/min. or specify
Conveyor Length1000 mm or specify
Power Source100, 230VAC 1Ph
Power Consumption200VA max.
For further details, please refer to enclosed brochure.

Available Models

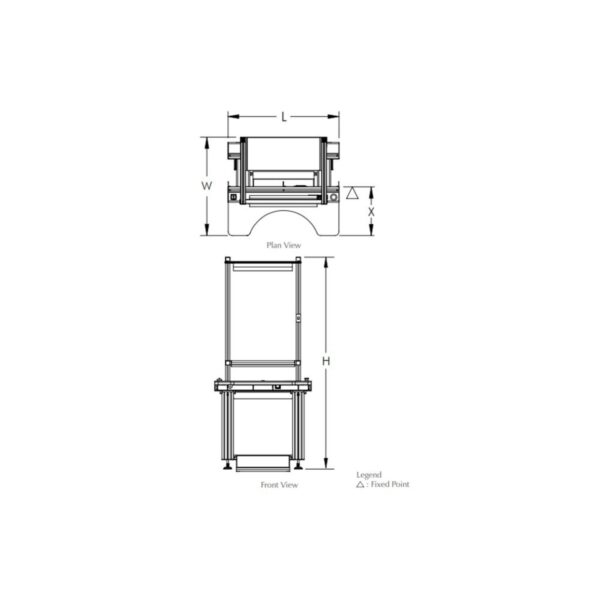

Model No.SizeMachine Dimension (mm)
L x W x H
Fixed Point to Front
Dimension (X)
Weight
(Approximately)
NTA0530WSMM1000 x 1045 x 2190 mm461 mm130 kg
NTA0530WSXLXL1000 x 1245 x 2190 mm461 mm150 kg
For further details, please refer to enclosed brochure.

Key Industries

  • Semiconductor, Solar & Electronics

Brand

Nutek

Nutek Private Limited (Nutek) conceptualizes, designs and manufactures automated production systems to customer specifications. Nutek is highly regarded for its world-class quality products, produced with the flexibility and nimbleness demanded by its customers all over the world. Our core business includes PCB Handling Equipment for PCBA industry, Material Handling Systems for Semicon Industry, Original Equipment Manufacturing (OEM) for Capital Equipment Manufacturers and Original Design Manufacturing (ODM) for other brand names.
