  • FlexTRAK® SHS Brochure


Industry-Leading Throughput and Reliability

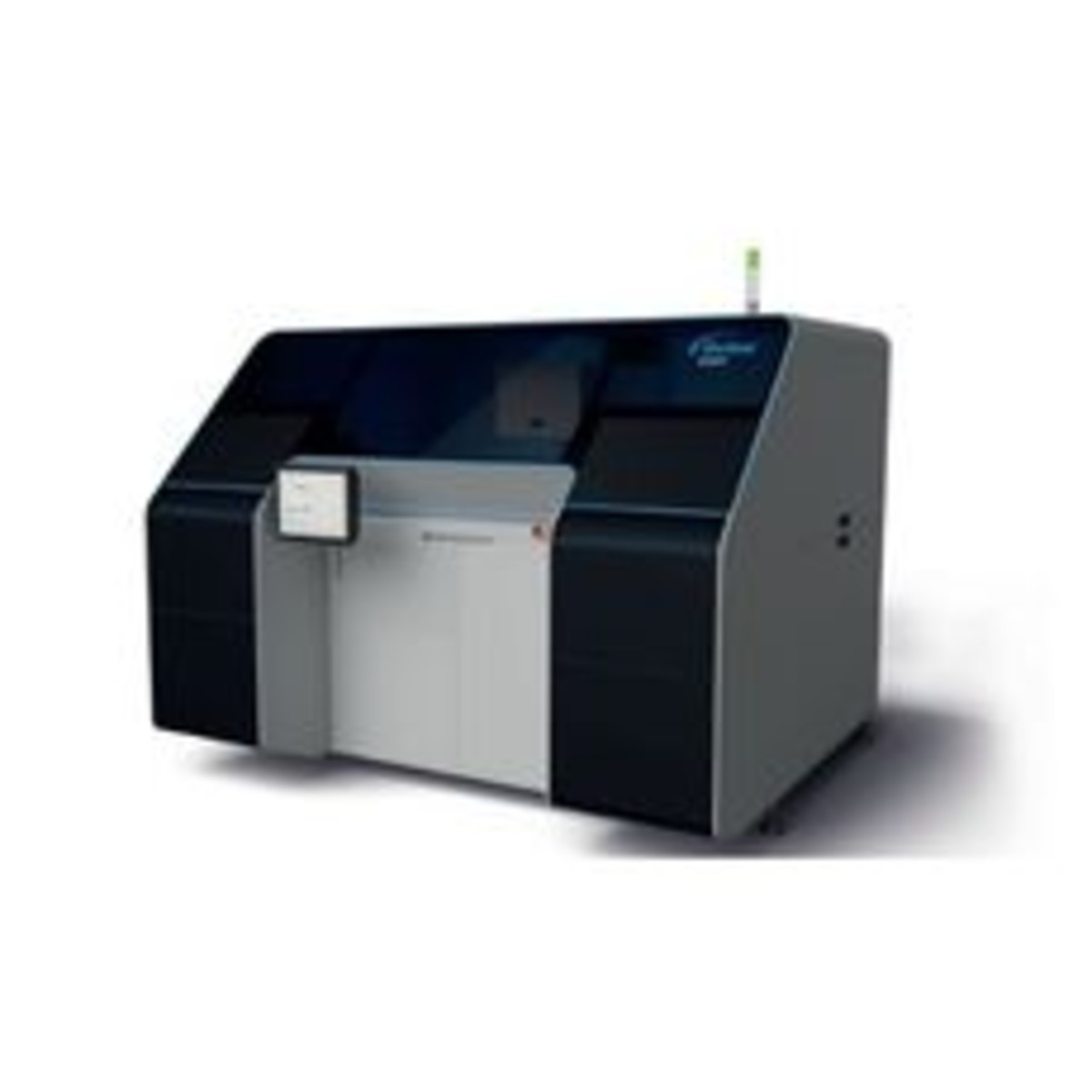

Built upon Nordson Electronics Solutions’ patented plasma technology, the FlexTRAK®-SHS is our latest fully automated plasma system incorporating a high-capacity F3-S chamber, to provide high uniformity and increased productivity. The chamber architecture remains the same as the smaller FlexTRAK platform, providing a seamless transition between chambers as production demands more capacity.

Key Applications



  • Pre-wire bond plasma treatment on semiconductor package substrates and lead frames
  • Pre-underfill plasma treatment on flip chip packages
  • Pre-mold plasma treatment on semiconductor package substrates and lead frames
  • Plasma treatment of semiconductor package substrates and lead frames for improved adhesion
  • Removal/reduction of oxidation on lead frame
  • Technical Specifications

    W x D x H – Footprint2314 x 1935 x 1787 mm (2293 H mm with light tower)
    91.1 x 76.2 x 70.5 in (90.3 H in with light tower)
    Net Weight1305 kg (2,871 lbs)
    Chamber VolumeF3-S chamber: 9.6 liters (585 in³)
    F3 chamber: 5.5 liters (338 in³)
    Powered Electrode Dimensions W x DF3-S chamber: 305 x 610 mm (12 x 24 in)
    F3 chamber: 305 x 305 mm (12 x 12 in)
    RF Power: Standard WattageF3-S chamber: 1000 W
    F3 chamber: 600 W
    RF Power: Frequency13.56 MHz
    Gas Control: Maximum Number of MFCs4
    For further details, please refer to enclosed brochure.

    Key Features

    FlexTRAK® SHS

    Industry-Leading Throughput

    • Large capacity F3-S process chamber
    • Simultaneous strip buffering and processing
    • Advanced automation and magazine splitting capabilities

    New Product Development

    • Advanced material handling
    • Ability to accommodate increasingly larger strip sizes
    • Sophisticated jam detection

    Application Flexibility

    • Plasma chamber effectiveness
    • Configurable process chamber
    • Versatile treatment modes

    Key Industries

    • Semiconductor, Solar & Electronics
