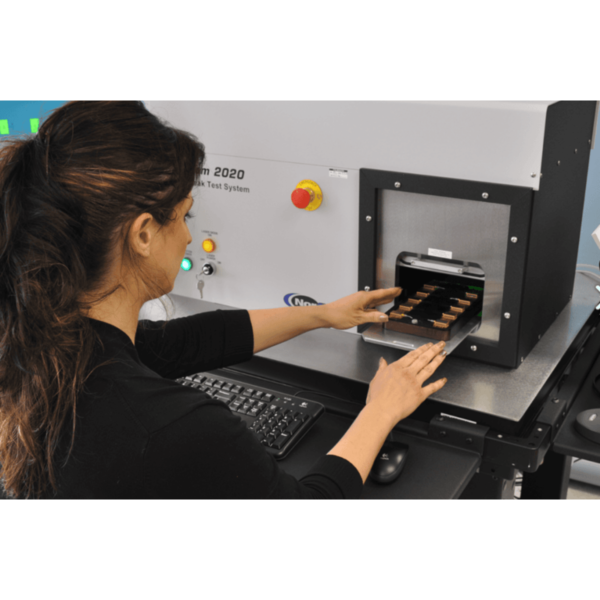

NorCom – Optical Leak Test System – NorCom 2020

The NorCom 2020 provides automated in line, full matrix leak testing of hermetically sealed microelectronic and optoelectronic devices. It eliminates the need for helium mass spectroscopy and gross leak bubble testing by utilizing a patented laser interferometer to simultaneously measure gross and fine leaks in hermetic devices.

Inquiry Now

Overview

Features

Specifications

Since the reliability of hermetic electronic packages is dependent on the detection of gross and fine leaks, the NorCom 2020’s pinpoint accuracy, repeatability and increased production throughput make the system an essential requirement for hermetic device production.

Key Features

  • High Throughput
  • Automatic In-line Leak Detection
  • Clean and Safe Procedure

Technical Specifications

Benefits

  • Reliable and repeatable test results
  • No helium mass spectroscopy or bubble testing
  • Increases production throughput
  • Improves packaging process control
  • Eliminates back-end production bottlenecks
  • Minimal training required.
Inspection Specifications2020-062020-12
Inspection pallet size5.5” x 4.5” (14.0cm x 11.4cm)12”x 6.0” (30.5cm x 15.2cm)
Max. number of device/cycleUp to 500 devices per CyclePackage size dependant
Throughput/hourUp to 5,000 devices per CyclePackage size dependant
Leak Rate Measurement Unitcc-atm/sec heliumcc-atm/sec helium
Laser Safety ClassificationCDRH Class 2CDRH Class 2

Key Features

NorCom 2020

  • • Patented laser interferometer provides reliable, repeatable results for fine and gross leak testing of devices.
  • • High throughput of up to 500 devices per cycle and 5000 devices per hour, depending on device geometry.
  • • Efficient and space-saving with a small system footprint, one-step calibration and setup, and minimal training required.
  • • Meets industry standards with quantitative leak test results reported in cc-atm/second and compliance with MIL-STD 883 and MIL-STD 750.
  • • Clean and safe system that eliminates the need for helium mass spectroscopy and gross leak bubble testing, reducing the use of expensive consumables, radioactive materials, and pollutants.

NorCom Systems Automated Leak Test Solutions for Hermetically Sealed Devices

Key Industries

  • Semiconductor, Solar & Electronics
  • Aerospace
  • Automotive
  • Defense
  • Electronics
  • Medical
