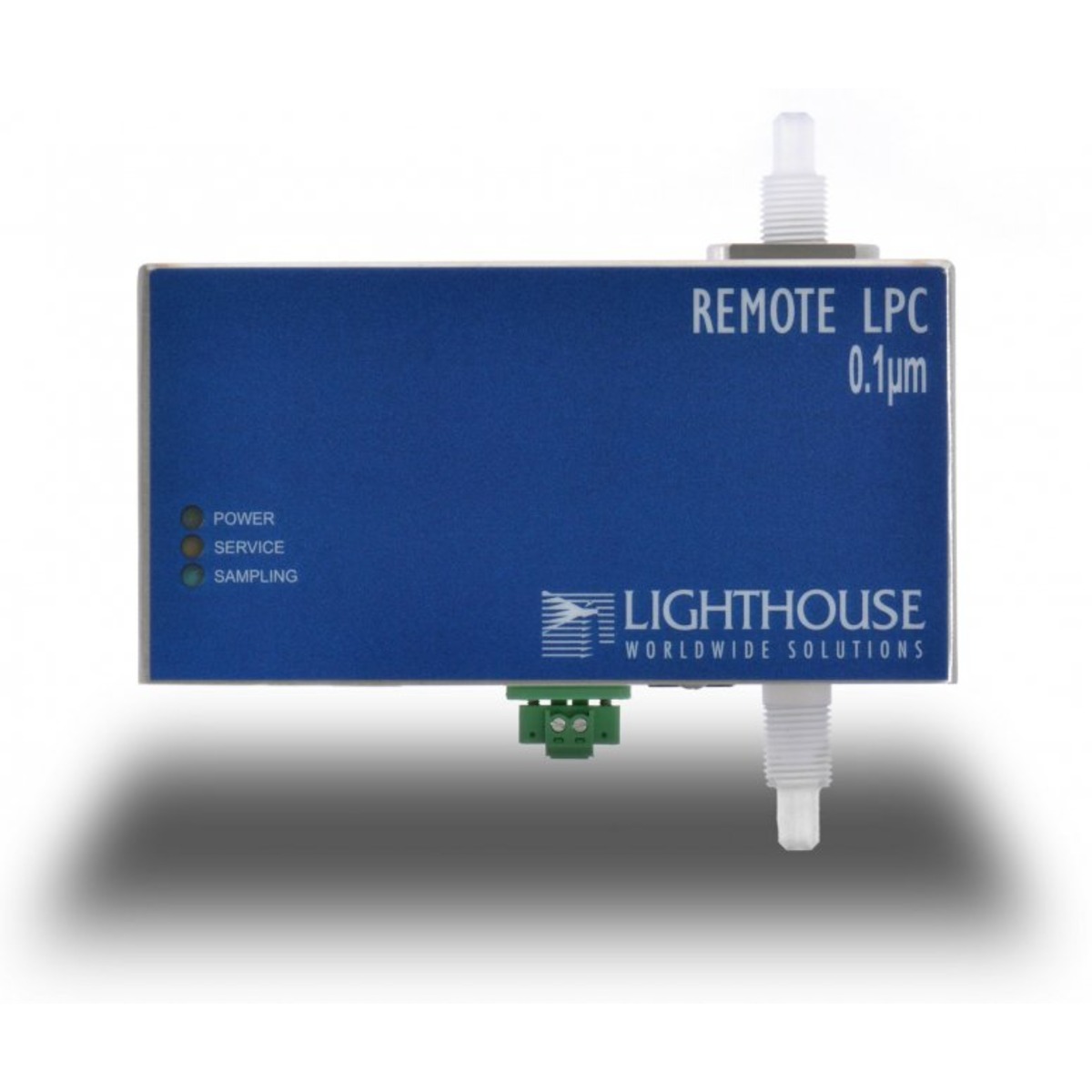

Lighthouse – Liquid Particle Characterization – Remote for liquid
Our comprehensive line of Remote Liquid Particle Counters will provide you the continuous monitoring data you are looking for. Our Remote Liquid Particle Counters will help you determine the DI Water being supplied to your process always maintains a certain level of cleanliness. These units can be easily setup into Facility Monitoring Systems and can also be easily cleaned and maintained.
Available Models
Technical Specifications
| MODBUS Output Range | Remote LPC 0.1 micron | Remote LPC 0.2 micron | Remote LPC 0.3 micron | Remote LPC 0.5 micron |
|---|---|---|---|---|
| Particle size range | 0.1 – 1.0 μm | 0.2 – 2.0 μm | 0.3 – 3.0 μm | 0.5 – 100 μm |
Incorporating the latest in laser optical particle counting technology and utilizing in-situ particle counting technology, Lighthouse designed the Remote Liquid Particle Counter, Modbus Output for continuous trouble-free operation.
This compact liquid particle counter provides versatile mounting options and can be installed where space is at a premium.
The Remote Liquid Particle Counter integrates seamlessly into large facility monitoring and management systems using RS-485 MODBUS.
Key Features
- 100 mL/min flow Rate
- 4 channels of simultaneous data
- RS-485 Modbus Output
- Stainless Steel Enclosure
- Status Indicators
- Interfaces with Facility Monitoring Systems
- Compact Size
- Designed for Reliability
Incorporating the latest in light obscuring technology, Lighthouse designed the Remote Liquid Particle Counter1.0μm for continuous trouble-free operation.
With a minimum sensitivity range of 1.0 μm and flow rate of 20 mL/min, the Remote Liquid Particle Counter 1.0μm provides real-time continuous data collection at a cost-effective price per point.
This compact liquid particle counter provides versatile mounting options and can be installed where space is at a premium.
The Remote Liquid Particle Counter 1.0μm integrates seamlessly into large facility monitoring and management systems using RS-485 MODBUS.
Key Features
- 1.0 – 200 μm particle size ranges
- 20 mL/min flow Rate
- 4 channels of simultaneous data
- RS-485 Modbus
- Stainless Steel Enclosure
- LED Status Indicators
- Interfaces with Facility Monitoring Systems
- Compact Size
- Designed for Reliability
Technical Specifications
| 4-20MA Output Range | Remote LPC 0.1 Micron | Remote LPC 0.2 Micron | Remote LPC 0.3 Micron | Remote LPC 0.5 Micron |
|---|---|---|---|---|
| Particle size range | 0.1 – 1.0 μm | 0.2 – 2.0 μm | 0.3 – 3.0 μm | 0.5 – 100 μm |
Incorporating the latest in laser optical particle counting technology and utilizing in-situ particle counting technology, Lighthouse designed the Remote Liquid Particle Counter (4-20mA Output) for continuous trouble-free operation.
This compact liquid particle counter provides versatile mounting options and can be installed where space is at a premium.
The Remote Liquid Particle Counter integrates seamlessly into large facility monitoring and management systems using 4-20mA output.
Key Features
- 100 mL/min flow Rate
- 2channels of simultaneous data
- 4-20mA Output
- Stainless Steel Enclosure
- Status Indicators
- Interfaces with Facility Monitoring Systems
- Compact Size
- Designed for Reliability
Key Industries
- Aerospace
- Environmental
- Medical
- Pharmaceutical
- Powders & Pigments / Coating
- Semiconductor, Solar & Electronics
Brand
Lighthouse has the most complete line of particle counting and contamination monitoring solutions available. Including of Airborne particle counters, Liquid particle counters, Microbial samplers, Total organic carbon analyzers, and Facility monitoring systems.
