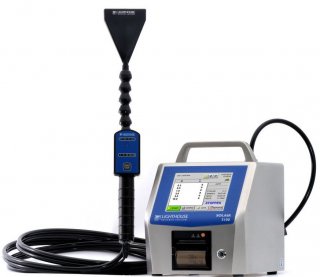

The image of the Filter Testing Scan Air system shown is the ScanAir system, which is one of 2 Filter Testing systems available.

The ScanAir system provides an easy-to-use means of checking HEPA / ULPA Filters and their seals for leaks and efficiency.

The ScanAir Pro System is a particle counter based HEPA/ULPA filter scanning system. It is the only easy and lightweight method for testing and scanning PTFE, fiberglass and other filter media for leaks.

Available Models

The Lighthouse Scan Air provides an easy-to-use means of checking HEPA / ULPA Filters and their seals for leaks and efficiency.

The Scan Air incorporates an Isokinetic probe specifically designed for a sampling flow rate of 1.0 CFM (28.3 LPM) across a wide area.

The Scan Air includes a Remote Start/Stop button and 7.62 meter (25-foot) cable. The Remote switch features hands-free operation of the SOLAIR portable particle counter enabling the user to efficiently sample in compliance with ISO 14644.

The on-board alarm buzzer and LED quickly notify the user if a count exceeds the alarm threshold, even when the Scan Air is being used in a high noise environment. The twist-lock connector quickly and easily connects or disconnects the Scan Air from a Solair portable particle counter.

The Solair (a Lighthouse product under Portable Airborne Particle Counter) and Scan Air can be used as a portable contamination detection system throughout the cleanroom environment.

Key Features

  • Adjustable Scan Head
  • CFM (28.3 LPM) Flow Rate
  • Remote Start / Stop Button
  • Remote Power and Alarm LED’s
  • Remote Audible and Visual Alarm
  • Lightweight Design
  • 7-oz weight
  • Quick Connect / Disconnect
  • 10 Foot Cable
  • Easily Integrates with Solair Airborne Particle Counters
  • Facilitates ISO 14644 Compliance Testing
  • External BEEP Volume Control with Head Jack
  • Ideal for using for ladders, scissor lifts or hard-to-reach places

Smart Upstream Sampling and Downstream Filter Scanning System

The Lighthouse ScanAir Pro System is a particle counter based HEPA/ULPA filter scanning system. It is the only easy and lightweight method for testing and scanning PTFE, fiberglass and other filter media for leaks.

Incorporating an ergonomic lightweight-scanning probe with touchscreen user interface, the ScanAir Pro System also includes a SOLAIR portable particle counter and a dual-port diluter that can be remotely switched between measurements from the touch screen handle.

The ScanAir Pro System allows you to take an upstream and downstream measurement that displays real time percent leak information on the integrated touch screen display.

Contact your local Lighthouse sales representative for additional information or to schedule a demonstration.

Key Features

  • Ergonomic and Lightweight
  • Touchscreen User Interface
  • Upstream and Downstream Mode of Measurement
  • Automatic Calculation of Alarm Threshold
  • Scan & Size Leaks
  • Display Percentage Leak During Downstream Mode
  • Display Upstream or Downstream Measurements
  • Only Solution for Testing PTFE Media Filters
  • Ability to Challenge Test Filters With a Much Lower Concentration Than a Photometer
  • Virtually No Coalescence of Aerosol
  • Use PSL and PAO for Filter Challenge Testing
  • Multi-Function System Allows Instruments to be
  • Utilized for Other Applications

Key Industries

  • Aerospace
  • Environmental
  • Medical
  • Pharmaceutical
  • Powders & Pigments / Coating
  • Semiconductor, Solar & Electronics
