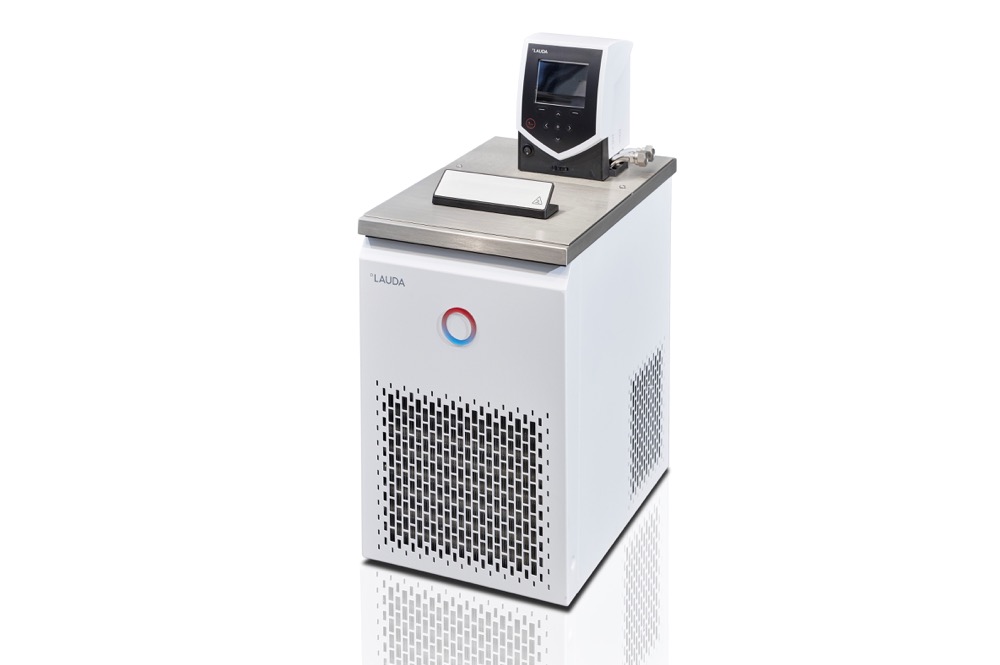

Economical Laboratory Heating Thermostats with Stainless Steel Bath

LAUDA ECO stands out due to its range of functionality and ease of use. A menu navigation in plain text allows easy operation of the devices. Both control heads are equipped with a mini-USB interface as standard. Further interfaces are available as modules. Another innovation is the practical allocation of a flow-rate switch at the front on the control head. This means that individual adjustment of the flow between internal and external circulation is possible even during operation.

Precise, Economical, Flexible

LAUDA ECO heating thermostats are suitable for a termperature range of up to 200°C. All heating thermostats are equipped with a cooling coil as standard.

LAUDA ECO Heating Thermostats – Control Head Silver

The control head Silver with 2.0 kW heater power (230 V) are now perfectly suited for thermostatting tasks up to 200°C. They are fitted with a monochrome LCD display. LAUDA ECO Heating Thermostat model E 4 S is fitted with a bath cover and pump connections for external applications with nipples made from plastic.

LAUDA ECO Heating Thermostats – Control Head Gold

LAUDA ECO control head Gold with heating power of 2.6 kW (230 V) have a working temperature of up to 200°C. They are provided with a larger colored TFT display. Temperature profiles can be displayed graphically. A comprehensive programer with five programs and 150 temperature-time segments is a further distinctive feature compared to Silver. LAUDA ECO Heating thermostat model E 4 G is fitted with a bath cover and pump connections for external applications with M16 × 1 threads.

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power (Silver)2.0 kW
Heater Power (Gold)2.6 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath depth150 mm / 200 mm

Available Models

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.0 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume3…3.5 L
Bath Opening /Depth135 × 105 / 150 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.0 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume7.5…11 L
Bath Opening /Depth300 × 190 / 150 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.0 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume12…16 L
Bath Opening /Depth300 × 190 / 200 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.0 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume13…19 L
Bath Opening /Depth300 × 365 / 150 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.0 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume16…25 L
Bath Opening /Depth300 × 365 / 200 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.0 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume32…40 L
Bath Opening /Depth300 × 613 / 200 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.6 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume3…3.5 L
Bath Opening /Depth135 × 105 / 150 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.6 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume7.5…11 L
Bath Opening /Depth300 × 190 / 150 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.6 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume12…16 L
Bath Opening /Depth300 × 190 / 200 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.6 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume13…19 L
Bath Opening /Depth300 × 365 / 150 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.6 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume16…25 L
Bath Opening /Depth300 × 365 / 200 mm

Technical Specifications

Working temperature range20…200°C
Temperature stability0.01 ±K
Heater Power2.6 kW
Pump pressure max.0.55 bar
Pump flow max.22 L/min
Bath volume32…40 L
Bath Opening /Depth300 × 613 / 200 mm

Key Features

  • Easy and intuitive operation with clearly readable parameters on LCD / TFT display
  • Programer allows automation of temperature variations and test series
  • Strong circulation pump with six levels allow adaptation of pump power to applications and different bath sizes
  • Provides user with flexible control options with a range of different module options (ANalog, RS232/485, contact, Profibus, Ethernet, EtherCAT, Pt100/LiBus)
  • Command remote control is possible via LiBus module.
  • Possible computer connection via mini-USB enables easy software updates
  • Drain valves as standard for easy and safe changing of heat transfer liquids
