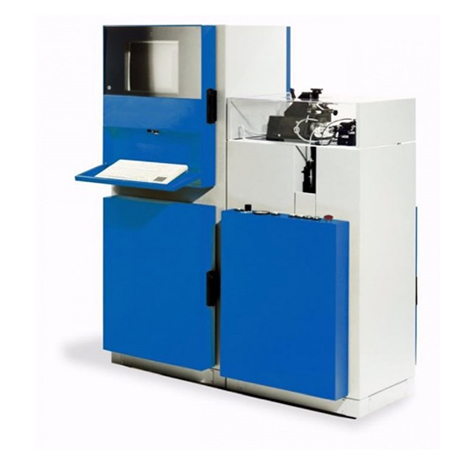

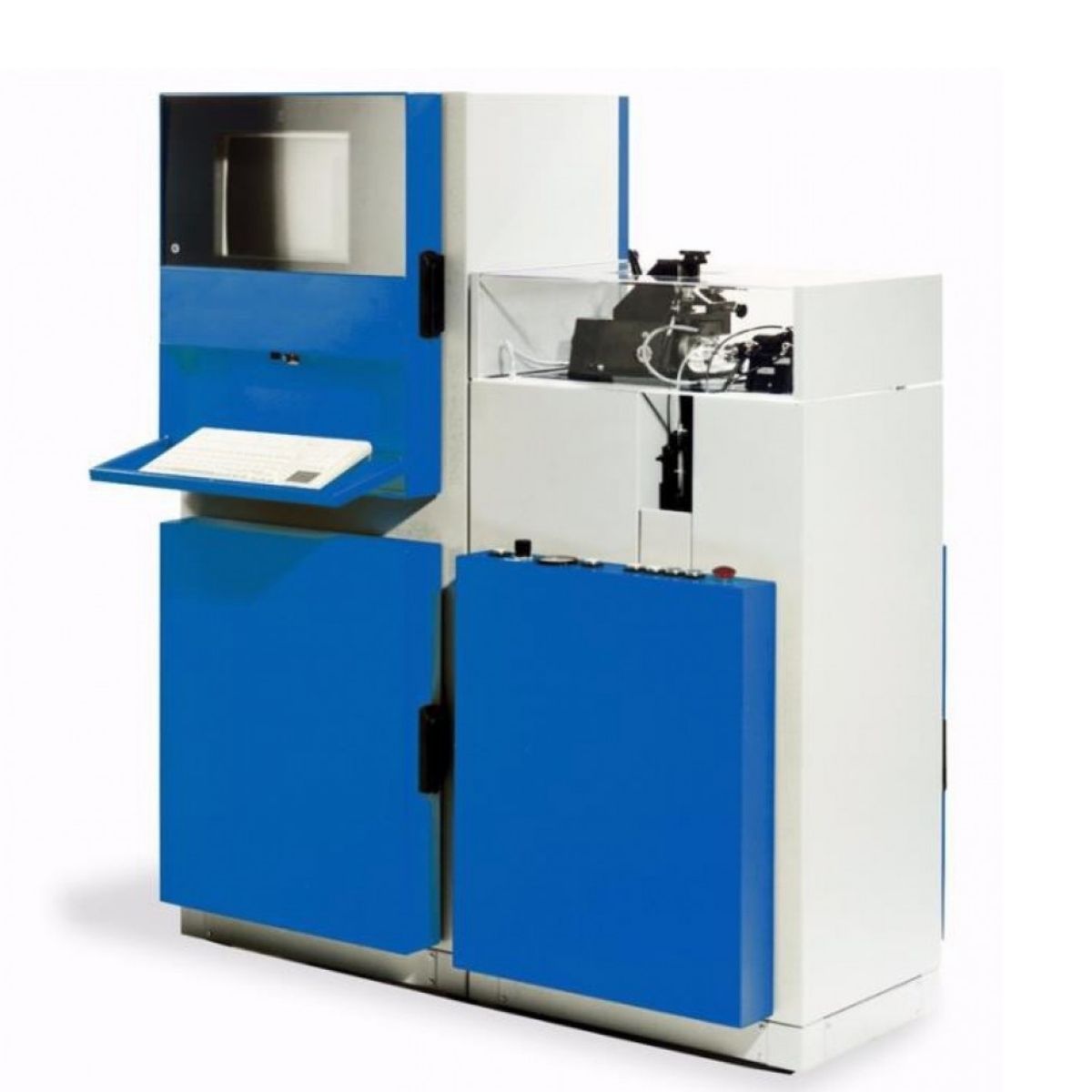

Koehler – Tribology – Grease Noise Tester
The Grease Noise Tester evaluates the lubrication integrity of greases, providing a quantitative assessment of the noise characteristics of the grease. The use of clean lubricants is essential for obtaining long bearing life. A clean grease for initial lubrication as well as re-lubrication are essential to ensure machine longevity. In applications where bearing fatigue life is not critical such as low operating loads, a clean grease is essential to ensure low bearing noise required for many electric motor applications.
The Grease Noise Tester measures the specific disturbances caused by the rolling of particulates called vibration peaks, and features a proprietary Peak Detection Algorithm that singles out these vibration peaks from the total bearing vibration signal.
The number of vibration peaks and their intensity are analyzed to determine a quantitative value for quiet running behavior of the bearing. In addition, the “grease damping ability” can be evaluated for a direct comparison between the running of a dry bearing versus the running of a lubricated bearing. Designed for proper testing while minimizing the risk of outside contamination, the semi-automated tester utilizes computer-controlled grease dosages and peak measurements on a single test bearing of special low noise quality.
Available Models
Technical Specifications
| Spindle System | Hydrodynamic oil spindle |
| Spindle Speed | 1800 rpm |
|---|---|
| Air Supply | Pneumatic system, min. 5.5bar dry air |
| Axial Loading System | Pneumatic, 30 N maximum |
- Model No: K94300
- 400-460V, 50/60 Hz, 3 Phase
Key Features
Grease Noise Tester
- Quantitative evaluation of grease/bearing noise characteristics
- Peak Detection Algorithm for detection of vibration peaks
- Data Acquisition Software package to monitor, record, and evaluate data
- High quality test spindle rotating at 1800 rpm
- Pneumatic loading device for the test bearing
Key Industries
- Aerospace
- Automotive
- Chemical
- Machinery and Manufacturing
- Mining and Minerals
- Oil and Gas
