Koehler – Constant-Temperature Viscosity Bath

  • SINGAPORE

    DKSH Singapore Pte Ltd
    625 Lorong 4 Toa Payoh, #03-00
    319519 Singapore
    Singapore

    +65 6471 1466

    Email

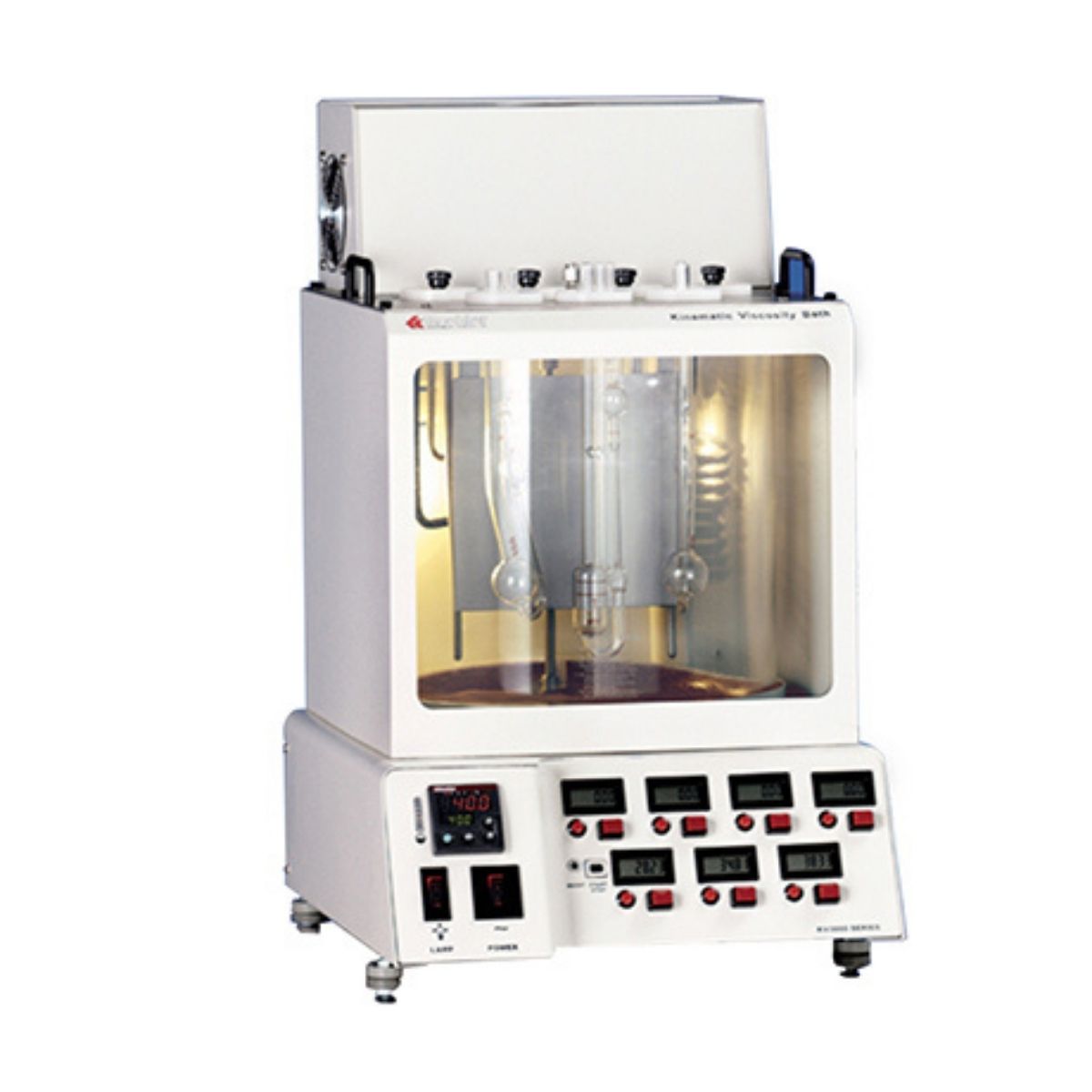

Baths feature PID microprocessor controller to deliver precise temperature control, with ASTM specified tolerances throughout the operating temperature range. Dual digital displays show set point time and actual temperature. Timers display in 0.01-second resolution and have ±0.01% accuracy. Models with RS-232 port also allow you to enter the viscosity constant of each viscometer on the controller panel. Controller automatically displays test results in efflux time and viscosity units when timers stop. Controller automatically shuts off power when there is an overtemperature condition or if the primary probe is disconnected.

The integrated low-level sensor interrupts operations if the bath liquid does not fill to the proper level, and shuts off power if the liquid falls below the level. Bath chamber is a clear Pyrex® tank enclosed in a polyester-epoxy finished steel housing. Top plate holds the viscometers and is made of stainless steel for easy cleaning. Front viewing window reduces distortion. Glare-free fluorescent lights in the bath and a background baffle enhance the view of the viscometers. Baths rest on adjustable leveling feet.

Technical Specifications

GP-06645-49GP-06645-65GP-06645-41
Membrane size47mm47mm47mm
SupportGlass fritStainless steelPTFE
Filtration area9.6cm29.6cm29.6cm2
Funnel size300mL300mL300mL
Flask size1000mL1000mL1000mL

Key Industries

  • Oil & Gas

Brand

Koehler Instrument Company Inc.

Providing quality testing instrumentation and technical support services for research and testing laboratories has been our specialty since 1925. Meeting your testing needs is the primary focus of our business, which is why Koehler Instrument Company is a leading producer and supplier of petroleum, synfuels and petrochemical instrumentation worldwide. At Koehler, we pride ourselves in innovation. In a time of continuous technological advancement and transition we are constantly implementing new and improved ways to surpass the needs of an ever-evolving industry. Koehler products are backed by our staff of technically knowledgeable, trained specialists who are experienced in both petroleum products testing and instrument service, which is carried out either on site or at a Koehler service center.
