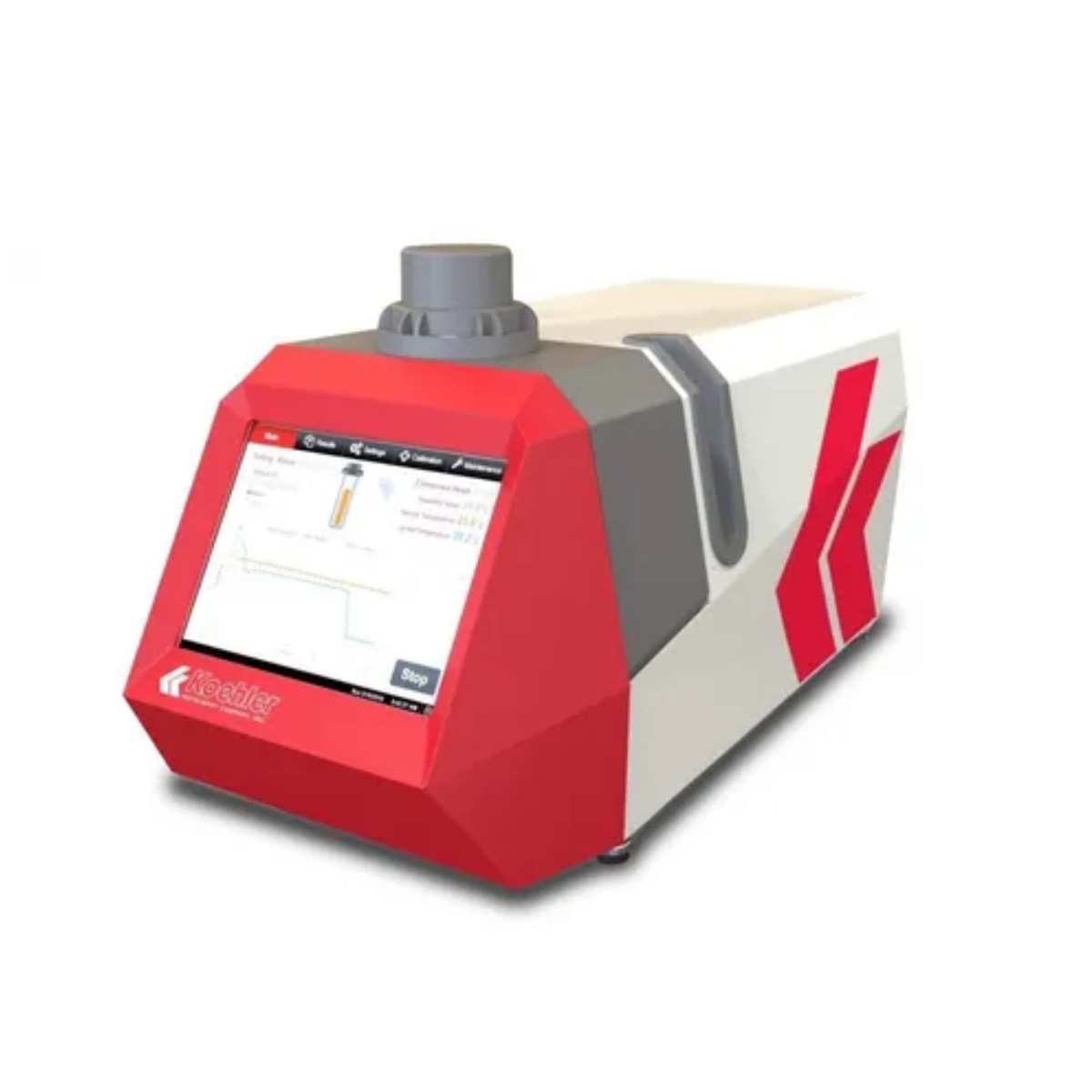

Koehler – Physical Characterizations – Automatic Cloud and Pour Point Analyzer
Cloud point and pour point are indicators of the lowest temperature of utility for petroleum products. The sample is periodically examined while it is being cooled in the cloud and pour point apparatus.
The highest temperature at which haziness is observed (cloud point), or the lowest temperature at which movement of the oil is observed (pour point), is reported as the test result.
Key Features
- Pour Point Analyzer conforms to ASTM D97, D5853, D5950 and related test methods
- Stand alone system with Integrated Touch Screen Panel PC
- Direct Cooling system eliminates the need for solvent cooling baths
- One-stage cooling system provides temperatures as low as -45°C and a two-stage cooling system down to -80°C
- Cloud Point measured by light pulsed emission on I.R spectrum through a coaxial fiber optic
- Pour Point measured by two PT100 detection probes placed on the surface of the product and a mechanical moving arm bringing the test jar to a horizontal position
Available Models
Technical Specifications
| Temperature Range | One-Stage: +60°C to -45°C Two-Stage: +60°C to -80°C |
|---|---|
| Resolution | 0.06°C |
| Accuracy | ±0.1°C |
| Repeatability / Reproducibility | as per standard test methods or better |
| Data Storage | < 60,000 analyses |
| Dimensions (cm) | 66 x 60 x 80 |
| Weight | 60 kg |
- Cloud Point Analyzer conforms to ASTM D2500, D5771, D5772, D5773 and related test methodsFor Petroleum Products, cloud point and pour point of a petroleum product is an index of the lowest temperature of its utility for certain applications. The specimen is cooled at a specified rate and examined periodically. The highest temperature at which a cloud is first observed at the bottom of the test jar is recorded as the cloud point. The lowest temperature at which movement of the specimen is observed is recorded as the pour point.
- Pour Point Analyzer conforms to ASTM D97, D5853, D5950 and related test methods
- Stand alone system with Integrated Touch Screen Panel PC
- Direct Cooling system eliminates the need for solvent cooling baths
- One-stage cooling system provides temperatures as low as -45°C and a two-stage cooling system down to -80°C
- Cloud Point measured by light pulsed emission on I.R spectrum through a coaxial fiber optic
- Pour Point measured by two PT100 detection probes placed on the surface of the product and a mechanical moving arm bringing the test jar to a horizontal position
Technical Specifications
| Conforms to the Specifications of | ASTM D97, D2500, D5853, D6074, D6158; IP 15, 219; ISO 3015, 3016; DIN 51597; FTM 791-201; NF T 60-105 |
|---|---|
| Dimensions (cm) | K46000: dia.xh,in.(cm) – 10 1⁄2×12 (27×30) K46100: lxwxh,in.(cm) – 30x28x35 (76x71x89) K46300: lxwxh,in.(cm) – 44x38x4 (112x97x115) |
| Net Weight | Cloud and Pour Point Chamber: 14 lbs (6.4 kg) Bench Model: 200 lbs (90.7 kg) Floor Model: 400 lbs (181.4 kg) |
Cloud point and pour point are indicators of the lowest temperature of utility for petroleum products. The sample is periodically examined while it is being cooled in the cloud and pour point apparatus. The highest temperature at which haziness is observed (cloud point), or the lowest temperature at which movement of the oil is observed (pour point), is reported as the test result.
- Conforms to ASTM D97, D2500 and related specifications

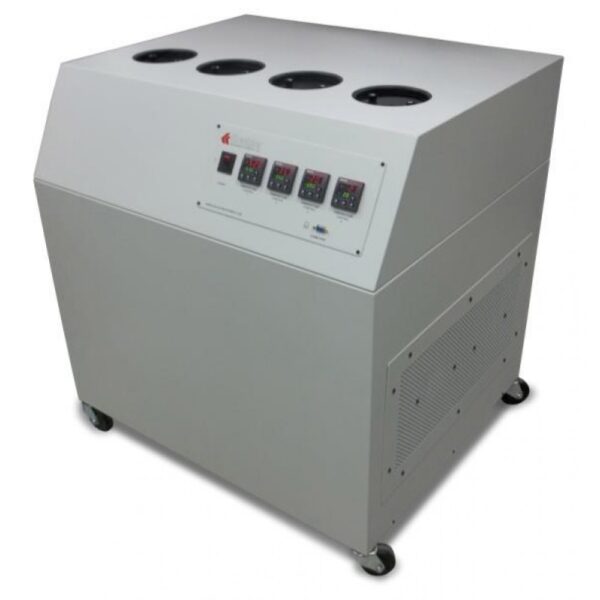

- Compact four-place portable chamber
- Mechanically refrigerated models with factory preset cold baths
Key Industries
- Chemical
- Education & Academics
- Environmental
- Oil & Gas
