Idex – Specialty Fittings – TinyTight™ Fittings

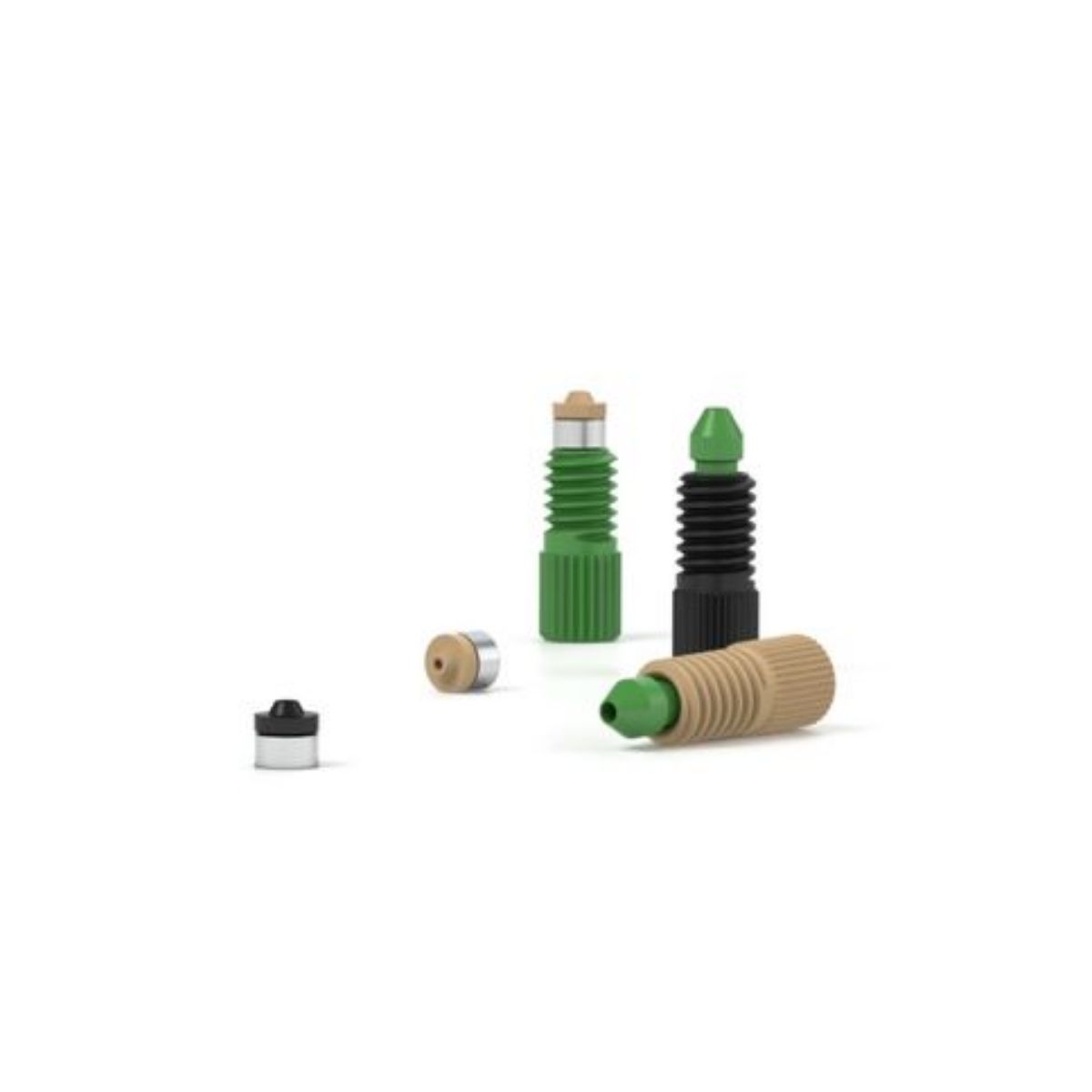

TinyTight™ Fittings are easy-to-use alternatives for Lee Company 062 MINSTAC fittings systems. These fittings consist of a TinyTight Ferrule which works with the 6-40 threaded nut, M-644-03. Choose from two ferrule options, with 0.020 inches (0.50 mm) or 0.030 inches (0.75 mm) thru-holes.

Inquire Now

Overview

Features

Specifications

Key Features

Available products of TinyTight™ Fittings

Our easy-to-use TinyTight Ferrule alternatives for Lee Company 062 MINSTAC fittings systems. It delivers a precise pressure range that depends upon the tubing used for the connection.


List of available TinyTight™ Fittings

MaterialThread Port ConfigurationFor outer diameter tubingPressure Rating MaxThru holeLength StyleColour
PEEK/Stainless Steel6-40 MiniStac1/16 inches750 psi/52 bar to 3750 psi/259 bar0.020 inches –Natural
PEEK/Stainless Steel6-40 MiniStac1/16 inches750 psi/52 bar to 3750 psi/259 bar0.030 inchesLongBlack



Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
