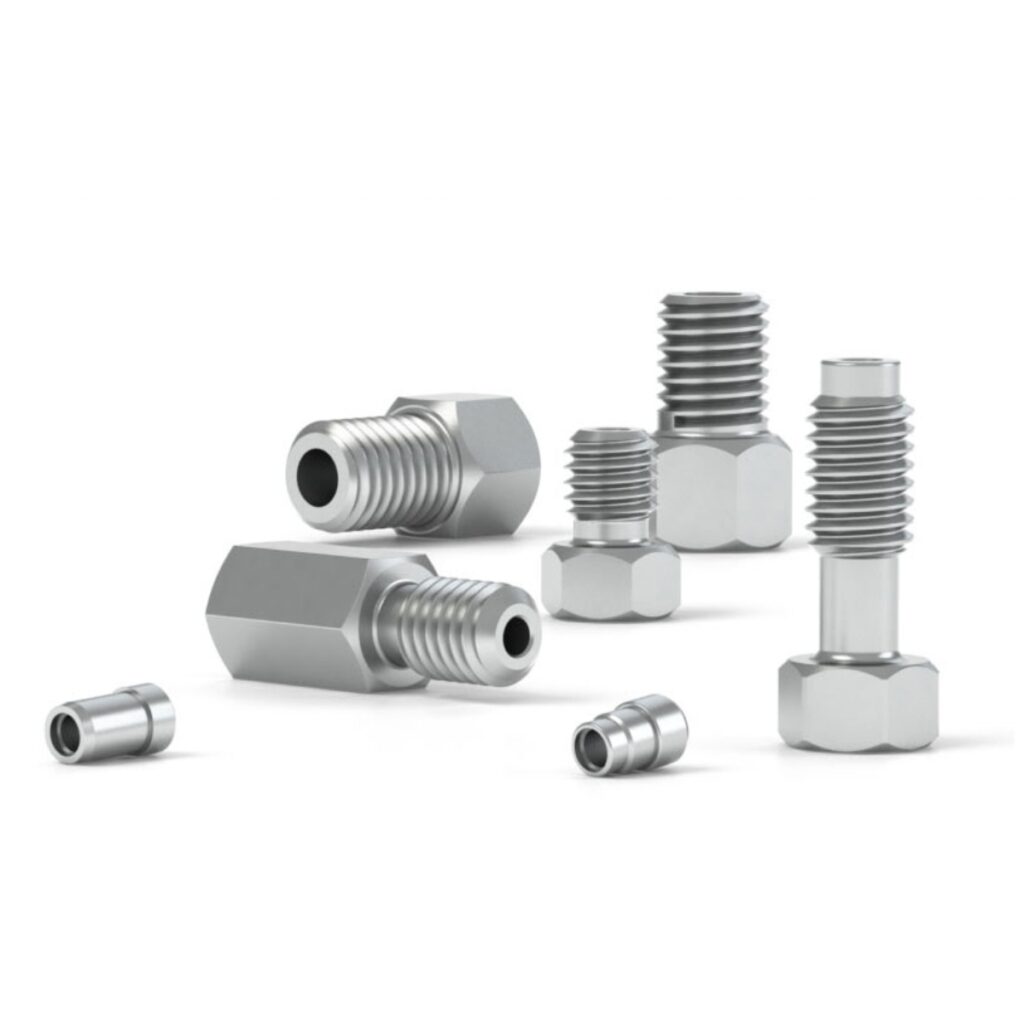

Stainless steel fittings remain the most popular fitting used on standard HPLC systems today, due to their high temperature resistance and high-pressure holding abilities. Our durable and strong 316 Stainless Steel Fittings are rated to 20,000 psi (1,380 bar) when wrench tightened. You can choose our Standard Fittings, or select from other manufacturer-compatible offerings.

Available Models

Technical Specifications

Thread Port Configuration Coned10-32
MaterialStainless Steel
Pressure Rating Max (psi)20000
Pressure Rating Max (bar)1380
For Tubing outer diameter (inches)1/16
  • Stainless Steel Ferrule 10-32 Coned, for 1/16 inches outer diameter – 1 unit
  • Stainless Steel Ferrule 10-32 Coned, for 1/16 inches outer diameter – Pack of 10 units
  • Stainless Steel Ferrule, 1/16 inches outer diameter – Pack of 5 units
  • Stainless Steel Ferrule, 1/16 inches outer diameter – Pack of 10 units
  • Stainless Steel Ferrule, 1/16 inches outer diameter – Pack of 50 units

Our Stainless Steel Ferrule is durable and strong and especially resilient for high pressure valve applications. It is part of a family of products that has been the standard for valve connections for a quarter of a century.  It can withstand pressures of up to 20,000psi when wrench tightened with a nut. Our ferrule is designed for a 10-32 coned thread port configuration and is for 1/16″ OD tubing

Technical Specifications

Thread Port Configuration Coned1/4-28
MaterialStainless Steel
Pressure Rating Max (psi)20000
Pressure Rating Max (bar)1380
For Tubing outer diameter (inches)1/8
  • Stainless Steel Male Nut, 1/4-28 Thread Port Configuration Coned, for 1/8 inches outer diameter, Head Style 5/16 inches Hex
  • Stainless Steel Ferrule, 1/4-28 Thread Port Configuration Coned, for 1/8 inches outer diameter

Our Stainless Steel Male Nut/Ferrule delivers strength and reliability. It can withstand pressures of up to 20,000psi when wrench tightened. Our nut has a 1/4-28 coned thread port configuration and is for 1/8 inches outer diameter tubing.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialStainless Steel
Pressure Rating Max (psi)20000
Pressure Rating Max (bar)1380
For Tubing outer diameter (inches)1/16
  • 316 Stainless Steel Male Nut, Valco Type, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Head Style 1/4 inches Hex  – 1 unit
  • 316 Stainless Steel Male Nut, Valco Type, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Head Style 1/4 inches Hex – Pack of 10 units

Our durable 316 Stainless Steel Male Nut offers consistent and reliable strength. It delivers high pressure ratings (up to 20,000 psi) when wrench tightened. Our male nut is Valco compatible making it versatile to meet your needs. It is for 1/16 inches outer diameter Tubing and has a 10-32 Port Configuration. It is available as a single unit or in a pack of 10 units.

  • 316 Stainless Steel Ferrule, Valco Type, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter – 1 unit
  • 316 Stainless Steel Ferrule, Valco Type, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter – Pack of 10 units

Our durable 316 Stainless Steel Ferrule offers consistent and reliable strength. This ferrule permanently attaches itself to tubing which allows it to be used in higher pressures. This ferrule is Valco compatible making it versatile to meet your needs. It is for 1/16 inches outer diameter Tubing and has a 10-32 Port Configuration. It is available as a single unit or in a pack of 10 units.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialStainless Steel
Pressure Rating Max (psi)20000
Pressure Rating Max (bar)1380
For Tubing outer diameter (inches)1/16
  • Stainless Steel Short Male Nut, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Head Style 1/4 inches Hex
  • Stainless Steel Extra Long Male Nut, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter
  • 316 Stainless Steel Male Nut, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Head Style 1/4 inches Hex – 1 unit
  • 316 Stainless Steel Male Nut, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Head Style 1/4 inches Hex – Pack of 10 units

Our durable 316 Stainless Steel Short/Extra Long Male Nut offers consistent and reliable strength. It delivers high pressure ratings (up to 20,000 psi) when wrench tightened. It is for 1/16 inches outer diameter Tubing and has a 10-32 Port Configuration.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialStainless Steel
Pressure Rating Max (psi)20000
Pressure Rating Max (bar)1380
For Tubing outer diameter (inches)1/16
  • 316 Stainless Steel Male Nut, SSI Type, Head Style 5/16 inches Hex
  • Stainless Steel Male Nut, Waters Type, Head Style 5/16 inches Hex
  • Stainless Steel Long Male Nut, Beckman Type, Head Style 1/4 inches Hex

Our durable 316 Stainless Steel Male Nut offers consistent and reliable strength. It delivers high pressure ratings (up to 20,000 psi) when wrench tightened. Our male nut is either SSI, Waters or Beckman compatible making it versatile to meet your needs. It is for 1/16 inches outer diameter Tubing and has a 10-32 Port Configuration.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialStainless Steel
Pressure Rating Max (psi)20000
Pressure Rating Max (bar)1380
For Tubing outer diameter (inches)1/16
  • Two-Piece Stainless Steel Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configurated Coned – Pack of 5 units
  • Two-Piece Long Stainless Steel Fitting, 10-32 Thread Port Configurated Coned, for 1/16 inches outer diameter – Pack of 5 units
  • Two-Piece X-Long Stainless Steel Fitting, for 10-32 Thread Port Configurated Coned, for 1/16 inches outer diameter – Pack of 5 units
  • Two-Piece X-Long Stainless Steel Fitting, for 10-32 Thread Port Configurated Coned, for 1/16 inches outer diameter – Pack of 10 units
  • Two-Piece Stainless Steel Fitting, 10-32 Thread Port Configurated Coned, for 1/16 inches outer diameter – Pack of 10 units
  • Two-Piece Stainless Steel Long Fitting, 10-32 Thread Port Configurated Coned, for 1/16 inches outer diameter – Pack of 10 units

Our Two-Piece Stainless Steel Fitting and Ferrule is specifically designed for the rigid requirements of our high pressure rated valves. This strong and reliable fitting is for a tubing outer diameter of 1/16 inches. It comes in a pack of 5 units or pack of 10 units.

  • Stainless Steel Male Nut , M6 Thread Port Configuration Coned, for 1/16 inches outer diameter, Pressure Rating Max 20000 psi/1380 bar, Head Style 5/16 inches Hex
  • Stainless Steel Ferrule for Valve 8125, 0.5 mm (0.020 inches) inner diameter tubing, For Tubing outer diameter 510 µm – 1 unit
  • Stainless Steel Ferrule for Valve 8125, 0.5 mm (0.020 inches) inner diameter tubing, For Tubing outer diameter 510 µm – Pack of 4 units

Our Stainless Steel Fitting is durable and strong and especially resilient for high pressure valve applications. The stainless steel male nut is for 1/16 inches outer diameter Tubing and has a M6 Coned Port Configuration. The stainless steel ferrule is for the Valve model 8125 and is intended for use with 0.020 inches inner diameter tubing which comes as a single unit or in a pack of 4 units.
