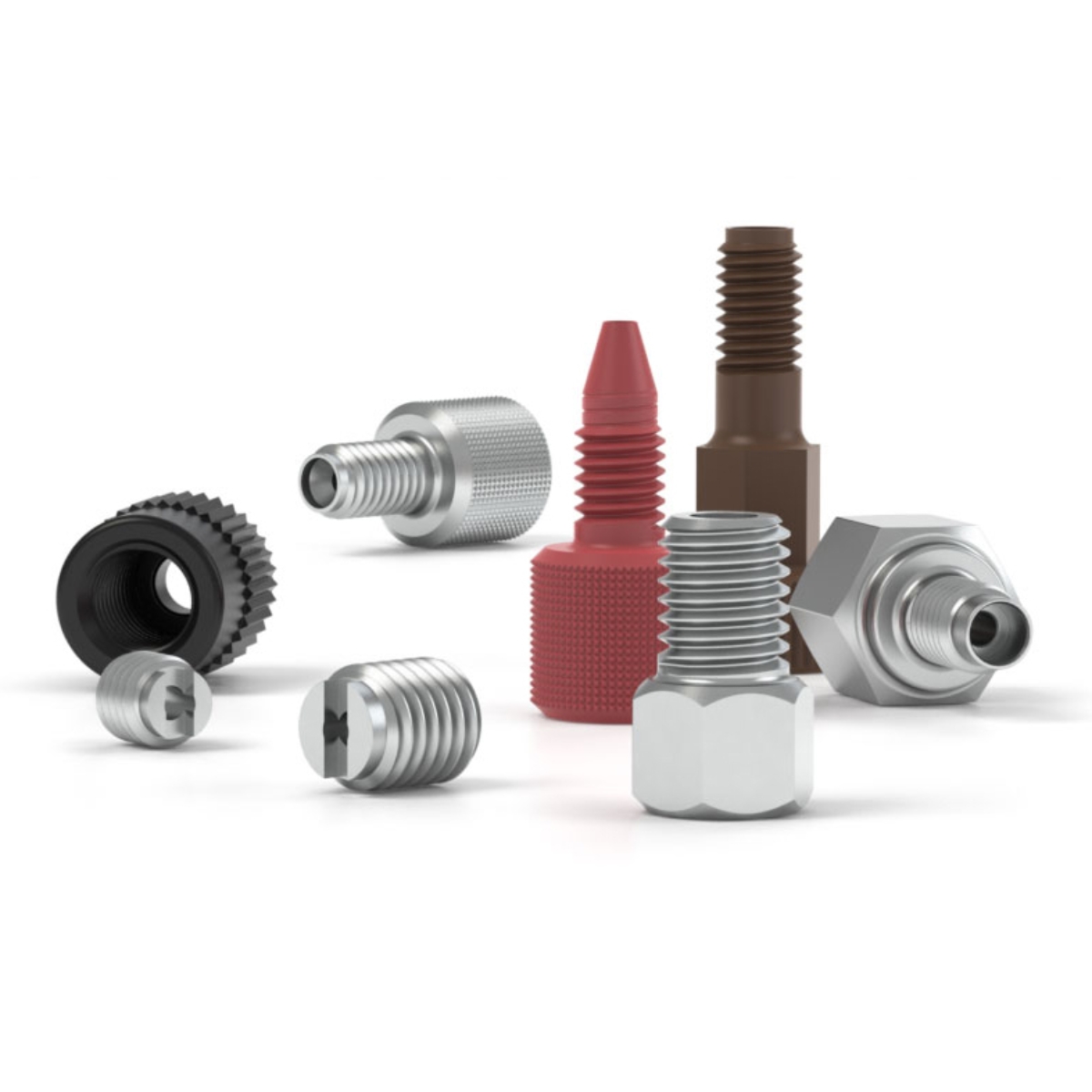

Our PEEK Fittings are biocompatible and offers excellent chemical resistance. They are simple to use and an economical choice. These fittings are offered in a fingertight style making them easy to tighten. We offer fittings and ferrules for your convenience. We offer our PEEK fittings in one and two piece options.

Available Models

Technical Specifications

Thread Port Configuration Coned10-32
MaterialPEEK
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing outer diameter (inches)1/16
  • One Piece PEEK Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Black – Pack of 10 units
  • One Piece PEEK Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Blue – Pack of 10 units
  • One Piece PEEK Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Green – Pack of 10 units
  • One Piece PEEK Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Gray – Pack of 10 units
  • One Piece PEEK Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Multi Color – Pack of 10 units
  • One Piece PEEK Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Red – Pack of 10 units
  • One Piece PEEK Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Yellow – Pack of 10 units

Our One-Piece PEEK Fingertight Fitting is uniquely designed to offer a simple fittings solution. Our easy to tighten fitting is simple to use and economic. Manufactured from biocompatible PEEK it offers excellent chemical resistance. It has a 10-32 coned port configuration and is for 1/16 inches outer diameter tubing. Our fittings come in 10 Packs with black, blue, green, gray, red, yellow and multi-color fittings knobs.

Technical Specifications

Thread Port Configuration Coned5/16-24
MaterialPEEK
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing outer diameter (inches)1/8
  • PEEK Two-Piece Fitting, for 1/8 inches outer diameter, 5/16-24 Port With Ferrule
  • PEEK Two-Piece Fingertight Fitting, for 1/8 inches outer diameter, 5/16-24 Port Ferrule Only – 5 Pack

Our Two-Piece PEEK Fitting (nut and ferrule) is biocompatible and offers excellent chemical resistance. It is simple, economic, and easy-to-use. It is for 1/8 inches outer diameter Tubing and has a 5/16-24 coned port configuration. The replacement ferrules are also available in a pack of 5 units.

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating

Brand

IDEX Health & Science

IDEX Health & Science is the global authority in fluidics and optics, bringing life to advanced optofluidic technologies with our products, people and engineering expertise. We are respected worldwide for solving complex problems and delivering complete path innovation for analytical, diagnostic and biotechnology applications for the life sciences market. As a genuine and trustworthy partner, we solve our customers’ most demanding challenges with the industry’s most extensive portfolio of state-of-the-art components and capabilities that are unrivaled in breadth, quality, performance and design. Our vision of the complete path goes far beyond just meeting our customers’ needs — it anticipates them, with intelligent solutions for life.
