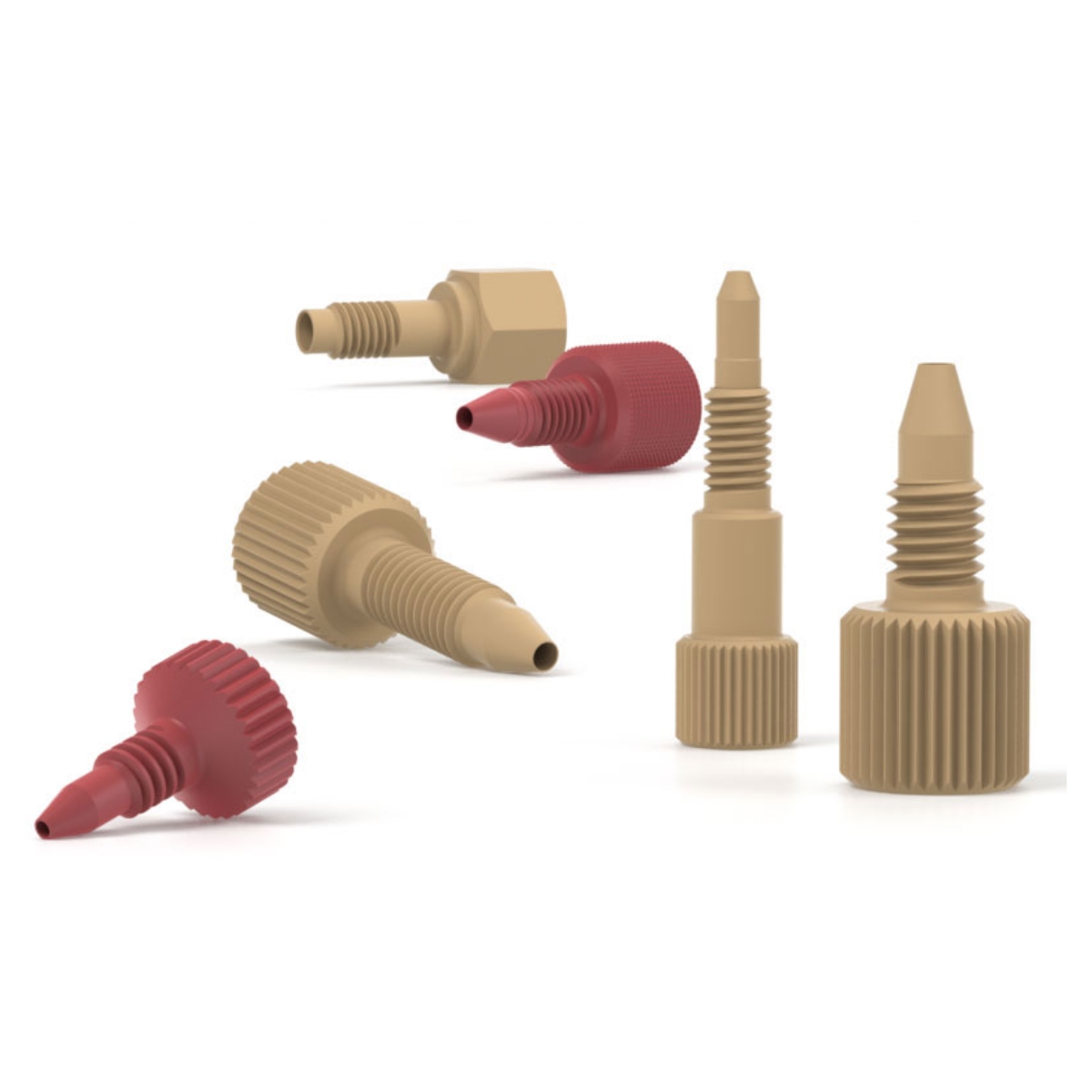

Our original One-Piece Fingertight Fittings offer the convenience of making a tubing connection without the need for wrenches or specialized tools when tightening the fitting into place. It is ideal for HPLC applications. Simply use your fingers to tighten the fitting into the receiving port! Our easy to use fittings are designed so that the ferrule will not stick in a receiving port and the fitting is more easily found if dropped. The fittings for 1/16 inches outer diameter tubing and 10-32 coned ports are available in a variety of colors, materials and lengths to suit virtually every application.

Available Models

Technical Specifications

For Tubing outer diameter (inches)1/16
MaterialPCTFE
  • One-Piece Fingertight Male Nut, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Pressure Rating Max 4000 psi/ 276 bar, Head Style Diamond Knurl, Colour Red – 1 unit
  • One-Piece Fingertight Male Nut, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Pressure Rating Max 4000 psi/ 276 bar, Head Style Diamond Knurl, Colour Red – Pack of 10 units
  • One-Piece Fingertight Male Nut ,1/4-28 Thread Port Configuration Coned, for 1/16 inches outer diameter, Head Style Standard Knurl, Colour Natural – 1 unit

Our original One-Piece Fingertight Male Nut has a durable all polymer construction and excellent ease of use. Our original One-Piece Fingertight Fittings offer the convenience of making an smooth high-pressure tubing connection without the need for wrenches or specialized tools when tightening the fitting into place. Simply use your fingers to tighten the fitting into the receiving port! This male Nut comes in red, 10 pack of red, natural color and 10 pack of natural color.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialPEEK
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing OD (in)1/16
Head StyleStandard Knurl
  • One-Piece Fingertight, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Natural – 1 unit
  • One-Piece Fingertight, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Blue – 1 unit
  • One-Piece Fingertight, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Black
  • One-Piece Fingertight, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Green – 1 unit
  • One-Piece Fingertight, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Red – 1 unit
  • One-Piece Fingertight, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Natural – Pack of 10 units
  • One-Piece Fingertight, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Yellow – 1 unit

Our original One-Piece Fingertight Fittings offer the convenience of making a tubing connection without the need for wrenches or specialized tools when tightening the fitting into place. Simply use your fingers to tighten the fitting into the receiving port! It has a 10-32 coned port configuration and is for 1/16 inches outer diameter tubing. It is available in natural, blue, black, green, red, yellow, a 10 pack of natural and a fun pack of 6 with a variety of colors.

Technical Specifications

ColorNatural
Length StyleLong
Thread Port Configuration Coned10-32
MaterialPEEK
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing OD (in)1/16
Head StyleStandard Knurl
  • One-Piece Fingertight Long, Material PEEK, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter – 1 unit
  • One-Piece Fingertight Long, Material PEEK, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter – Pack of 10 units

Our original One-Piece Fingertight Fittings offer the convenience of making a tubing connection without the need for wrenches or specialized tools when tightening the fitting into place. Simply use your fingers to tighten the fitting into the receiving port! This long fitting is PEEK, 10-32 coned port is for 1/16 inches outer diameter tubing. It is available in natural color, blue, black, green, red, yellow and a 10 pack of natural color.

  • One-Piece Fingertight Fitting, Valco, 6-40 Thread Port Configuration Coned, for 1/32 inches outer diameter

Our One-Piece Fingertight Fitting is a unique specialty fitting that is a direct replacement for the 6-40 Valco fitting. Our original fitting has an all polymer construction giving in excellent solvent resistance. It has a 6-40 coned thread port configuration of and is for 1/32 inches outer diameter.

Technical Specifications

ColourNatural
Thread Port Configuration Coned6-40
MaterialPEEK/PCTFE
Pressure Rating Max (psi)750 to 3750
Pressure Rating Max (bar)121 to 224
For Tubing outer diameter (inches)1/32
Head StyleHeadless Knurl
  • Male Nut Fingertight for 1/8 inches outer diameter

Our original original One-Piece Fingertight Fitting (male nut) is made from chemically resistant PCTFE and excellent ease of use because the ferrule will not stick in a receiving port. It has a 1/4-28 coned port and is for 1/8″OD tubing.

Technical Specifications

Thread Port Configuration MiniStac1/4-28 Coned
MaterialPEEK/PCTFE
Pressure Rating Max (psi)1000
Pressure Rating Max (bar)69
For Tubing outer diameter (inches)1/8
Head StyleDiamond Knurl
