Idex – Coned Fittings – NanoTight™ Fittings

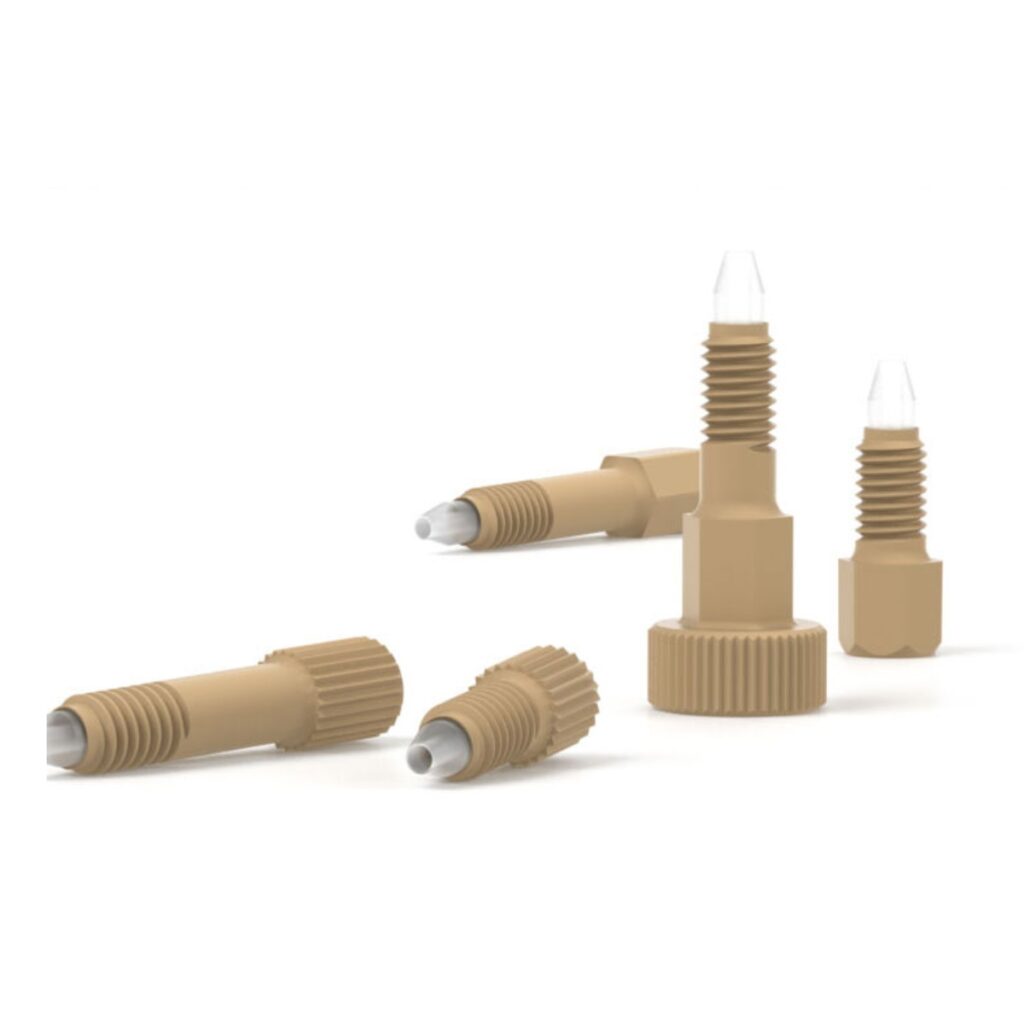

NanoTight Fittings are specifically designed to connect 70 μm–1 mm OD capillary tubing to any standard 10-32 coned port normally intended for 1/16 inches outer diameter tubing using the NanoTight Tubing Sleeves. The fittings can also be used to connect any 1/16 inches outer diameter tubing. The Tefzel ®(TEFZEL® (ETFE)) ferrule material is softer than PEEK, making it a good candidate for connecting thin walled semi-rigid tubing such as Dupont® FEP and Tefzel ®(TEFZEL®) into 10-32 ports with minimal constricting to the inner diameter.
Key Features
Available products of NanoTight™ Fittings
- NanoTight™ Fitting, Material PEEK, Head Style Headless Knurl, Length Style Short, 10-32 Coned, for 1/16 inches outer diameter – 1 unit
- NanoTight™ Fitting, Material PEEK, Head Style Headless Knurl, Length Style Short, 10-32 Coned, for 1/16 inches outer diameter – Pack of 10 units
Our Short NanoTight Fitting offers the best available option for connecting capillary tubing into standard 10-32 threaded, coned ports normally designed for 1/16 inches outer diameter tubing. When combined with NanoTight® Tubing Sleeves, these fittings work with tubing outer diameters from 70µm to 1mm. The ferrule is made from softer Tefzel (ETFE) material allowing ease of connection. This also comes in a pack of 10 units.
Technical Specifications
| Colour | Natural |
| Length Style | Short |
| Thread Port Configuration Coned | 10-32 |
| Material | PEEK/Tefzel (ETFE) |
| Pressure Rating Max (psi) | 4000 |
| Pressure Rating Max (bar) | 276 |
| For Tubing outer diameter (inches) | 1/16 |
| Head Style | Headless Knurl |
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Medical
- Oil & Gas
- Pharmaceutical
- Powders & Pigments / Coating
