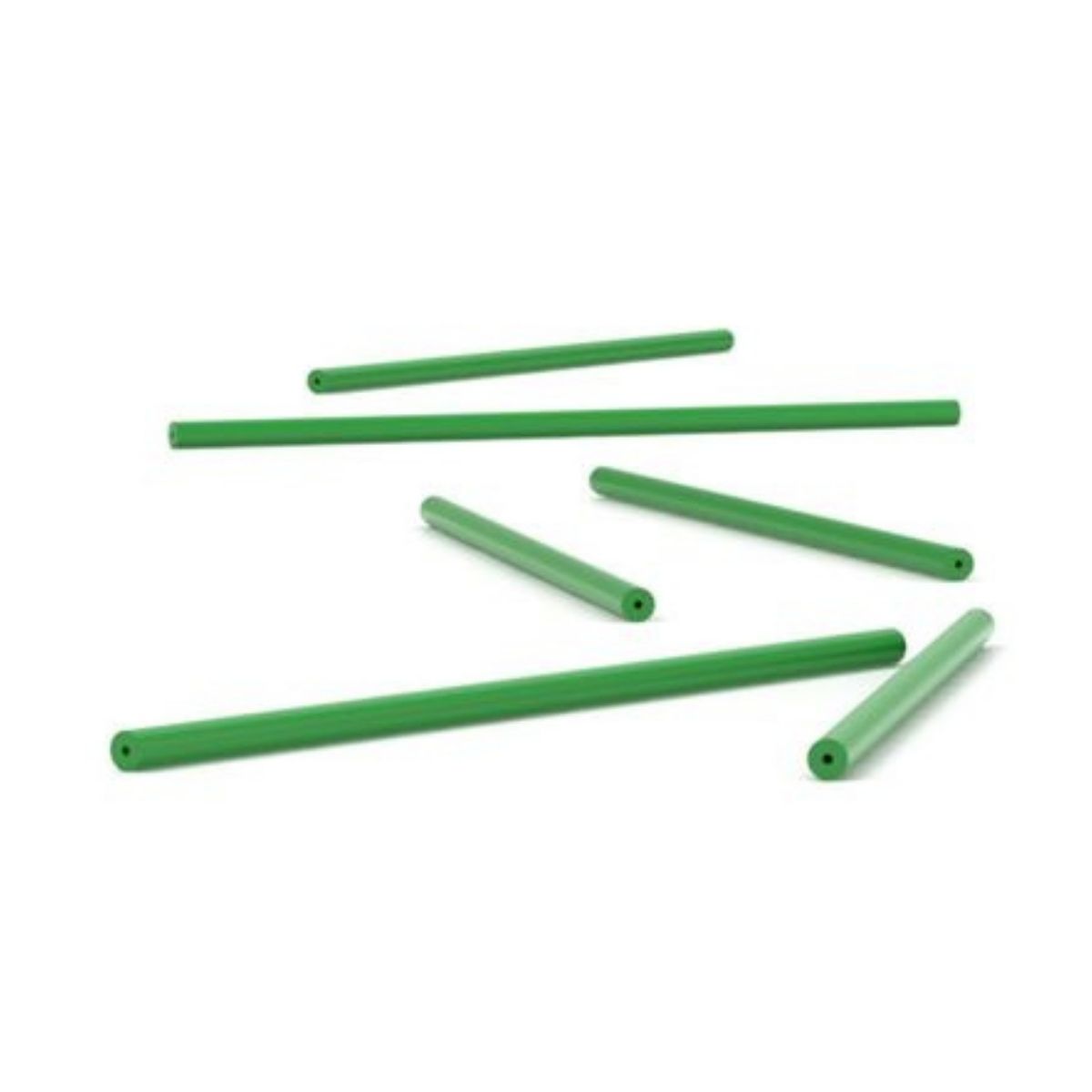

Idex – Fluidic Tubing Sleeves – 1/32 inches outer diameter FEP Tubing Sleeves

Description

Available products of 1/32 inches outer diameter FEP Tubing Sleeves

Our FEP Tubing Sleeve facilitates easy connection of capillary tubing to standard, coned ports. Manufactured from FEP they offer enhanced chemical compatibility. By using a sleeve instead of a modified ferrule, dead volume in the receiving port is minimized, ensuring better results.

---

List of available 1/32 inches outer diameter FEP Tubing Sleeves

Technical Specifications

Tubing sleeve outer diameter	Tubing sleeve inner diameter	For tubing outer diameter	Length	Pressure Rating Max	Material	Colour
1/32 inches	0.003 inches	20 µm to 60 µm	1.6 inches	1750 psi/121 bar	Genuine Teflon™ FEP Resin	Natural
1/32 inches	0.007 inches	125 µm to 165 µm	1.6 inches	1750 psi/121 bar	Genuine Teflon™ FEP Resin	Yellow
1/32 inches	0.009 inches	175 µm to 215 µm	1.6 inches	1750 psi/121 bar	Genuine Teflon™ FEP Resin	Natural
1/32 inches	0.011 inches	225 µm to 265 µm	1.6 inches	1750 psi/121 bar	Genuine Teflon™ FEP Resin	Blue
1/32 inches	0.013 inches	275 µm to 315 µm	1.6 inches	1750 psi/121 bar	Genuine Teflon™ FEP Resin	Orange
1/32 inches	0.0155 inches	340 µm to 380 µm	1.6 inches	1750 psi/121 bar	Genuine Teflon™ FEP Resin	Green
