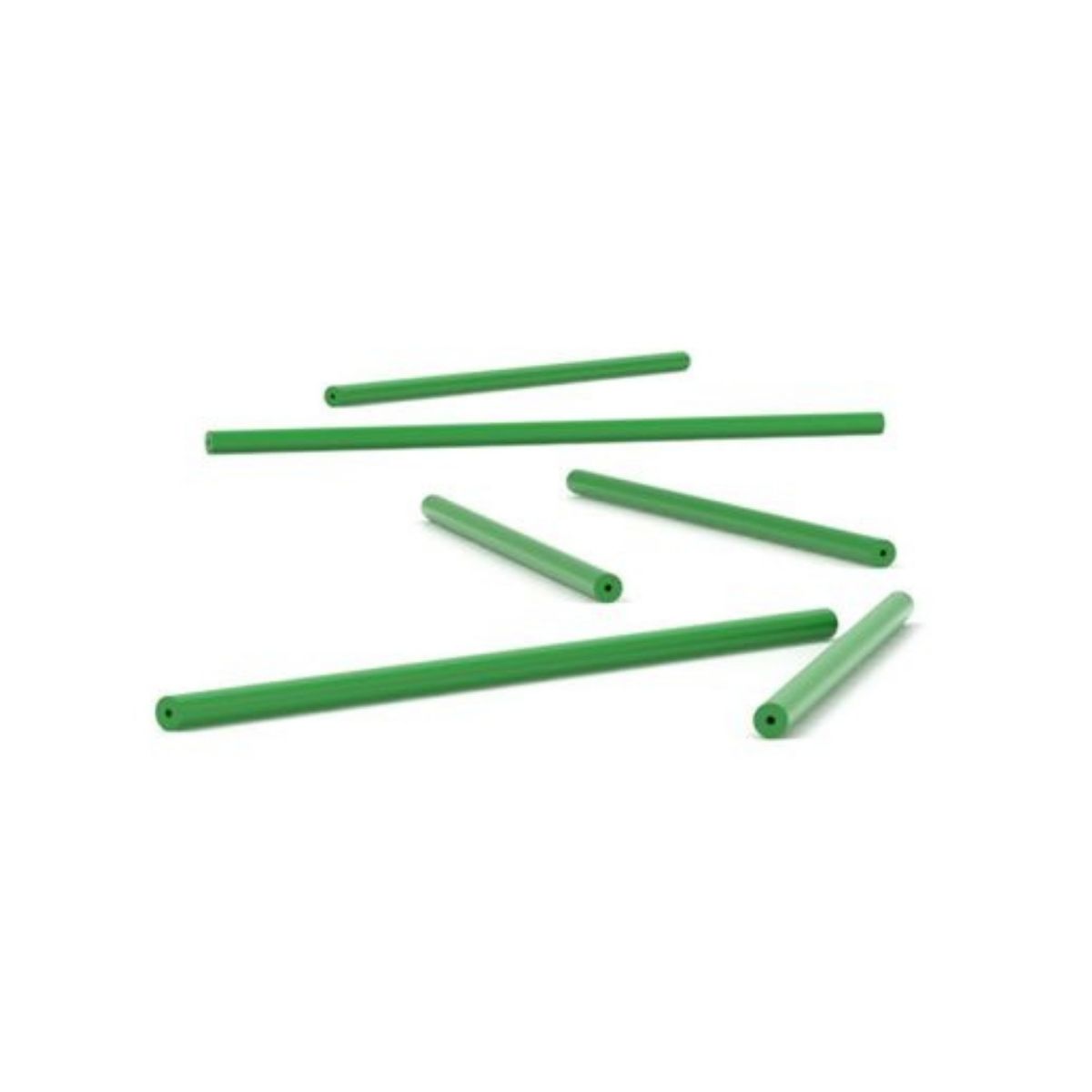

Idex – Fluidic Tubing Sleeves – Dupont® FEP Tubing Sleeves
Our Dupont FEP Tubing Sleeve is carefully manufactured using FEP fluoropolymer – a highly inert, melt-processed polymer that serves as an excellent alternative to PTFE. It is prepared using our in-house extruded tubing, our sleeves provide better concentricity and easy insertion of capillary tubing. Additionally, by using a sleeve instead of a modified ferrule, dead volume in the receiving port is minimized, ensuring better results.
Description
Key Features
Available products of Dupont® FEP Tubing Sleeves
Our FEP Tubing Sleeve is carefully manufactured using Teflon™ FEP resin fluoropolymer – a highly inert, melt-processed polymer that serves as an excellent alternative to PTFE. It is prepared using our in-house extruded tubing, our sleeves provide better concentricity and easy insertion of capillary tubing. Additionally, by using a sleeve instead of a modified ferrule, dead volume in the receiving port is minimized, ensuring better results. It is designed for use with the A-350 cutter.
List of available Dupont® FEP Tubing Sleeves
Technical Specifications
| Tubing sleeve outer diameter | Tubing sleeve inner diameter | For tubing outer diameter | Length | Pressure Rating Max | Material | Colour |
| 1/16 inches | 0.0155 inches | 340 µm to 380 µm | 2.0 inches | 4000 psi/276 bar | Genuine Teflon™ FEP Resin | Green |
| 1/16 inches | 0.021 inches | 480 µm to 520 µm | 2.0 inches | 4000 psi/276 bar | Genuine Teflon™ FEP Resin | Natural |
| 1/16 inches | 0.033 inches | 785 µm to 825 µm | 2.0 inches | 4000 psi/276 bar | Genuine Teflon™ FEP Resin | Blue |
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Medical
- Oil & Gas
- Pharmaceutical
- Powders & Pigments / Coating
Additional information
| Applications | Consumables |
|---|---|
| Markets | Singapore |
| Solutions | Analytical consumables & supplies |
