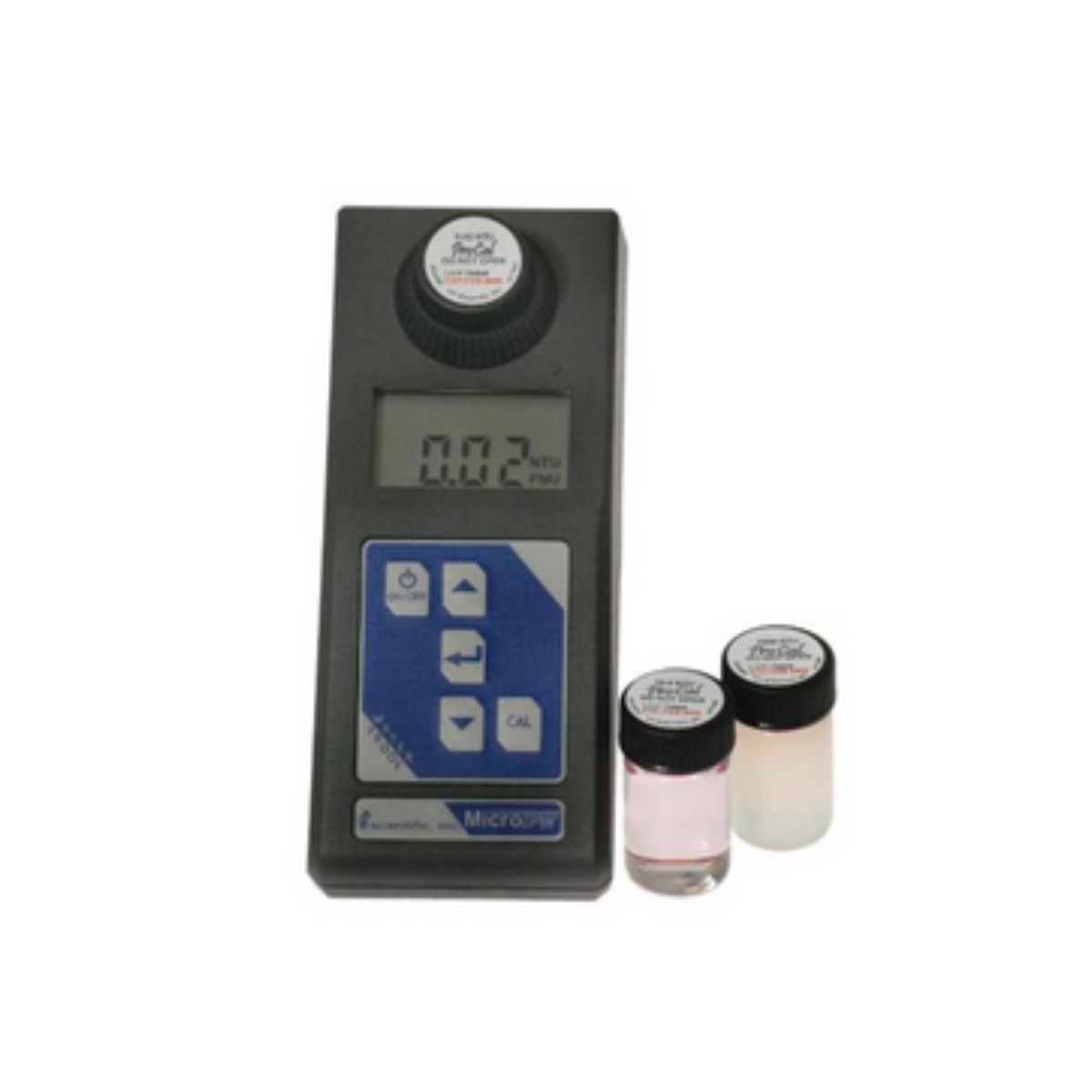

HF Scientific – Environmental Testing Equipment – MicroTPI Field Portable Turbidimeter (Infrared)
For Turbidity Testing
Designed to provide the ease of portability needed in the field with rugged durability, the MicroTPI is a necessity for anyone monitoring turbidity on the go. The shock-resistant carrying case holds everything necessary for field operation while the instrument itself removes easily to go wherever it is needed. With resolution of 0.01 NTU and an extended range to 1,100 NTU, the Infrared MicroTPI is a perfect partner for field use.
MicroTPI Field Portable Turbidimeter (IR), 0 1100 NTU includes carrying case, one set of ProCal Primary calibration standards (0.02, 10, 1000NTU), indexing rings, 4 AAA alkaline batteries, operator’s manual and measuring cuvettes with light shield caps.
Technical Specifications
| Conformance | ISO7027 Method (IR) |
| Range | Auto ranging from 0 – 1100 NTU |
|---|---|
| Resolution | 0.01 NTU < 100 NTU0.1 NTU < 100 – 999.9 NTU1 NTU < 1000 – 1100 NTU |
| Accuracy | ± 2% of reading or ± 0.01 NTU (0-500 NTU)± 3% of reading (500-1100 NTU) |
| Response Time | 14 seconds |
| Power Supply | 4 – AAA alkaline batteries (over 5000 tests) |
| Display | 4 digit (7 segment) LCD |
| Principle of Operation | Nephelometric |
| Certification | CE, NEMA 4X. Designed to meet IP67 |
| Light Source | Infrared LED (860nm) |
| Sample Cells | 10 ml |
Key Features
- Auto ranging 0 – 1100 NTU: Instrument senses turbidity level of sample and automatically adjusts to the appropriate measurement
- Rugged portable carrying case: Ensures durability and convenience no matter where your sample location happens to be
- Simple calibration procedures: Calibration initiated with the push of a button ensures accurate readings
- Waterproof: Waterproof housing allows sample measuring and cleaning in any wet environment
- Completely self-contained: Contains everything you need, including battery pack, manual, and calibration standards
- Long battery life: Over 5000 Tests on a single set of 4 – AAA alkaline batteries
- ProCal calibration standards: Quick and easy calibration across all ranges without the need to mix Formazin
