Haas – CNC Vertical Machining Centers – 50-Taper Standard
Every Haas vertical machining center (VMC) provides the features and performance you need, making it the best investment you’ve ever considered – providing more utility, flexibility, and productivity than you’ve ever imagined.
Below are just a few of the features that make Haas the high-productivity, high-value leader. And the legendary Haas control makes every Haas VMC easy to operate. Built with the operator and programmer in mind, it’s packed with intuitive features you won’t find on any other CNC machining center.
Technical Specifications
| Max Weight on Table (evenly distributed) | 4000 lb / 1814 kg |
| Spindle max rating | 30 hp / 22.4 kW |
| Spindle max speed | 7500 rpm |
| Spindle max torque | 340 ft-lb / 460 Nm at 700 rpm |
| Cooling | Liquid Cooled |
| Axis motors: max thrust X | 3400 lb / 15124 N |
| Axis motors: max thrust Y | 4100 lb / 18238 N |
| Axis motors: max thrust Z | 5600 lb / 24910 N |
Available Models
Technical Specifications
| VF-3YT/50 | |
| Travels: X axis | 40 ” / 1016 mm |
| Travels: Y axis | 26 ” / 660 mm |
| Travels: Z axis | 25 ” / 635 mm |
| Spindle Nose to Table | max 32.9 ” / 836 mm min 7.9 ” / 200 mm |
| Table length x width | 52 ” x 23 ” / 1321 mm x 584 mm |
| Feedrates: rapids on X, Y, Z | 710 in/min / 18.0 m/min |
| Feedrates: max cutting | 500 in/min / 12.7 m/min |
Product overview: VF-3YT/50
Vertical Machining Center; 40″ x 26″ x 25″ (1016 x 660 x 635 mm), 50- taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chip auger, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.
Technical Specifications
| VF-5/50 | |
| Travels: X axis | 50 ” / 1270 mm |
| Travels: Y axis | 26 ” / 660 mm |
| Travels: Z axis | 25 ” / 635 mm |
| Spindle Nose to Table | max 32 ” / 813 mm min 7 ” / 178 mm |
| Table length x width | 52 ” x 23 ” / 1321 mm x 584 mm |
| Feedrates: rapids on X, Y, Z | 710 in/min / 18.0 m/min |
| Feedrates: max cutting | 500 in/min / 12.7 m/min |
Product overview: VF-5/50
Vertical Machining Center; 50″ x 26″ x 25″ (1270 x 660 x 635 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm,30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chip auger, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.
Technical Specifications
| VF-5/50XT | |
| Travels: X axis | 60 ” / 1524 mm |
| Travels: Y axis | 26 ” / 660 mm |
| Travels: Z axis | 25 ” / 635 mm |
| Spindle Nose to Table | max 32.9 ” / 836 mm min 7.9 ” / 201 mm |
| Table length x width | 62 ” x 23 ” / 1575 mm x 584 mm |
| Feedrates: rapids on X, Y, Z | 710 in/min / 18.0 m/min |
| Feedrates: max cutting | 500 in/min / 12.7 m/min |
Product overview: VF-5/50XT
Vertical Machining Center; 60″ x 26″ x 25″ (1524 x 660 x 635 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm,30+1 side-mount tool changer, 710 ipm (18 m/min) rapids, color remote jog handle, programmable coolant nozzle, automatic chip auger, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon(360 liter) flood coolant system.
Technical Specifications
| VF-6/50 | |
| Travels: X axis | 64 ” / 1626 mm |
| Travels: Y axis | 32 ” / 813 mm |
| Travels: Z axis | 30 ” / 762 mm |
| Spindle Nose to Table | max 35 ” / 889 mm min 5 ” / 127 mm |
| Table length x width | 64 ” x 28 ” / 1626 mm x 711 mm |
| Feedrates: rapids on X, Y, Z | 600 in/min / 15.2 m/min |
| Feedrates: max cutting | 500 in/min / 12.7 m/min |
Product overview: VF-6/50
Vertical Machining Center; 64″ x 32″ x 30″ (1626 x 813 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW), 7500 rpm, 30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.
Technical Specifications
| VF-7/50 | |
| Travels: X axis | 84 ” / 2134 mm |
| Travels: Y axis | 32 ” / 813 mm |
| Travels: Z axis | 30 ” / 762 mm |
| Spindle Nose to Table | max 35 ” / 889 mm min 5 ” / 127 mm |
| Table length x width | 84 ” x 28 ” / 2134 mm x 711 mm |
| Feedrates: rapids on X, Y, Z | 600 in/min / 15.2 m/min |
| Feedrates: max cutting | 500 in/min / 12.7 m/min |
Product overview: VF-7/50
Vertical Machining Center; 84″ x 32″ x 30″ (2134 x 813 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW) vector drive, 7500 rpm,30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger system, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.
Technical Specifications
| VF-8/50 | |
| Travels: X axis | 64 ” / 1626 mm |
| Travels: Y axis | 40 ” / 1016 mm |
| Travels: Z axis | 30 ” / 762 mm |
| Spindle Nose to Table | max 35 ” / 889 mm min 5 ” / 127 mm |
| Table length x width | 64 ” x 36 ” / 1626 mm x 914 mm |
| Feedrates: rapids on X, Y, Z | 600 in/min / 15.2 m/min |
| Feedrates: max cutting | 500 in/min / 12.7 m/min |
Product overview: VF-8/50
Vertical Machining Center; 64″ x 40″ x 30″ (1626 x 1016 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW), 7500 rpm, 30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.
Technical Specifications
| VF-9/50 | |
| Travels: X axis | 84 ” / 2134 mm |
| Travels: Y axis | 40 ” / 1016 mm |
| Travels: Z axis | 30 ” / 762 mm |
| Spindle Nose to Table | max 35 ” / 889 mm min 5 ” / 127 mm |
| Table length x width | 84 ” x 36 ” / 2134 mm x 914 mm |
| Feedrates: rapids on X, Y, Z | 600 in/min / 15.2 m/min |
| Feedrates: max cutting | 500 in/min / 12.7 m/min |

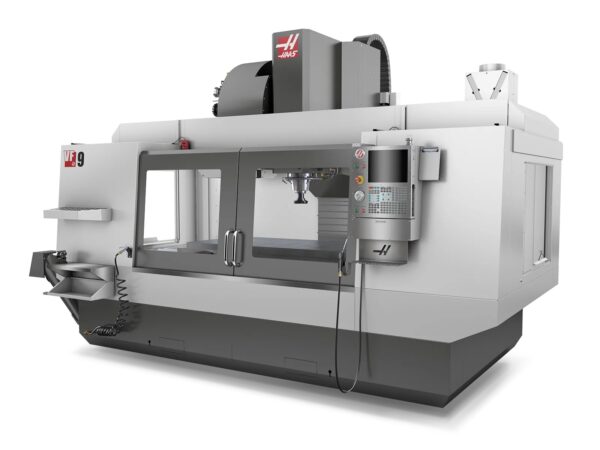

Product overview: VF-9/50
Vertical Machining Center; 84″ x 40″ x 30″ (2134 x 1016 x 762 mm), 50-taper geared-head, 30-hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 600 ipm (15.2 m/min) rapids, automatic chip auger system, programmable coolant nozzle, color remote jog handle, power-failure detection module, 1 GB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 95-gallon (360 liter) flood coolant system.
Technical Specifications
| VF-10/50 | |
| Travels: X axis | 120 ” / 3048 mm |
| Travels: Y axis | 32 ” / 813 mm |
| Travels: Z axis | 30 ” / 762 mm |
| Spindle Nose to Table | max 35 ” / 889 mm min 5 ” / 127 mm |
| Table length x width | 120 ” x 28 ” / 3048 mm x 711 mm |
| Feedrates: rapids on X | 360 in/min / 9.1 m/min |
| Feedrates: rapids on Y, Z | 600 in/min / 15.2 m/min |
| Feedrates: max cutting | 360 in/min / 9.1 m/min |
Product overview: VF-10/50
Vertical Machining Center; 120″ x 32″ x 30″ (3048 x 813 x 762 mm), 50- taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15″ color LCD monitor, USB port, memory lock keyswitch, power-failure detection module, 1 GB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.
Technical Specifications
| VF-11/50 | |
| Travels: X axis | 120 ” / 3048 mm |
| Travels: Y axis | 40 ” / 1016 mm |
| Travels: Z axis | 30 ” / 762 mm |
| Spindle Nose to Table | max 35 ” / 889 mm min 5 ” / 127 mm |
| Table length x width | 120 ” x 28 ” / 3048 mm x 711 mm |
| Feedrates: rapids on X | 360 in/min / 9.1 m/min |
| Feedrates: rapids on Y, Z | 600 in/min / 15.2 m/min |
| Feedrates: max cutting | 360 in/min / 9.1 m/min |
Product overview: VF-11/50
Vertical Machining Center; 120″ x 40″ x 30″ (3048 x 1016 x 762 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15″ color LCD monitor, USB port, memory lock keyswitch, power-failure detection module, 1 GB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.
Technical Specifications
| VF-12/50 | |
| Travels: X axis | 150 ” / 3810 mm |
| Travels: Y axis | 32 ” / 813 mm |
| Travels: Z axis | 30 ” / 762 mm |
| Spindle Nose to Table | max 35 ” / 889 mm min 5 ” / 127 mm |
| Table length x width | 150 ” x 28 ” / 3810 mm x 711 mm |
| Feedrates: rapids on X | 360 in/min / 9.1 m/min |
| Feedrates: rapids on Y, Z | 600 in/min / 15.2 m/min |
| Feedrates: max cutting | 360 in/min / 9.1 m/min |

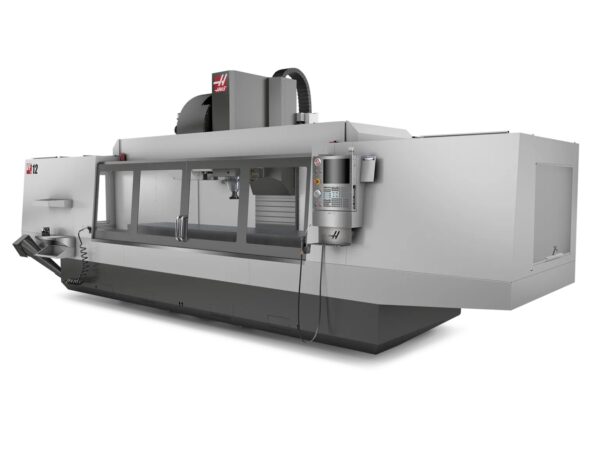

Product overview: VF-12/50
Vertical Machining Center; 150″ x 32″ x 30″ (3810 x 813 x 762 mm), 50-taper geared-head, 30 hp (22.4 kW) vector drive, 7500 rpm, 30+1 side-mount tool changer, 360 ipm (9.1 m/min) X rapids, 600 ipm (15.2 m/min) Y & Z rapids, automatic chip auger, programmable coolant nozzle, color remote jog handle, 15″ color LCD monitor, USB port, memory lock keyswitch, power-failure detection module, 1 GB program memory, rigid tapping and 95-gallon (360 liter) flood coolant system. Outriggers standard. Anchor kit highly recommended for installation.
Key Features
- Solid foundation
- Advanced spindle
- Tool management
- Extensive lineup
Key Industries
- Aerospace
- Automotive
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
Haas Automation is the largest machine tool builder in the western world, manufacturing a complete line of CNC vertical machining centers, horizontal machining centers, CNC lathes, and rotary products. High-quality Haas machines are engineered for simple maintenance, easy setup, and low-cost operation.
