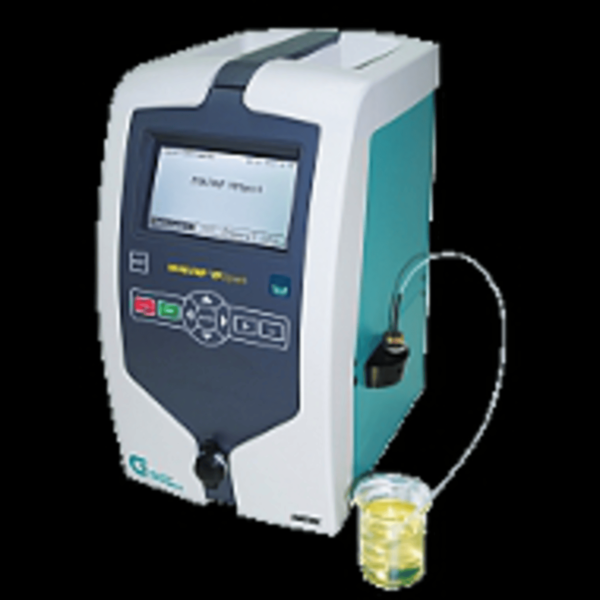

MINIVAP is a highly versatile portable vapor pressure tester that features best-in-class precision and a pressure range of 0-2000 kPa. It is the first analyzer that demonstrates excellence in engineering by earning certificates for robustness and durability. Based on Grabner´s cutting-edge Cockpit™ technology, the instrument offers unmatched networking capabilities and enables worldwide access to analyzers.

ASTM D6378

Vapor Pressure of Gasoline and Petrochemicals (VPx)
Grabner´s “Triple Expansion Method” with determination of the dissolved air in the sample. No cooling and air Saturation required!

ASTM D5191

DVPE Dry Vapor Pressure Equivalent (w/ EPA and CARB correlation formulas)
Standard “Mini-Method” measured against vacuum and a correlation formula for the calculation of the DVP. Requires sample preparation, including cooling of the sample to 0°C (32°F) and triple air saturation prior to the measurement.

ASTM D6377

Vapor Pressure of Crude Oil (VPCRx)
“Single-Expansion Method” for vapor pressure of Crude Oil developed by GRABNER INSTRUMENTS. Better precision than classical ASTM D323 RVP method, ASTM correlation formula to D323 available. Does not require sample preparation: Saves time, increases precision and eliminates operator bias.

ASTM D6897

Vapor Pressure of LPG up to 2000 kPa
Easy, quick, fully automatic and accurate measurement of liquefied petroleum gas. Replaces the manual bomb method ASTM D1267. ASTM D6897 eliminates manual operation and cleaning and minimizes sample waste. Yields results in excellent correlation with ASTM D1267, but with a highly improved precision.

ASTM D5188

V/L-Ratio (TV/L)
Determines V/L ratio of non-viscous liquids including hydrocarbons like gasoline, solvents and other highly volatile compounds. Instrument performs fully automatically, providing results in minutes. No additional equipment is required.

Available Models

Technical Specifications

Temperature RangeMeasured: 0 to 120°C (user programmable)
Power Requirements100-264 V AC, 45-63Hz, 80W (Switching Power Supply)
Dimensions (W x H x D)293 x 390 x 280 mm (10.5 x 15.4 x 11 in.)
Weight (KG)10.5 kg (28 lb)
Pressure RangeVP Vision: 0 to 2000 kPa (0 to 290 psi) VPL Vision: 0 to 150 kPa (0 to 21.8 psi)
Sample Volume1 mL (2.2 mL per rinsing)
Measurement Time~ 5 min., depending on method
· Unmatched precision for the VP measurement of gasoline and aviation fuels, crude oil, LPG, hydrocarbon solvents and chemical compounds
· Pressure range from 0 – 2000 kPa (VPL Vision: 0 – 150 kPa)
· Unique 2-D Correction™ to ensure highest measuring precision over the full testing range
· Built-in shaker to generate rapid equilibrium for crude oil and V/L tests
· Smallest sample size: 1 ml w/o rinsing
· Fast measurements: Results in 5 minutes
· Automatic sample introduction and cell cleaning through piston-based design
· No vacuum pump or sample preparation necessary!
· Sampling ProTM valve design, best in class for minimizing sample cross contamination
· Thermoelectric temperature control – no external cooling necessary
· Maintenance free through central lubrication system; rapid oil refill w/o disassembling
· Cleanable, reuseable filter assembly
· 10“ industry-proven full color touchscreen
· Modern, app-like user interface with big buttons; works also with gloves – no stylus required!
· Customizeable measurement templates
· Unique PDF results sheet with pressure and temperature graphics
· Fast Mode™ Method: Runs D5191 and D5188 in combination
· Full calibration history and calibration backup function
· Certified for use in cold, dry and damp heat environment (EN60068-2-1, EN 600068-2-78, EN 60068-2-14)
· Shockproof and vibration-resistant portable design (EN 60068-2-6, EN 60068-2-27)
· Ideal for laboratory and field use
· 2 years warranty

Technical Specifications

Temperature RangeMeasured: 0 to 120°C (user programmable)

Power Requirements

90-264 V AC, 45-63Hz, 200W (Switching Power Supply)
Dimensions (W x H x D)253 x 368 x 277 mm (10 x 14.5 x 10.9 in)
Weight (KG)9 kg (20 lb)
Pressure Range0 to 1000 kPa (0 to 145 psi)
Sample Volume
Measurement Time
·  Sampling Pro™ Valve Design
·  No vacuum pump or sample preparation necessary!
·  Integrated shaker for crude oil samples and rapid equilibrium
·  Automatic piston lubrication
·  Maintenance free, heavy duty measuring cell
·  Smallest sample size: 1 ml w/o rinsing
·  Fast measurements: Results in 5 minutes
·  One button usability
·  Enhanced report generation
·  Ergonomic, portable and rugged design
·  Large, durable display – fit for field use
·  MINIWIN for seamless LIMS-integration
·  User access control
·  Audit trailing

Technical Specifications

Temperature Range20 to 60°C (68 to 140°F)
Power Requirements100/120/230/240 V AC, 50/60 Hz, 65 W
Dimensions (W x H x D)253 x 368 x 277 mm (10 x 14.5 x 10.9 in)
Weight (KG)50 kg (110 lb)
Pressure Range0 to 1000 kPa (0 to 145 psi)
Sample Volume
Measurement Time
· On-line Compliance Monitoring for Vapor Pressure of Gasoline, LPG and Crude Oil and Vapor/Liquid-Ratio Temperature of Gasoline (V/L=20)
· One Single Instrument for up to 2 Sample Streams
· Multiple Point Measurements at Different Nominal Pressures
· Automatic Calibration & Offset Correction
· Temperature Controlled Sample Conditioning System
· 7 Minutes Cycle Time
· Explosion Proof-Class I
♦ NFPA 496 (US) ♦ EN 60079-2 and EN 60079-0 (EU)

Key Industries

  • Chemical
  • Environmental
  • Food & Beverage
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating

Brand

Grabner Instruments

Grabner Instruments, a subsidiary of AMETEK, Inc. is known as one of the most innovative companies world wide developing and manufacturing automatic petroleum testing equipment. Grabner Instruments’ success is based on the development of highly innovative, fully automated, portable, rugged and fast & easy to operate fuel and oil analyzers for the highly accurate quality control in the laboratory as well as for fast on-site tests in mobile laboratories.
