The Miniflash Flash Point Testers are uniquely designed for the determination of flash points of liquids and solids, using the Grabner flash point detection method of measuring the instantaneous pressure increase inside the continuously closed chamber.

The Miniflash Flash Point Testers comply with the following standards:

  • ASTM D 6450 (Flash Point by Continuously Closed Cup)
  • ASTM D 7094 (Flash Point by Modified Continuously Closed Cup)

The Miniflash Flash Point Testers correlate to the following standards:

  • ASTM D 93
  • ASTM D 56
  • ISO 2719 (EN/DIN 13736)
  • ISO 13736
  • IP 170

Available Models

Technical Specifications

Temperature range: MINIFLASH FP Vision0 to 120°C (32 to 248°F) without cooling Down to -25°C (-13°F) with water cooling
Temperature range: MINIFLASH FPH Vision10 to 400°C (50 to 750°F)
Power requirements100/110/120/230/240 V AC 50/60 Hz, max. 180 W (optional car adapter for field use)
Dimensions (W x H x D)253 x 368 x 277 mm (10″ x 14.5″ x 10.9″)
Weight (KG)10.2-11.2 kg (22.4 lb)

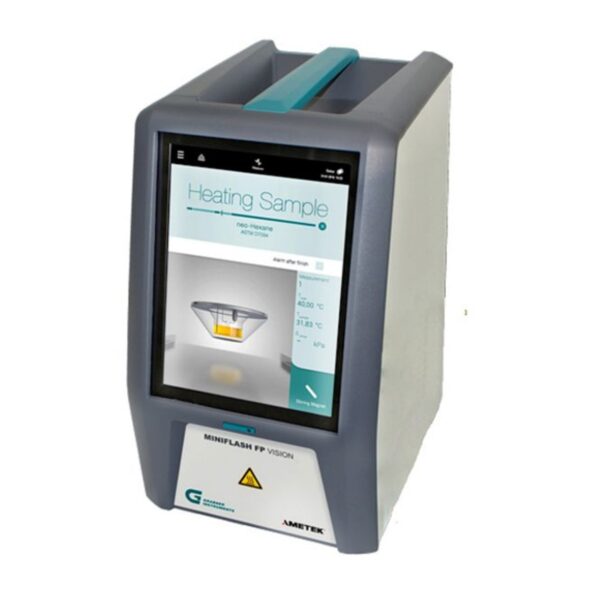

MINIFLASH FP Vision continuously closed cup design and small sample volume of only 1-2 ml offer maximum safety. No offensive fumes are released in the testing area and little to no sample waste is registered when performing a flash point test. The fast thermoelectric cooling at the end of each flash point test plus the easy handling of the instrument also save expensive labor time.

MINIFLASH FP Vision is part of the Vision analyzer line. Vision analyzers support remote access to test results via the COCKPIT Software and are equipped with a full-color touchscreen. The touchscreen of the MINIFLASH Vision features an easy-to-use graphical interface and do away with the need for training. Any technician is capable of running a flash point test with MINIFLASH FP Vision! As other analyzers of the Vision product line, MINIFLASH FP Vision offers hassle-free communication with USB, Ethernet, LIMS and PCs and nearly unlimited storage capacity for test results.

Grabner Instruments offers two versions of MINIFLASH FP Vision: MINIFLASH FPH Vision, for high temperatures up to 400°C, and MINIFLASH FP Vision, for temperatures between -25°C and 120°C.

Key Features

  • Flash point according to ASTM D6450/SHT0768 (Flash Point by Continuously Closed Cup) and ASTM D7094 (Flash-Point by Modified Continuously Closed Cup)
  • Equivalent EN ISO 2719, excellent correlation to ASTM D56, ISO13736, IP170
  • ASTM COMMITTEE STATEMENT: “There is no statistically significant bias observed between ASTM D7094 and ASTM D93 Procedure A.”
  • Approved for diesel fuel and kerosene specifications ASTM D975, D396, D2880, D3699
  • Approved for ASTM specifications of recycled fuel and biodiesel
  • New methods for EN ISO 3679 and EN ISO 3680 simulation
  • Dilution Flashpoint Testing
  • Go / No Go Flashpoint Testing
  • Fast screening methods
  • Customized screening methods for higher flexibility
  • Automatic ignition cleaning method
  • Ignition Protection Technology guarantees safety first and foremost
  • No open flame or offensive vapors in the lab
  • Highest accuracy
  • Remotely operable
  • Big, color touchscreen for convenient, intuitive menu navigation
  • Hassle-free communication and data transfer via USB, Ethernet, LIMS and the PC software COCKPIT for Vision analyzers
  • User rights management and statistical quality control with COCKPIT Software for Vision analyzers
  • Worldwide standard method for the flavors and fragrances industry
  • Short measuring time due to small sample volume of 1-2 ml
  • Combustion Analysis
  • Excellent thermoelectric heating and cooling regulation with Advanced Peltier Coooling Technology

Technical Specifications

Temperature Range10 to 400°C (50 to 750°F)
Power Requirements100/110/230 V AC 50/60 Hz, 150 W
Dimensions (W x H x D)196 x 315 x 175 mm (7.7″ x 12.4″ x 6.9″)
Weight (KG)12 kg (26 lb)
Repeatability1.9°C (3.4°F)
Reproducibility3.1°C (5.6°F)
  • Complies with the latest flashpoint standard ASTM D7094 – MCCCFP (Flash-Point by Modified Continuously Closed Cup) and ASTM D6450 – CCCFP (Flash-Point by Continuously Closed Cup)
  • Excellent Correlation to ASTM D93, D56, ISO2719 (EN/DIN 22719), ISO13736, IP170
  • Maximum Safety through Ignition Protection Technology™: only 1-2 ml sample, no open flame, continuously closed cup, no offensive vapors in the lab
  • Approved by: US D.O.T. and RCRA
  • Approved by: NATO; 6630-25-145-3256, 6630-25-146-0895, 6630-01-534-1774 and the US NAVY – NSN: 6625-01-472-6783
  • Approved for Diesel Fuel and Kerosene specifications ASTM D975, D396, D2880, D3699
  • Approved for the ASTM specifications of recycled fuel and biodiesel
  • The world wide standard in the flavors and fragrances industry
  • The highest precision: details see below (Precision data)
  • Short measuring time (depends on sample type) due to small sample volume of 1-2 ml
  • Fast thermoelectric temperature regulation by Peltier Protection Technology™
  • Easiest handling (instrument-user dialogue) and fast cleaning of the sample cup
  • Wide Measuring Range: -25 to 400°C (-10 to 750°F)
  • Compact & portable for field use (car battery connector)
  • RS232 interface and MINIWIN software (for PC)

Technical Specifications

Temperature Range10 to 400°C (50 to 750°F)
Power Requirements100/110/230 V AC 50/60 Hz, 150 W
Dimensions (W x H x D)312 x 402 x 390 mm (12.3″ x 15.8″ x 15.3″)
Repeatability1.9°C (3.4°F)
Reproducibility3.1°C (5.6°F)
  • Fully Automatic 8 Position Sampler
  • 4 minutes Manipulation Time for 8 Samples
  • Continuous Operation – up to 80 Samples per Day!
  • Complies with the latest flashpoint standard ASTM D 7094 – MCCCFP (Flash-Point by Modified Continuously Closed Cup) and ASTM D6450 – CCCFP (Flash-Point by Continuously Closed Cup)
  • Excellent Correlation to ASTM D93, D56, ISO2719 (EN/DIN 22719), ISO13736, IP170
  • Maximum Safety through Ignition Protection Technology™: only 1-2 ml sample, no open flame, continuously closed cup, no offensive vapors in the lab
  • Approved by: US D.O.T. and RCRA
  • Approved by: NATO; 6630-25-145-3256, 6630-25-146-0895, 6630-01-534-1774 and the US NAVY – NSN: 6625-01-472-6783
  • Approved for Diesel Fuel and Kerosene specifications ASTM D975, D396, D2880, D3699
  • Approved for the ASTM specifications of recycled fuel and biodiesel
  • The world wide standard in the flavors and fragrances industry
  • The highest precision: details see below details (Precision data)
  • Short measuring time (depends on sample type) due to small sample volume of 1-2 ml
  • Fast thermoelectric temperature regulation by Peltier Protection Technology™
  • Easiest handling (instrument-user dialogue) and fast cleaning of the sample cup
  • Wide Measuring Range: 0 to 400°C (32 to 750°F)
  • Compact & portable for field use (car battery connector)
  • RS232 interface and MINIWIN software (for PC)

Key Features

MiniFlash Flash Point Tester

  • Dilution Flash Point Testing
  • Go / No Go Flash Point Testing
  • Fast Screening Methods
  • Automatic ignition cleaning method
  • Maximum safety through Grabner continuously closed cup method
  • 1 – 2 ml sample size
  • No Open Flame, no offensive vapours in the lab
  • Highest accuracy
  • Wide temperature range: -25 to 400°C with external cooling (MINIFLASH FLPH TOUCH)
  • Unique combustion analysis
  • Fully remote operable
  • Big, color touch-screen for convenient, intuitive menu navigation
  • Touch Screen Runs on Microsoft® Windows®: Full integration with network, LIMS and PC
  • Hassle-free communication and data transfer via USB and Ethernet
  • MINIWIN software for remote control and seamless LIMS-integration (option)
  • Available with an 8 position Autosampler
  • USB printer support
  • Good Laboratory Practice: User Access Control
  • Portable for Mobile and Field Use (car battery connector)
  • Worldwide standard method for the flavours and fragrances industry
  • Approved for the ASTM specifications of recycled fuel and biodiesel
  • Short measuring time (depends on sample type) due to small sample volume of 1 – 2 ml
  • Fast thermoelectric temperature regulation (Peltier elements, optimized for life time)

Key Industries

  • Chemical
  • Environmental
  • Food & Beverage
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
