GETECH – Fully Automatic Inline Router With Board Handling – The RBM

Name: GETECH - Fully Automatic Inline Router With Board Handling - The RBM - All Products | DKSH Technology
SKU: 1578370638073

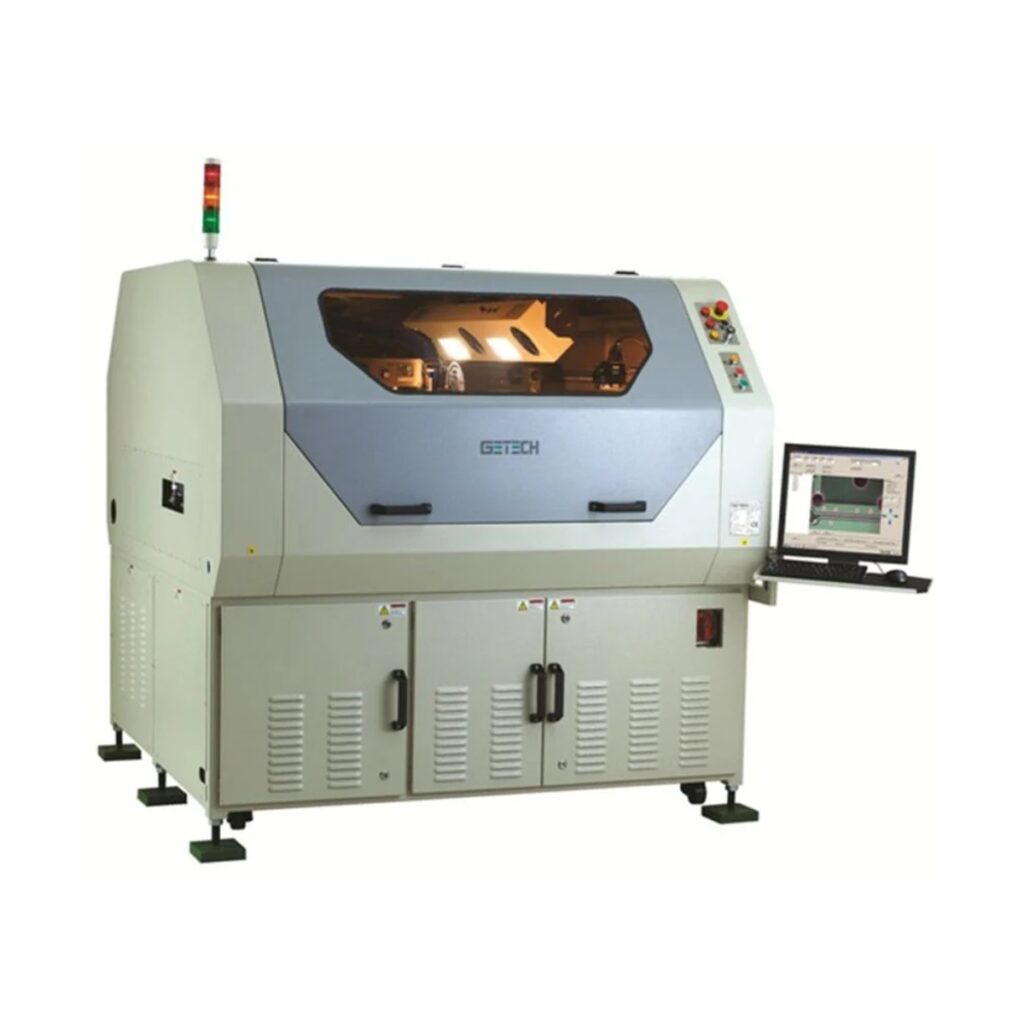

The RBM is a sophisticated and versatile fully-automated dual station de-panelling system. It is fitted with an auto conveyor width adjustment feature and also has various other tools to optimise the routing process based on your workflow.

Inquire Now

Overview

Features

Specifications

Designed for fully automatic end of line processing

Technical Specifications

Panel
Size	320mm x 250mm
Thickness	0.5mm – 2.0mm
Component height	12mm (Subjected to review)
Speed and Accuracy
Non-routing speed	1400mm/sec
Accuracy	#ERROR!
Cutting speed	12mm (Subjected to review)
Machine Information
Dimensions (W x D x H)	1.65m x 1.50m x 1.62m

Key Features

High routing speeds up to 100mm/sec
Positioning speeds up to 1400mm/sec
Two independent work stations
PnP arm to transfer de-panelized board to further automated EOL operations
Automatic tool change (optional)
High-speed water-cooled spindle
Advanced tool management including tool life monitoring, tool wear compensation, and tool break detection
Vision assisted jog and teach facility for cutting tool paths

The RBM provides the link for a fully automated End Of Line processing. A typical sequence starts when the input conveyor receives a PCB panel. The panel is then shuttled to one of the two parallel routing stations and located onto the fixture ready for routing.

Whilst the first panel is being routed, a second board is received and shuttled to the second workstation where it waits for the first board to be routed.

After separation, the off load Pick and Place PnP accurately transfers the boards onto the next workstation ready for further EOL operations.

The RBM features user-friendly “visual” programming with the use of a camera to view the board from the perspective of the routing bit. Coordinates for straight lines, curves and interpolated profiles are taught by physically moving the routing bit to the specific coordinates, and then “teaching” the machine this position.

The Getech control software operates on a Windows^® operating system, and incorporates full programming functionality with an easy to use operator interface offering:

Diagnostic tools, multi-level password protection
Advanced tool life management, including tool broken sensor, tool diameter compensation, tool life optimization
Tracking of aberration in the spindle cooling system
Definable distance routed for vacuum filter bag and tool bit change
On-line vision assisted point to point manual teaching
Editing function, including dry run vision assisted / test run mode, copy and paste

The unrivaled performance of the RBM is achieved by the use of advanced precision manipulators on all four axis offering:

Extremely high speed linear motion, and repeatability
Maintenance free AC servomotors
Heavy duty pre-loaded re-circulating ball guides
Power off brake on the Z axis to prevent the axis from falling under its own weight
Complete PC based control, incorporating a high end motion control card

The PnP arm uses an array of anti static vacuum pads to pick up both the boards and panel frame from the fixture, the frame is then dropped into a waste bin and the boards are accurately placed onto the next work station ready for further operations.

The RBM is designed to provide a user-friendly machine. The welded base structure with glass fiber canopy, fitted with ESD safe Perspex windows, and raising doors, provides for a safe, fully enclosed machine.
