EIT – UV Broadband Instruments
Radiometers provided calibrated irradiance (W/cm2) and energy density values (J/cm2) in one to four bands. Profiling Radiometers also provide the irradiance profile (W/cm2 as a function of time) which is useful to further understand the UV conditions and compare UV systems.
Description
Radiometers provided calibrated irradiance (W/cm2) and energy density values (J/cm2) in one to four bands. Profiling Radiometers also provide the irradiance profile (W/cm2 as a function of time) which is useful to further understand the UV conditions and compare UV systems.
Available Models
Key Features
- Profiling Radiometer that provides UV and Temperature Profiles in addition to irradiance (W/cm2) & energy density (J/cm2) values, works with EIT 2.0 LLC UV PowerView® III Software
- Four bands (UVA, UVB, UVC and UVV), user adjustable effective sample rate (128-2048 Hz)
- Large memory, rechargeable batteries available in a High or Low dynamic range
- ‘Pause’ feature allows user to create eight different files on the production floor
Key Features

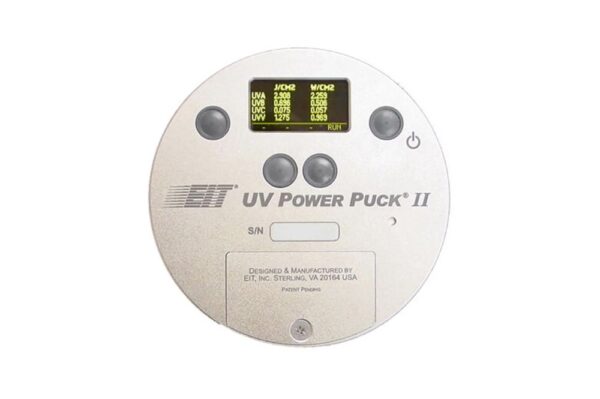

- Display with Joule/Watt values plus irradiance profile, works with UV PowerView III
- Profiler sample rate of 128 Hz, adjustable display sample rate: 25, 128 or 2048 Hz
- High Mid or Low dynamic ranges specified at time of order, user changeable batteries
- Power Puck II: Four UV bands (UVA, UVB, UVC UVV)
- UviCure Plus II: Single UV Band specified at order
Key Features
- Radiometer with UV (Joules/cm2 & Watts/cm2) information, user selectable display (Graph, Data or Reference Modes)
- User adjustable sample rates of 25, 128 or 2048 Hz
- Dynamic range (High Mid, Low) specified at time of order, user changeable batteries
- Power Puck II: Four UV bands (UVA, UVB, UVC UVV)
- UviCure Plus II: Single UV Band specified at order
Key Features

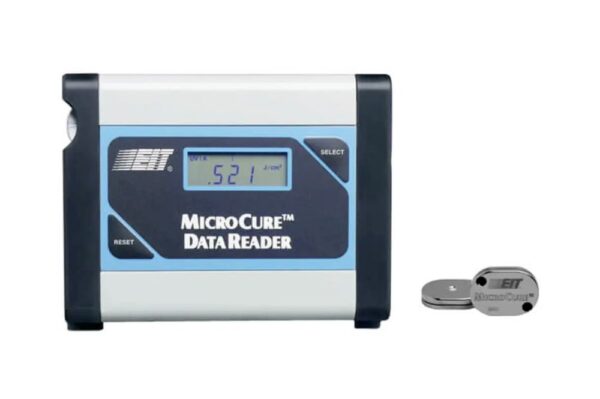

- Small UVA (320-390 nm) radiometer with a high sample rate (2048 Hz)
- Offers the ability to measure in applications where a larger radiometer will not fit
- Each MicroCure is good for 200 readings or one year, whichever comes first
- DataReader is a one-time purchase and displays the Joule/cm2 & Watt/cm2 values
- Available dynamic ranges: 10, 2 and 0.2 W/cm2
Key Features
- Hand-held UVA radiometer used to measure the output of spot-curing systems
- Displays the peak irradiance in W/cm² to determine light guide degradation.
- Available in Standard (20 Watt) or Extended Range (200 Watt) versions
- Measurement head accommodates light guides of various sizes with different adaptors
Key Industries
- Semiconductor, Solar & Electronics
Additional information
| Applications | Joining & Cutting & Curing |
|---|---|
| Markets | Singapore |
| Solutions | UV Curing |
