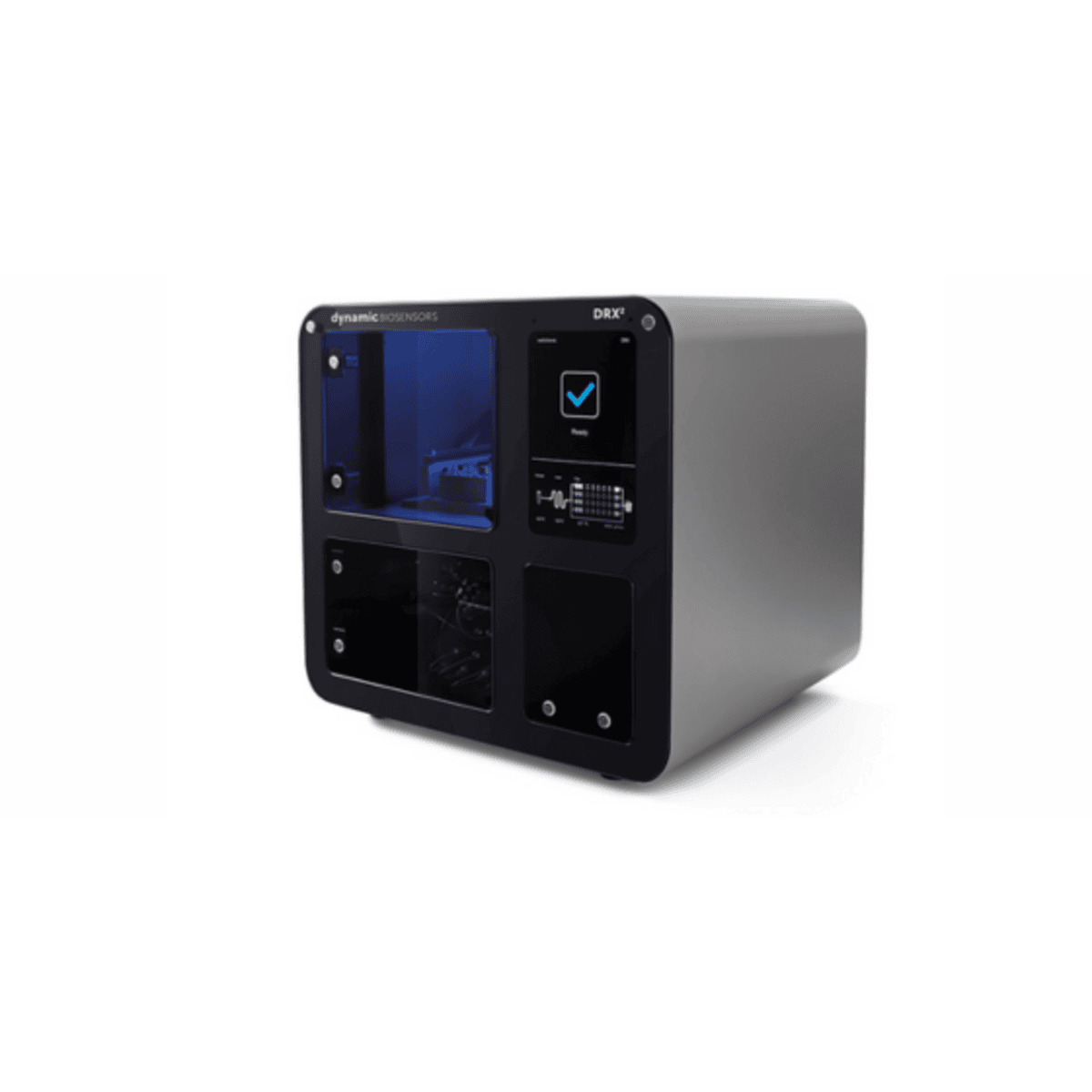

Dynamic Biosensors – Biosensor analyzer – DRX2 Series
The double color DRX2 analyzer offers the simultaneous measurement of two different species of probes on the same biochip electrode. Each sensor spot carries two nanolever sequences, one with a red tag, and one with a green. The instrument tracks the movement and position of the different nanolevers separately and simultaneously. This technology offers novel methods of investigation including same-spot controls, dual binding modelling, ideal for bispecifics and Proof of Action experiments with two nanolevers to play with, using one nanolever for capture and the second for detection.
Technical Specifications
| Limit of detection | 10 fM |
| Dissociation constant | 50 fM – 1 mM |
| Association rate constant | 1E3 – 1E8 /Ms |
| Dissociation rate constant | 1E-6 – 1E0 /s |
| Hydrodynamic diameter accuracy | 0.1 nm |
| Temperature | 8° – 75°C (chip), 10° – 40°C (autosampler) |
Key Features
Fully automated switchSENSE® instruments are 96 well plates compatible and manufactured in Germany.
Wide ranging, deep data content on molecular interactions. Binding Kinetics & Affinity | Protein Diameter
Conformational Change | Enzymatic Activity | Bispecific Binders and Avidity | Melting and Thermodynamics | Multimers & Aggregation
Functional Principle of The Unique switchSENSE Technology
Key Industries
- Biopharmaceutical and Biotechnology
- Education & Academics
- Pharmaceutical
Brand
Dynamic Biosensors is a provider of instruments, consumables, and services in the field of analytical systems for the characterization of biomolecules and molecular interactions. They are located in Martinsried, south of Munich, a vital center of Europe‘s biotechnology industry.
