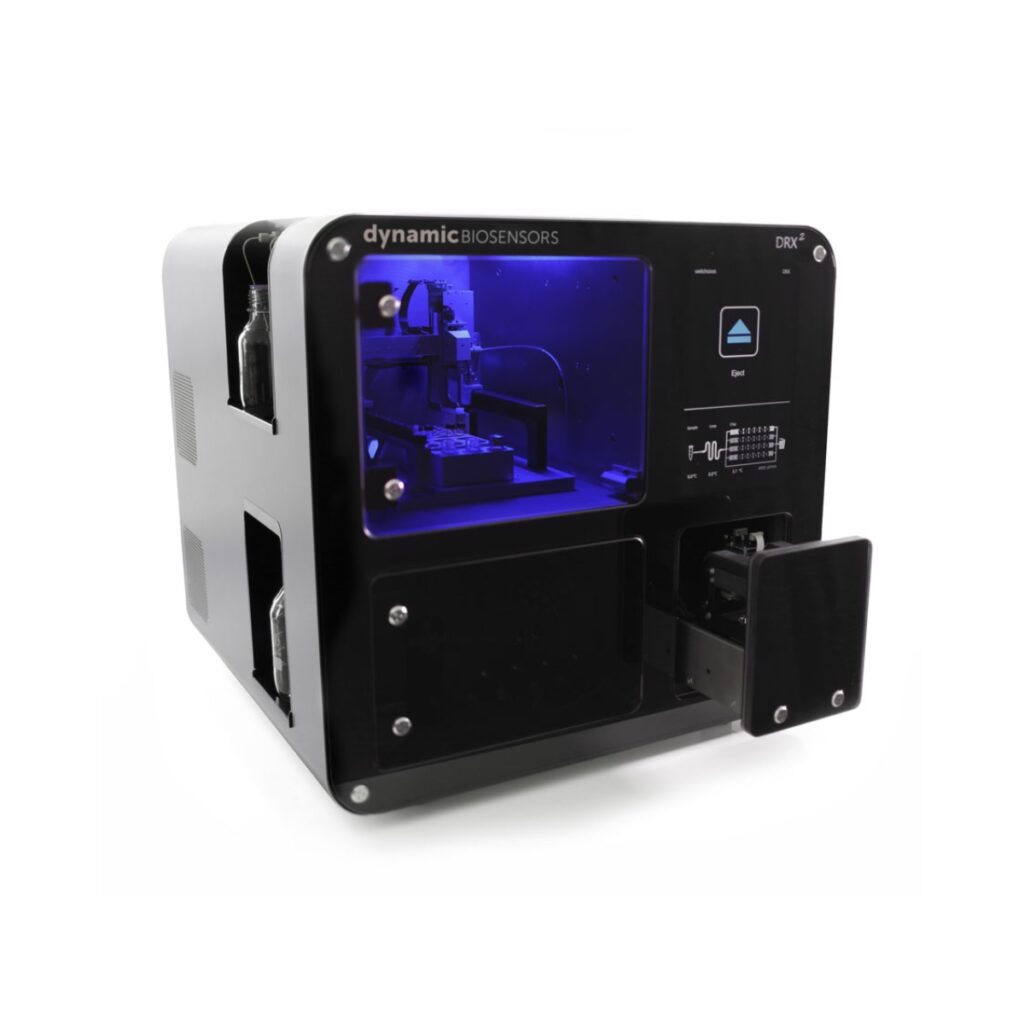

Dynamic Biosensors – Biosensor analyzer – DRX Series
The DRX analyzers combine liquid handling, chip management and data capture for switchSENSE® measurements. Bespoke electronics manage the electrical actuation of biomolecules on the biochip and measurement of molecular dynamics via time-correlated single photon counting. The instrument also offers the proprietary electrical desorption methodology to adjust capture molecule densities. Instruments are designed for walk-away operation with automated dilution series / liquid handling, temperature managed environments and stability for long overnight / multi-day studies.
Technical Specifications
| Limit of detection | 10 fM |
| Dissociation constant | 50 fM – 1 mM |
| Association rate constant | 1E3 – 1E8 /Ms |
| Dissociation rate constant | 1E-6 – 1E0 /s |
| Hydrodynamic diameter accuracy of | 0.1 nm |
| Temperature | 8° – 75°C (chip), 10° – 40°C (autosampler) |
Key Features
Fully automated switchSENSE® instruments are 96 well plates compatible and manufactured in Germany.
Wide ranging, deep data content on molecular interactions. Binding Kinetics & Affinity | Protein Diameter
Conformational Change | Enzymatic Activity | Bispecific Binders & Avidity | Melting & Thermodynamics | Multimers & Aggregation
Functional Principle of The Unique switchSENSE Technology
Key Industries
- Biopharmaceutical and Biotechnology
- Education & Academics
- Pharmaceutical
Brand
Dynamic Biosensors is a provider of instruments, consumables, and services in the field of analytical systems for the characterization of biomolecules and molecular interactions. They are located in Martinsried, south of Munich, a vital center of Europe‘s biotechnology industry.
