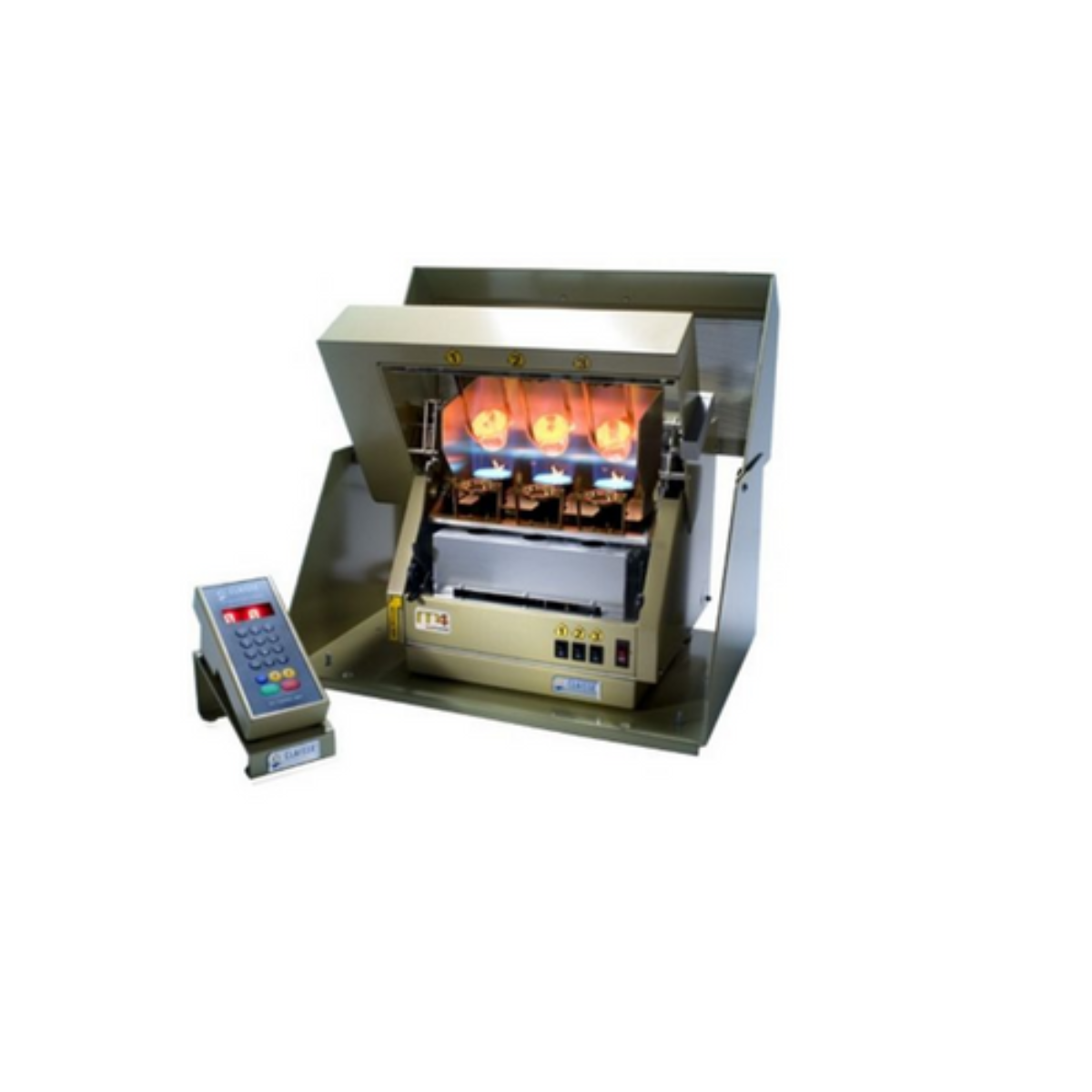

Claisse – Sample preparation – M4™ fusion instrument
The M4 fusion instrument is fully automatic and it can process three samples at a time. This instrument prepares up to 12 glass disks or 24 borate solutions per hour. It leads to superior analytical results since all of its fusion parameters can be modified and because it guarantees high reproducibility. Other benefits of using the M4 instrument include its low maintenance cost, its automatic spark ignition and the fact that it requires no calibration, compressed air or oxygen to operate.
Description
DKSH is the exclusive distributor in Cambodia, Laos, Malaysia, Philippines, Singapore, Thailand and Vietnam.
Technical Specifications
| Electrical | 100, 115, 230 VAC; 100W; 50/60 Hz |
| Dimensions | 45 x 52 x 41 cm |
|---|---|
| Weight | 23 kg (50 lb) |
| Gas | Propane or any other liquid petroleum gases (LPG) only |
| Gas: Input pressure | 9±1 PSI = 62±7 kPa |
| Maximum gas consumption (propane) | 39 ft3/h = 18.4 l/min |
| Maximum heat dissipation (propane) | 98 000 Btu/h = 29 kW/h |
Claisse® M4™ Fusion Instrument
Key Industries
- Powders & Pigments / Coating
- Chemical
- Agriculture
- Aerospace
- Automotive
- Defense
- Biopharmaceutical and Biotechnology
- Die & Mould
- Cosmetics & Personal Care
- Construction
- Education & Academics
- Electronics
- Energy
- Oil & Gas
- Environmental
- Luxury
- Food & Beverage
- Machinery & Manufacturing
- Mining & Minerals
- Medical
- Optical
- Polymers, Plastics and Rubbers
- Paper & Wood
- Railway
- Pharmaceutical
- Semiconductor, Solar & Electronics
- Service
- Wholesale & Retail
Additional information
| Applications | Sample preparation |
|---|---|
| Markets | Singapore |
| Solutions | Sample preparation |
