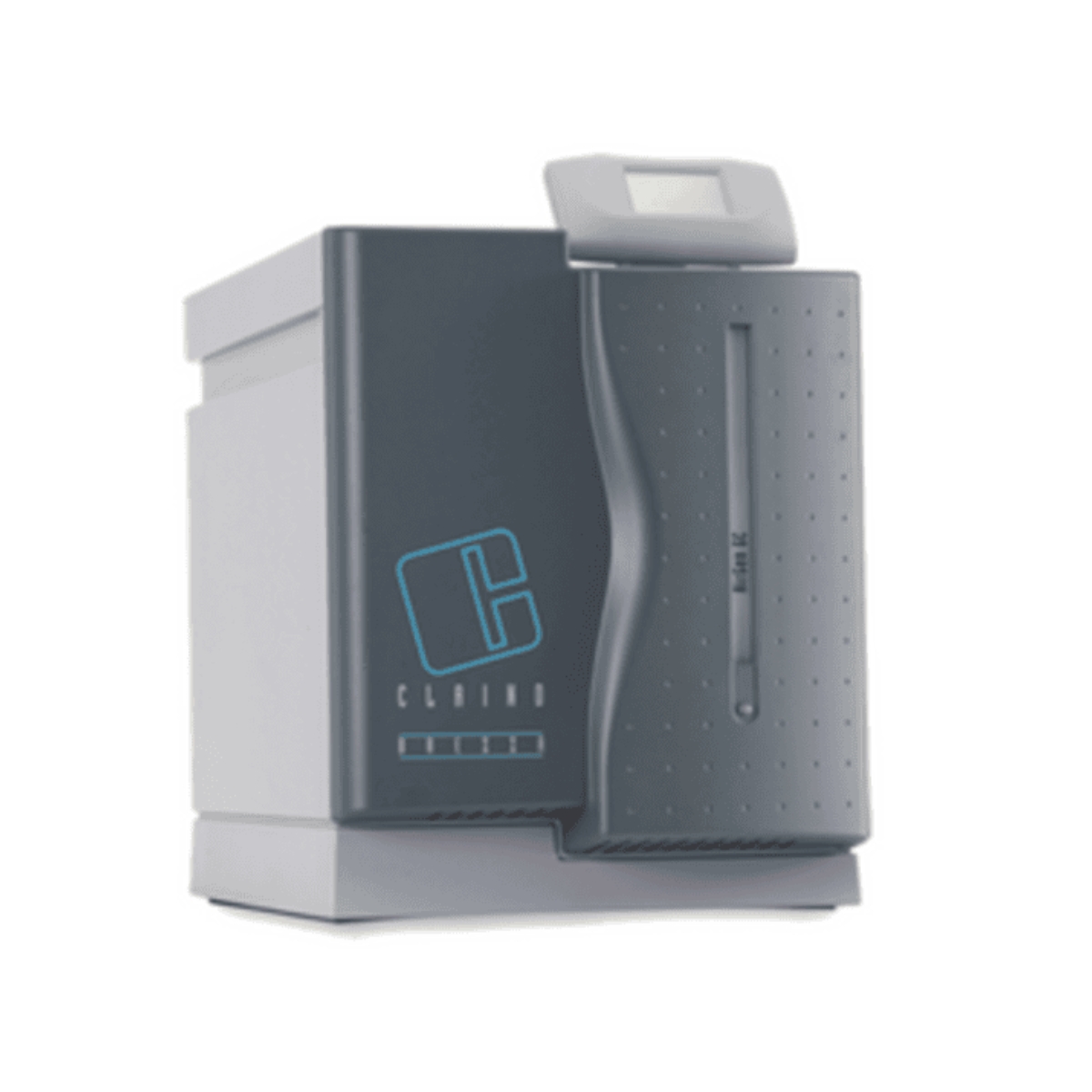

Claind – Nitrogen Generator – NiGen
- High purity nitrogen guaranteed by the PSA technology CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
- UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
- Parallel connection up to 4 stacked generators with tower configuration
- Modular configuration
- Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
- Facility for integration with a Brezza series dedicated air compressor (AirComp)
- CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters
Available Models
Technical Specifications
| Flow rate | 500 Nml/min ± 10% a 2000 m asl |
| Technology | PSA CLAIND |
|---|---|
| Output pressure | 0 – 6 bar/0 – 87 psi ± 3% |
| Purity | > 99,9995 % |
| Moisture | < -50 °C dew-point ATP ± 2°C ATP |
| Air input characteristics | Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min |
| Electrical supply x nigen gc | 115/230 Vac ±10% 60-50 Hz 50 w |
| Electrical supply x nigen gc hc | 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W |
| Index of protection | IP20 |
| Noise | < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle |
| Operating temperature | 5°C – 40°C/40°F – 100°F |
| Environmental humidity | max 90% without condensation |
| Max altitude | 2000 m asl |
| Dimensions | Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” |
| Weight | GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs |
| Pneumatic connections | Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female |
Key Features
- High purity nitrogen guaranteed by the PSA technology
- CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
- UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
- Parallel connection up to 4 stacked generators with tower configuration
- Modular configuration
- Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
- Facility for integration with a Brezza series dedicated air compressor (AirComp)
- CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters
Technical Specifications
| Flow rate | 500 Nml/min ± 10% a 2000 m asl |
| Technology | PSA CLAIND |
|---|---|
| Output pressure | 0 – 6 bar/0 – 87 psi ± 3% |
| Purity | > 99,9995 % |
| Moisture | < -50 °C dew-point ATP ± 2°C ATP |
| Air input characteristics | Particulate ≤ 0,01 mm Oil vapors ≤ 0,01 mg/m3 Moisture ≤ 3° C dew point ATP min pressure: 8 bar Air flow rate: 6 Nl/min |
| Electrical supply x nigen gc | 115/230 Vac ±10% 60-50 Hz 50 w |
| Electrical supply x nigen gc hc | 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W |
| Index of protection | IP20 |
| Noise | < 50 dBA for the 98% of operation time < 60 dBA for 2 sec. each cycle |
| Operating temperature | 5°C – 40°C/40°F – 100°F |
| Environmental humidity | max 90% without condensation |
| Max altitude | 2000 m asl |
| Dimensions | Height: 40 cm + 7 cm/15.8” + 2.8” Width: 38 cm/14.9” Depth: 53 cm/20.8” |
| Weight | GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs |
| Pneumatic connections | Compressed air inlet: G 1/8” female Nitrogen outlet: G 1/8” female |
Key Features
- High purity nitrogen guaranteed by the PSA technology
- CLAIND “Fast Purity” patent that allows the delivery of high purity nitrogen in a very short time
- UHP PSA technology available in a standard version and the HC version which ensures 100% removal of hydrocarbons (HCT< 0,1 ppm for applications with high-sensivity detectors)
- Parallel connection up to 4 stacked generators with tower configuration
- Modular configuration
- Facility to serve up to 12 FIDs/NPDs with makeup gas or up to 7 ECDs oppure 5 S/S
- Facility for integration with a Brezza series dedicated air compressor (AirComp)
- CPU with Touch Screen Display connectable with CAN-BUS to the generators (up to 32 units), allows the monitoring of operational status and menus with report alarms and functioning parameters
Technical Specifications
| Flow rate | 6 Nml/min ± 10% a 2000 m asl |
| Technologies employ | PSA CLAIND |
|---|---|
| Output pressure | 0 – 7 bar/0 – 100 psi ± 3% |
| Purity | > 99,9995 % |
| Oil free compressor | Included |
| Electrical supply | 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W |
| Index of protection | IP20 |
| Noise | < 50 dBA during the stand by of the compressor |
| Operating temperature | 5°C fino 35°C (41°F fino 95°F) |
| Environmental humidity | max 90% without condensation |
| Dimensions | Height: 132 cm/52” Width: 44 cm/17.3” Depth: 110 cm/43.3” |
| Weight | 220 kg/489 lbs |
| Pneumatic connections | Compressed air inlet: G 1/4” female Nitrogen outlet: G 1/4” female |
Key Features
- PSA molecular sieve technology dedicated to offer UHP Nitrogen for GC and ICP
- CLAIND “Fast Purity“ patent that allows the delivery of high-purity nitrogen within 30 minutes
- Built-in compressor oil free including 2 x 50 l. tanks for Compressed Air and Nitrogen
- Highly reliable Air compressor with maintenance required only after 14,000 hours of work
- 2 gas outlets : available: UHP Nitrogen and Oil Free Air
- CPU with Touch Screen Display allows the monitoring of operational status and menus with report alarms and functioning parameters.
- Equipped with full turn wheels for easy moving
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Shipbuilding
- Textile
- Wholesale & Retail
Brand
Established in 1979, Claind produces hydrogen, nitrogen and zero air generators. Its headquarters is in Lenno, on the shores of Lake Como, where all product development, production and administration activities are carried out. The customers who Claind targets can be broken down into three main categories: analysis laboratories, food and beverage companies and laser cutting companies.
Over the years Claind’s staff has received and paid back the confidence of more than 3,000 customers with over 20,000 installations worldwide.
