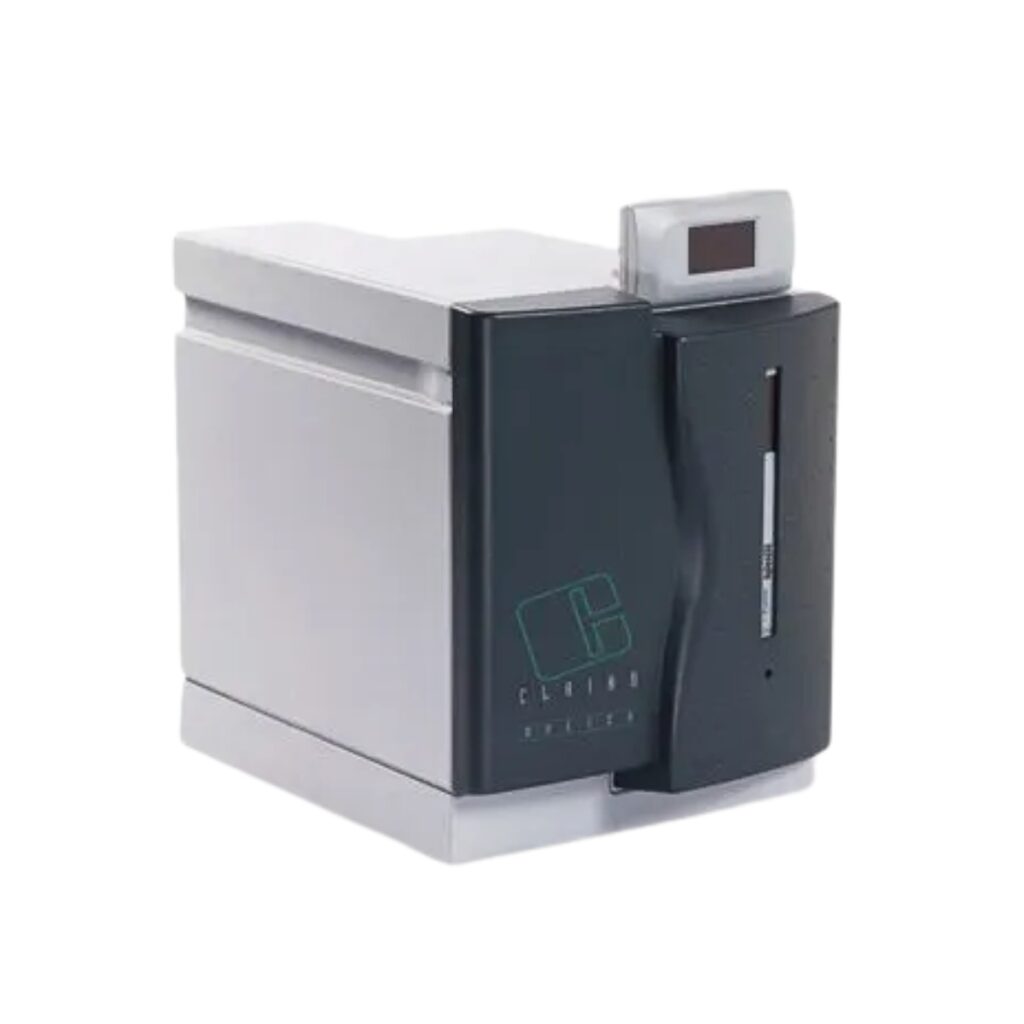

Claind – Hydrogen Generator – HyGen
The Claind Hydrogen Generator is engineered to provide high-purity hydrogen gas at a flow rate of 200 ml/min, catering specifically to gas chromatography applications. This generator is suitable for supplying both carrier gas and flame support gas, ensuring optimal performance in analytical procedures.
Description
The HyGen HT PEM technology for high-purity hydrogen, ideal for gas chromatography. Its modular design and removable water tank ensure easy maintenance and operational efficiency, meeting the demands of modern laboratory applications.
Technical Specifications
| Flow Rate | 200/400/600 Nml/min ± 10% a 2000 m slm (possibility to connect in parallel up to 4 stacked generators) |
| Technologies Employ | HT PEM electrolytic cell |
|---|---|
| Output Pressure | 2 – 8 bar ± 3% /30 – 116 psi ± 3% |
| Purity | 99,9999 % Oxygen < 1 ppm |
| Moisture | Better than -70℃ dew-point ATP at 20℃ |
| Requirements of Demineralized Water | Required resistivity >1 MΩ cm @25°C; ASTM Type II Advised resistivity >10 MΩ cm @25°C; ASTM Type I |
| Electrical Supply | 115/230 VAC (+/- 10%) 50-60 Hz HyGen 200: 110W HyGen 400: 180W HyGen 600: 250W |
| Index Of Protection | IP20 |
| Noise | < 50 dBA |
| Operating Temperature | 5℃ – 35℃ / 40°F – 95°F |
| Environmental Humidity | max 90% without condensation |
| Max Altitude | 2000 m slm |
| Dimensions | Height: 40 cm + 7 cm (base) /15.8” + 2.8” Width: 38 cm/14.9” Width: 38 cm/14.9” |
| Weight | 30 kg/67 lbs |
| Pneumatic Connections | Hydrogen output : G 1/8” female AISI 316 Exhaust: quick coupling for plastic pipe 4 mm Input demineralized water: flexible hose with 1⁄4” connection |
| Warranty | 2 years |
Key Features
- Modular configuration
- Equipped with the innovative HT PEM cell for high purity
- Removable water tank for easy cleaning and water change; automatic water loading pump included for external water supply
- Maintenance: simple substitution of the deionizing bag and drier, only after 50.000l of H2 produced
- CPU with Touch Screen Display connectable with CAN BUS to the generators (up to 32 units), allows the operational status monitor, showing menus with report alarms and functioning parameters
- Hydrogen production proportional to consumption, with the minimum gas storage within the instrument
- CPU equipped with LAN connection
