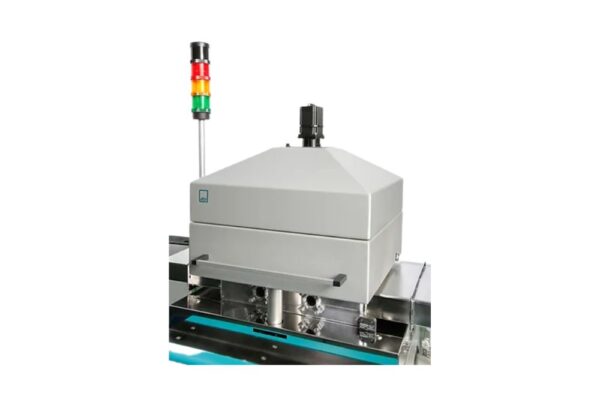

ATV’s approach using the Cold Wall Process Chamber is also applied in the SRO-706 Getter system. This system can be applied for Thermal Getter processes in R&D and Production line applications. The basis for the Getter system is the successful SRO-706 series IR vacuum reflow oven. Common applications are sealing of packages with kovar caps or optical windows for gyroscopes, microbolometer and various MEMS sensors under high vacuum by applying thermal Getter activation.

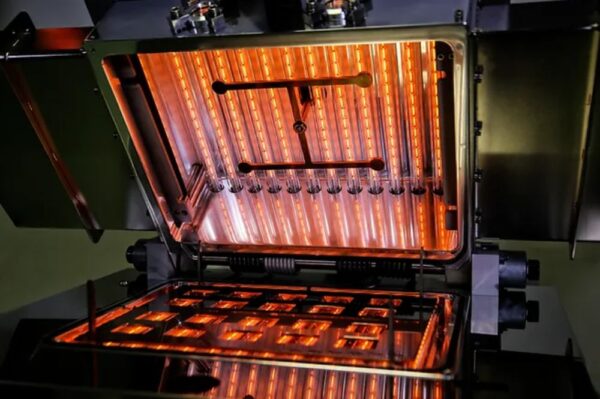

With its proven direct IR heating approach, ATV applies for the SRO-706 Getter system a top and bottom heating. The IR lamp arrays are independently monitored and controlled as 2 separate heating zones. This results that there is an excellent heating uniformity under vacuum when reaching a maximum temperature of 450°C during the Thermal getter process. The sensor or chip temperature remains below 100°C during the getter activation process. Optionally, a mass spectrometer can be added for residual gas analysis during the sealing process.

The SRO-706 Getter is a result of in-depth cooperation with our customer base and listing to the needs of the market as you may expect form ATV.

Key Features

  • Programmable solder reflow oven
  • Thermal reactor
  • High vacuum package lid sealing system
  • Thermal getter activation

Inquiry Now

Overview

Features

Specifications

With its proven direct IR heating approach, ATV applies for the SRO-706 Getter system a top and bottom heating. The IR lamp arrays are independently monitored and controlled as 2 separate heating zones. This results that there is an excellent heating uniformity under vacuum when reaching a maximum temperature of 450°C during the Thermal getter process. The sensor or chip temperature remains below 100°C during the getter activation process. Optionally, a mass spectrometer can be added for residual gas analysis during the sealing process.

The SRO-706 Getter is a result of in-depth cooperation with our customer base and listing to the needs of the market as you may expect form ATV.

Key Features

  • Programmable solder reflow oven
  • Thermal reactor
  • High vacuum package lid sealing system
  • Thermal getter activation

Technical Specification

Footprint960 x 720 x 1340mm (LxWxH)
Weight240kg (minumum configuration)
Working Height950 – 1050mm adjustable
Heated Area313 x 240mm
Chamber Lid Open/ClosingManual open/close; Automatic lock/un-lock
Heating Method​2 IR Lamp arrays within quartz tubes
Cooling Water SupplyCold wall technology: Inlet max. 4bar; diff. pressure min. 2bar
For further details, please refer to enclosed brochure.
